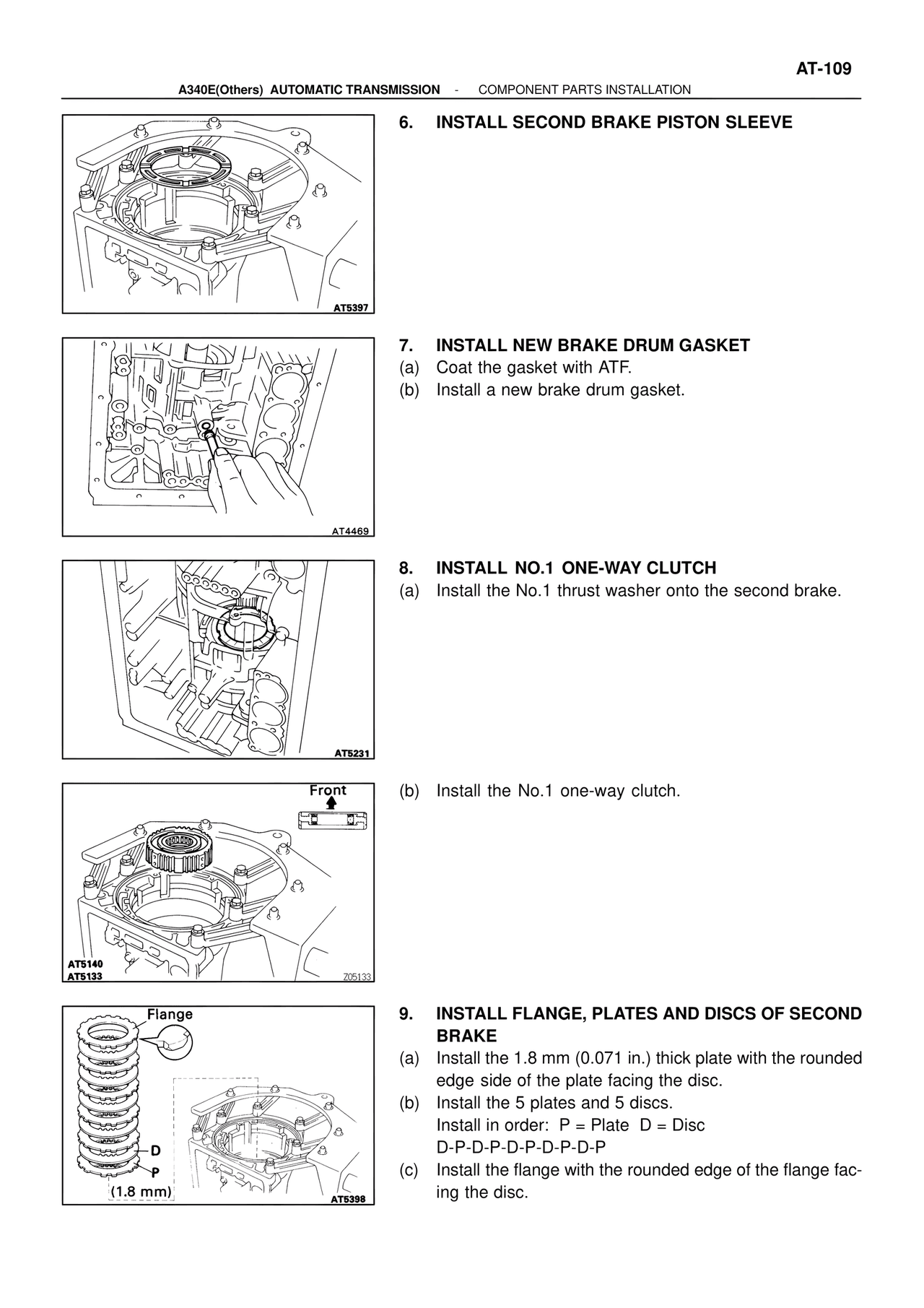

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION

6. INSTALL SECOND BRAKE PISTON SLEEVE

AT5397

7. INSTALL NEW BRAKE DRUM GASKET
(a) Coat the gasket with ATF.
(b) Install a new brake drum gasket.

AT4469

8. INSTALL NO.1 ONE-WAY CLUTCH
(a) Install the No.1 thrust washer onto the second brake.

AT5231

Front

(b) Install the No.1 one-way clutch.

AT5140
AT5133
705133

Flange

D
P
(1.8 mm)

9. INSTALL FLANGE, PLATES AND DISCS OF SECOND BRAKE
(a) Install the 1.8 mm (0.071 in.) thick plate with the rounded edge side of the plate facing the disc.
(b) Install the 5 plates and 5 discs.
Install in order: P = Plate D = Disc
D-P-D-P-D-P-D-P-D-P
(c) Install the flange with the rounded edge of the flange facing the disc.

AT5398
