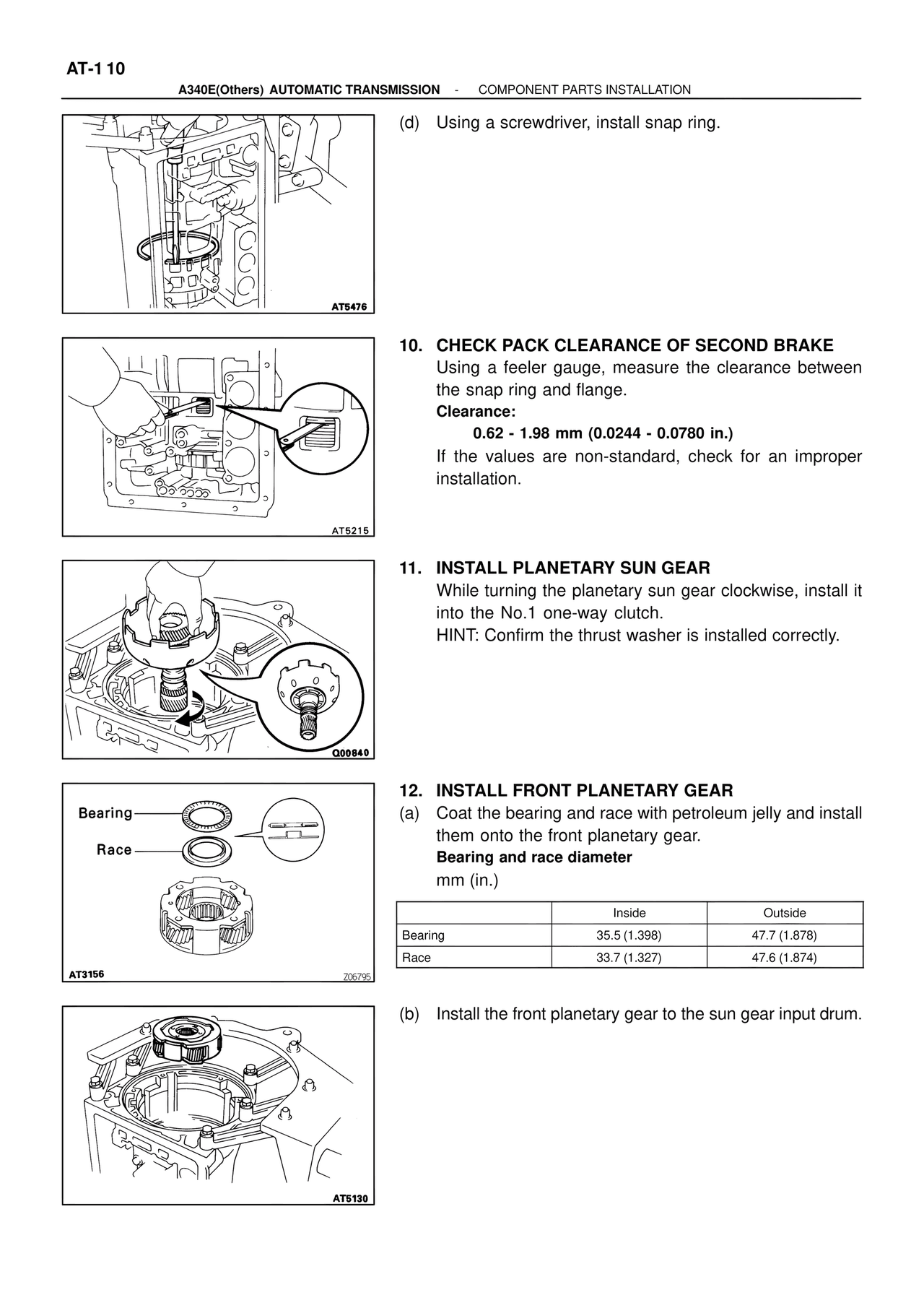

AT-1 10
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
(d) Using a screwdriver, install snap ring.
AT5476
10. CHECK PACK CLEARANCE OF SECOND BRAKE
Using a feeler gauge, measure the clearance between
the snap ring and flange.
Clearance:
0.62 - 1.98 mm (0.0244 - 0.0780 in.)
If the values are non-standard, check for an improper
installation.
AT5215
11. INSTALL PLANETARY SUN GEAR
While turning the planetary sun gear clockwise, install it
into the No.1 one-way clutch.
HINT: Confirm the thrust washer is installed correctly.
Q00840
12. INSTALL FRONT PLANETARY GEAR
(a) Coat the bearing and race with petroleum jelly and install
them onto the front planetary gear.
Bearing and race diameter
mm (in.)
Bearing —
Race —
AT3156 Z06795
Inside Outside
Bearing 35.5 (1.398) 47.7 (1.878)
Race 33.7 (1.327) 47.6 (1.874)
(b) Install the front planetary gear to the sun gear input drum.
AT5130
