AT-1 15
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
Assembled
Bearing and
Race
Race
AT5110

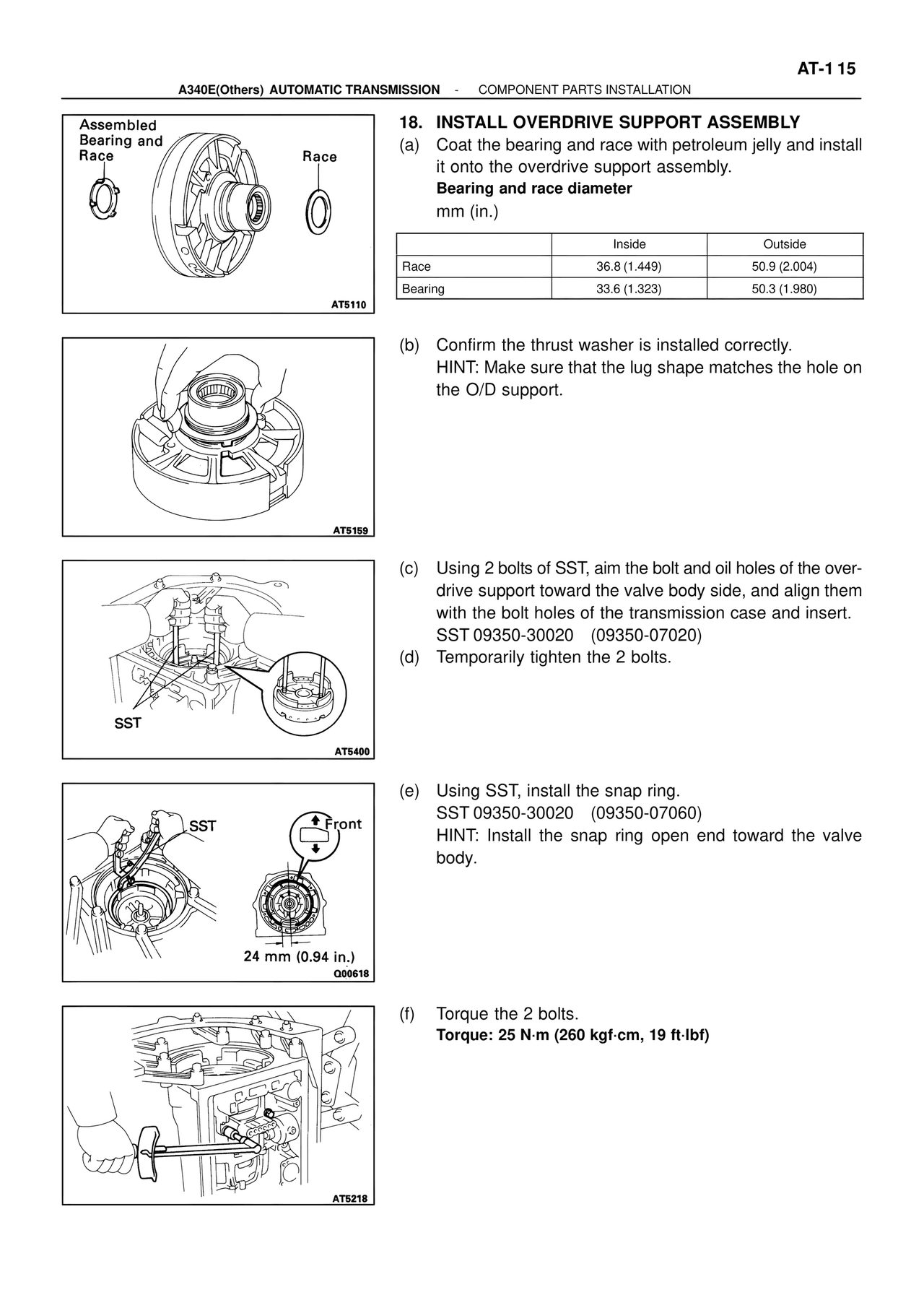

18. INSTALL OVERDRIVE SUPPORT ASSEMBLY
(a) Coat the bearing and race with petroleum jelly and install
it onto the overdrive support assembly.
Bearing and race diameter
mm (in.)
Inside Outside
Race 36.8 (1.449) 50.9 (2.004)
Bearing 33.6 (1.323) 50.3 (1.980)
AT5159
(b) Confirm the thrust washer is installed correctly.
HINT: Make sure that the lug shape matches the hole on
the O/D support.
AT5400
(c) Using 2 bolts of SST, aim the bolt and oil holes of the over-
drive support toward the valve body side, and align them
with the bolt holes of the transmission case and insert.
SST 09350-30020 (09350-07020)
(d) Temporarily tighten the 2 bolts.
SST
Front
24 mm (0.94 in.)
Q00618
(e) Using SST, install the snap ring.
SST 09350-30020 (09350-07060)
HINT: Install the snap ring open end toward the valve
body.
AT5218
(f) Torque the 2 bolts.
Torque: 25 N·m (260 kgf·cm, 19 ft·lbf)
