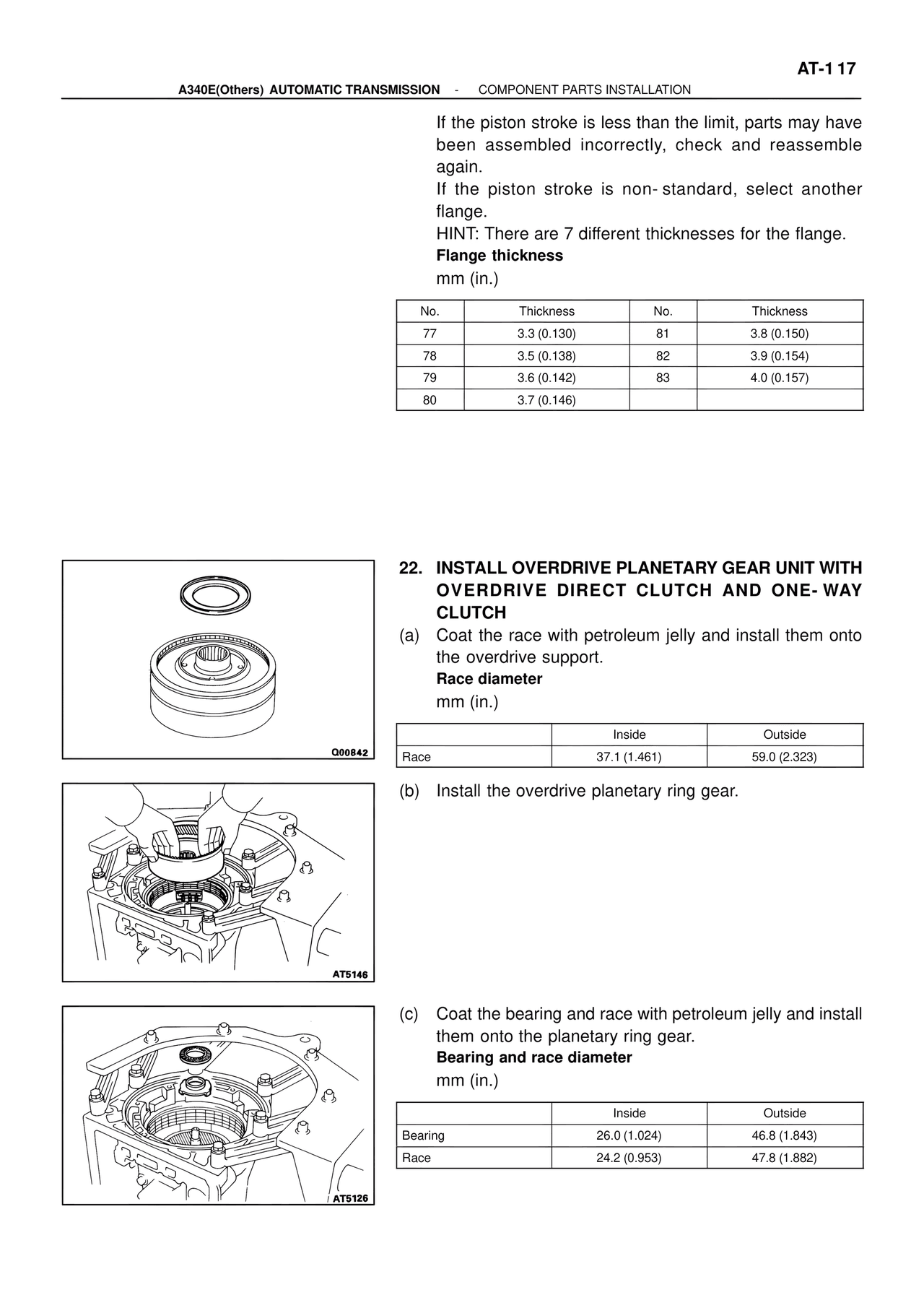

AT-117
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
If the piston stroke is less than the limit, parts may have
been assembled incorrectly, check and reassemble
again.
If the piston stroke is non- standard, select another
flange.
HINT: There are 7 different thicknesses for the flange.
Flange thickness
mm (in.)
No. Thickness No. Thickness
77 3.3 (0.130) 81 3.8 (0.150)
78 3.5 (0.138) 82 3.9 (0.154)
79 3.6 (0.142) 83 4.0 (0.157)
80 3.7 (0.146)
22. INSTALL OVERDRIVE PLANETARY GEAR UNIT WITH
OVERDRIVE DIRECT CLUTCH AND ONE- WAY
CLUTCH
(a) Coat the race with petroleum jelly and install them onto
the overdrive support.
Race diameter
mm (in.)
Inside Outside
Race 37.1 (1.461) 59.0 (2.323)
(b) Install the overdrive planetary ring gear.
(c) Coat the bearing and race with petroleum jelly and install
them onto the planetary ring gear.
Bearing and race diameter
mm (in.)
Inside Outside
Bearing 26.0 (1.024) 46.8 (1.843)
Race 24.2 (0.953) 47.8 (1.882)
Q00842
AT5146
AT5126
