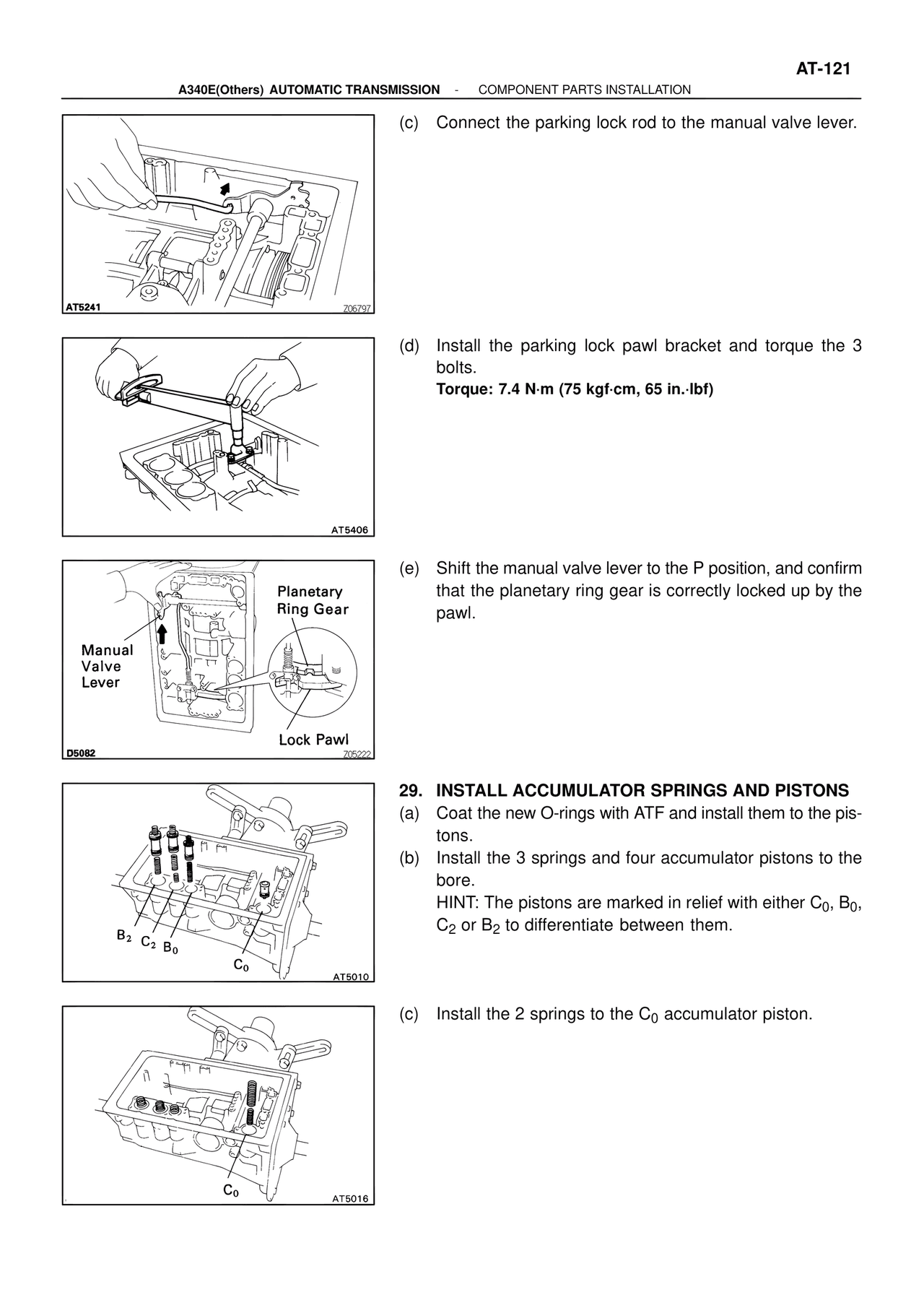

AT-121
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
(c) Connect the parking lock rod to the manual valve lever.
AT5241
Z06797
(d) Install the parking lock pawl bracket and torque the 3 bolts.
Torque: 7.4 N·m (75 kgf·cm, 65 in.·lbf)
AT5406
(e) Shift the manual valve lever to the P position, and confirm that the planetary ring gear is correctly locked up by the pawl.
Planetary Ring Gear
Manual Valve Lever
Lock Pawl
D5082
Z06222
29. INSTALL ACCUMULATOR SPRINGS AND PISTONS
(a) Coat the new O-rings with ATF and install them to the pistons.
(b) Install the 3 springs and four accumulator pistons to the bore.
HINT: The pistons are marked in relief with either C₀, B₀, C₂ or B₂ to differentiate between them.
B₂ C₂ B₀
C₀
AT5010
(c) Install the 2 springs to the C₀ accumulator piston.
C₀
AT5016
