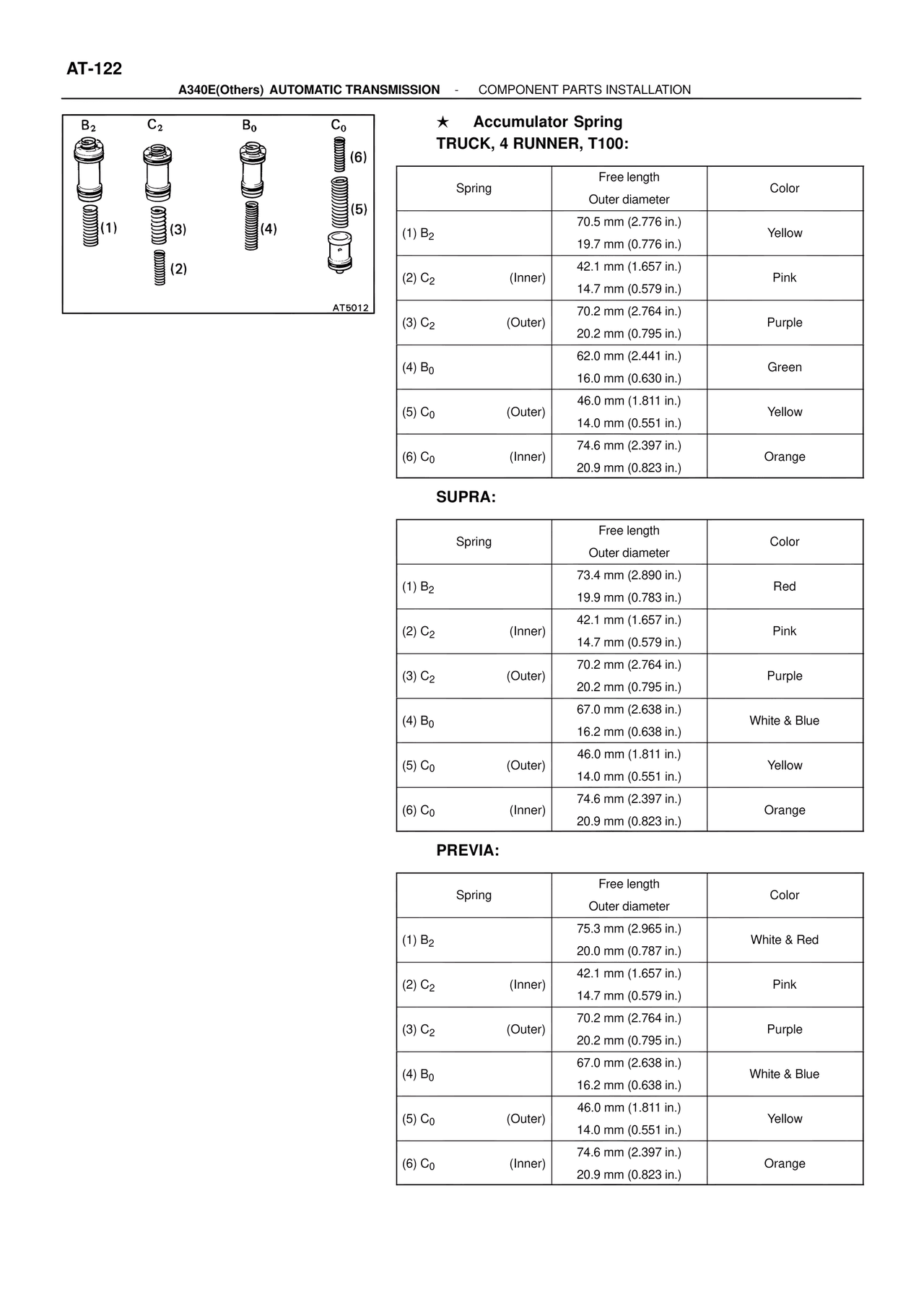

A340E(Others)  AUTOMATIC TRANSMISSION  -  COMPONENT PARTS INSTALLATION

B₂    C₂    B₀    C₀

(6)
(5)
(1)
(3)
(4)
(2)
AT5012

★  Accumulator Spring
TRUCK, 4 RUNNER, T100:

Spring    Free length
Outer diameter    Color

(1) B₂    70.5 mm (2.776 in.)
19.7 mm (0.776 in.)    Yellow

(2) C₂    (Inner)    42.1 mm (1.657 in.)
14.7 mm (0.579 in.)    Pink

(3) C₂    (Outer)    70.2 mm (2.764 in.)
20.2 mm (0.795 in.)    Purple

(4) B₀    62.0 mm (2.441 in.)
16.0 mm (0.630 in.)    Green

(5) C₀    (Outer)    46.0 mm (1.811 in.)
14.0 mm (0.551 in.)    Yellow

(6) C₀    (Inner)    74.6 mm (2.397 in.)
20.9 mm (0.823 in.)    Orange

SUPRA:

Spring    Free length
Outer diameter    Color

(1) B₂    73.4 mm (2.890 in.)
19.9 mm (0.783 in.)    Red

(2) C₂    (Inner)    42.1 mm (1.657 in.)
14.7 mm (0.579 in.)    Pink

(3) C₂    (Outer)    70.2 mm (2.764 in.)
20.2 mm (0.795 in.)    Purple

(4) B₀    67.0 mm (2.638 in.)
16.2 mm (0.638 in.)    White & Blue

(5) C₀    (Outer)    46.0 mm (1.811 in.)
14.0 mm (0.551 in.)    Yellow

(6) C₀    (Inner)    74.6 mm (2.397 in.)
20.9 mm (0.823 in.)    Orange

PREVIA:

Spring    Free length
Outer diameter    Color

(1) B₂    75.3 mm (2.965 in.)
20.0 mm (0.787 in.)    White & Red

(2) C₂    (Inner)    42.1 mm (1.657 in.)
14.7 mm (0.579 in.)    Pink

(3) C₂    (Outer)    70.2 mm (2.764 in.)
20.2 mm (0.795 in.)    Purple

(4) B₀    67.0 mm (2.638 in.)
16.2 mm (0.638 in.)    White & Blue

(5) C₀    (Outer)    46.0 mm (1.811 in.)
14.0 mm (0.551 in.)    Yellow

(6) C₀    (Inner)    74.6 mm (2.397 in.)
20.9 mm (0.823 in.)    Orange
