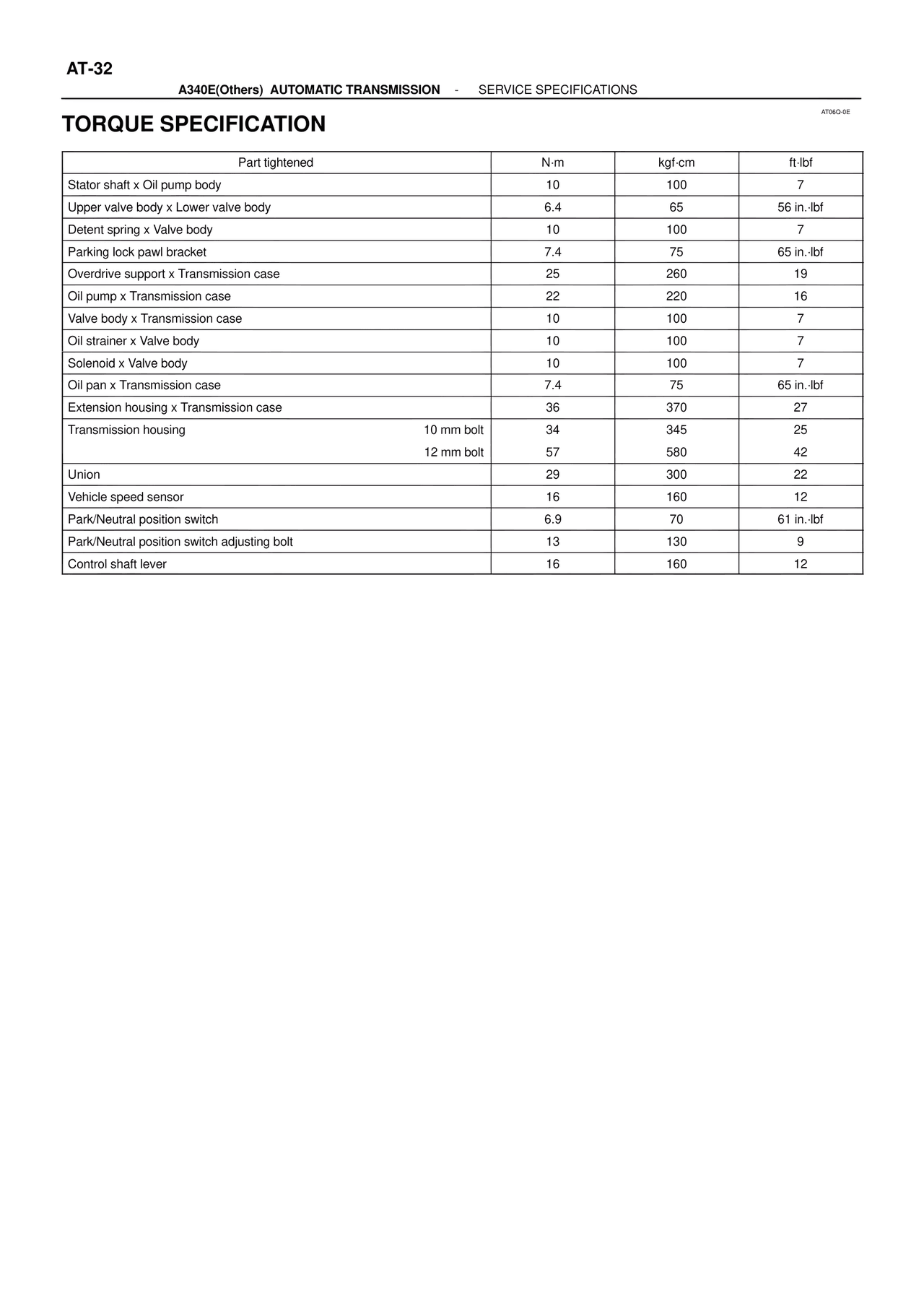

AT-32
A340E(Others) AUTOMATIC TRANSMISSION - SERVICE SPECIFICATIONS
AT06Q-0E
TORQUE SPECIFICATION
Part tightened N·m kgf·cm ft·lbf
Stator shaft x Oil pump body 10 100 7
Upper valve body x Lower valve body 6.4 65 56 in.·lbf
Detent spring x Valve body 10 100 7
Parking lock pawl bracket 7.4 75 65 in.·lbf
Overdrive support x Transmission case 25 260 19
Oil pump x Transmission case 22 220 16
Valve body x Transmission case 10 100 7
Oil strainer x Valve body 10 100 7
Solenoid x Valve body 10 100 7
Oil pan x Transmission case 7.4 75 65 in.·lbf
Extension housing x Transmission case 36 370 27
Transmission housing 10 mm bolt 34 345 25
12 mm bolt 57 580 42
Union 29 300 22
Vehicle speed sensor 16 160 12
Park/Neutral position switch 6.9 70 61 in.·lbf
Park/Neutral position switch adjusting bolt 13 130 9
Control shaft lever 16 160 12
