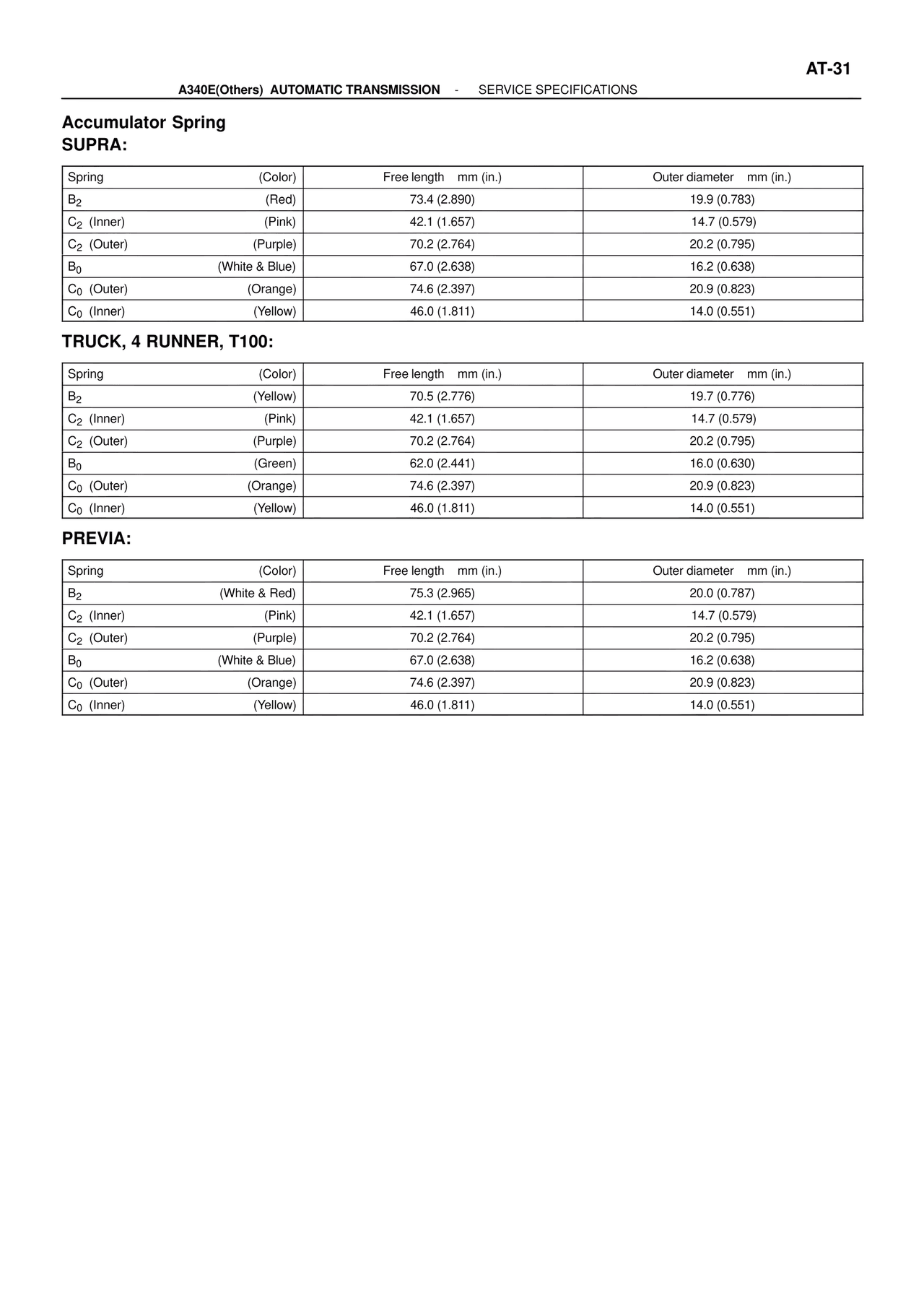

AT-31
A340E(Others) AUTOMATIC TRANSMISSION - SERVICE SPECIFICATIONS
Accumulator Spring
SUPRA:
Spring (Color) Free length mm (in.) Outer diameter mm (in.)
B2 (Red) 73.4 (2.890) 19.9 (0.783)
C2 (Inner) (Pink) 42.1 (1.657) 14.7 (0.579)
C2 (Outer) (Purple) 70.2 (2.764) 20.2 (0.795)
B0 (White & Blue) 67.0 (2.638) 16.2 (0.638)
C0 (Outer) (Orange) 74.6 (2.397) 20.9 (0.823)
C0 (Inner) (Yellow) 46.0 (1.811) 14.0 (0.551)
TRUCK, 4 RUNNER, T100:
Spring (Color) Free length mm (in.) Outer diameter mm (in.)
B2 (Yellow) 70.5 (2.776) 19.7 (0.776)
C2 (Inner) (Pink) 42.1 (1.657) 14.7 (0.579)
C2 (Outer) (Purple) 70.2 (2.764) 20.2 (0.795)
B0 (Green) 62.0 (2.441) 16.0 (0.630)
C0 (Outer) (Orange) 74.6 (2.397) 20.9 (0.823)
C0 (Inner) (Yellow) 46.0 (1.811) 14.0 (0.551)
PREVIA:
Spring (Color) Free length mm (in.) Outer diameter mm (in.)
B2 (White & Red) 75.3 (2.965) 20.0 (0.787)
C2 (Inner) (Pink) 42.1 (1.657) 14.7 (0.579)
C2 (Outer) (Purple) 70.2 (2.764) 20.2 (0.795)
B0 (White & Blue) 67.0 (2.638) 16.2 (0.638)
C0 (Outer) (Orange) 74.6 (2.397) 20.9 (0.823)
C0 (Inner) (Yellow) 46.0 (1.811) 14.0 (0.551)
