AT-2
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - DESCRIPTION

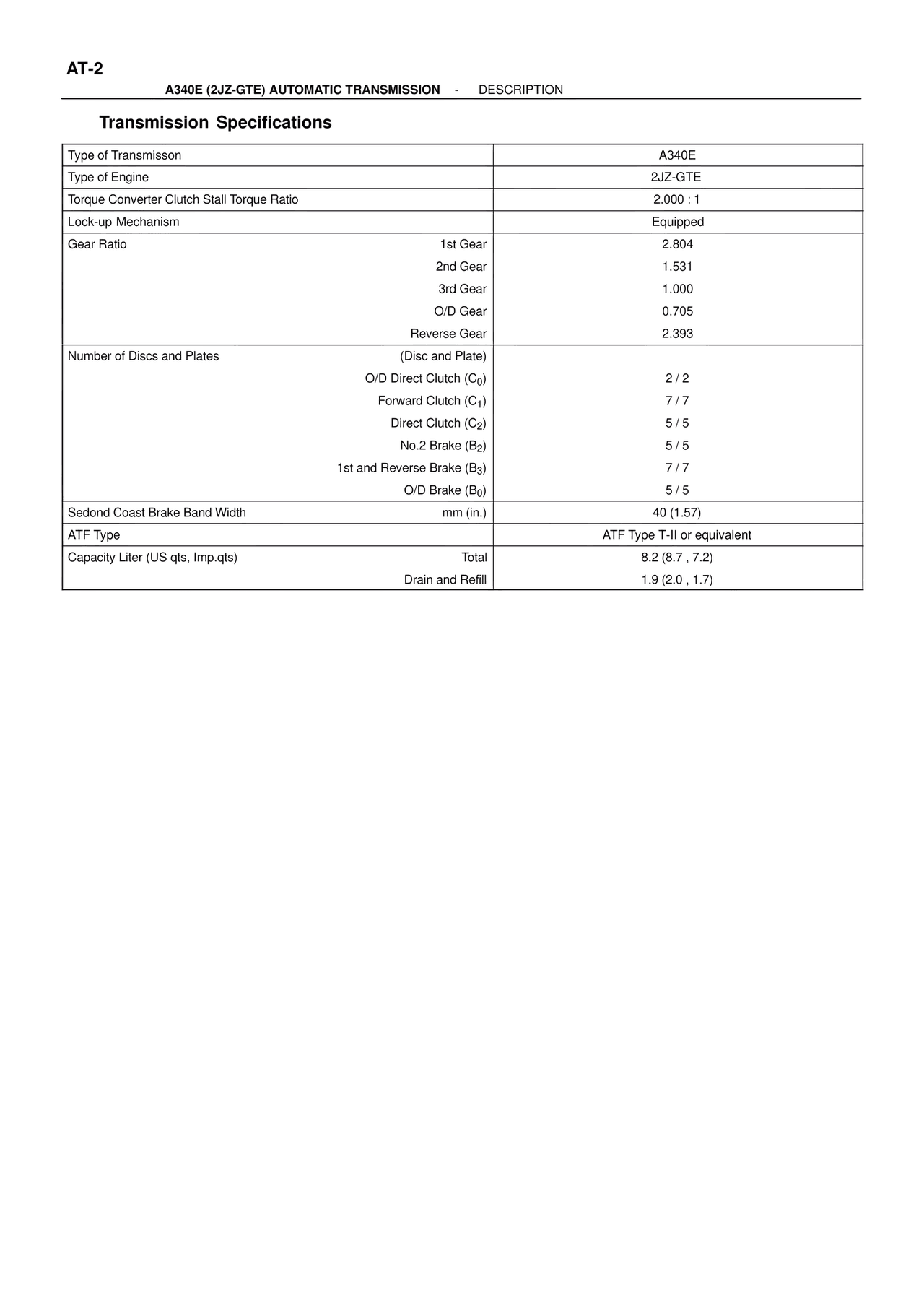

Transmission Specifications
Type of Transmisson A340E
Type of Engine 2JZ-GTE
Torque Converter Clutch Stall Torque Ratio 2.000 : 1
Lock-up Mechanism Equipped
Gear Ratio 1st Gear 2.804
2nd Gear 1.531
3rd Gear 1.000
O/D Gear 0.705
Reverse Gear 2.393
Number of Discs and Plates (Disc and Plate)
O/D Direct Clutch (C0) 2 / 2
Forward Clutch (C1) 7 / 7
Direct Clutch (C2) 5 / 5
No.2 Brake (B2) 5 / 5
1st and Reverse Brake (B3) 7 / 7
O/D Brake (B0) 5 / 5
Sedond Coast Brake Band Width mm (in.) 40 (1.57)
ATF Type ATF Type T-II or equivalent
Capacity Liter (US qts, Imp.qts) Total 8.2 (8.7 , 7.2)
Drain and Refill 1.9 (2.0 , 1.7)
