AT-3

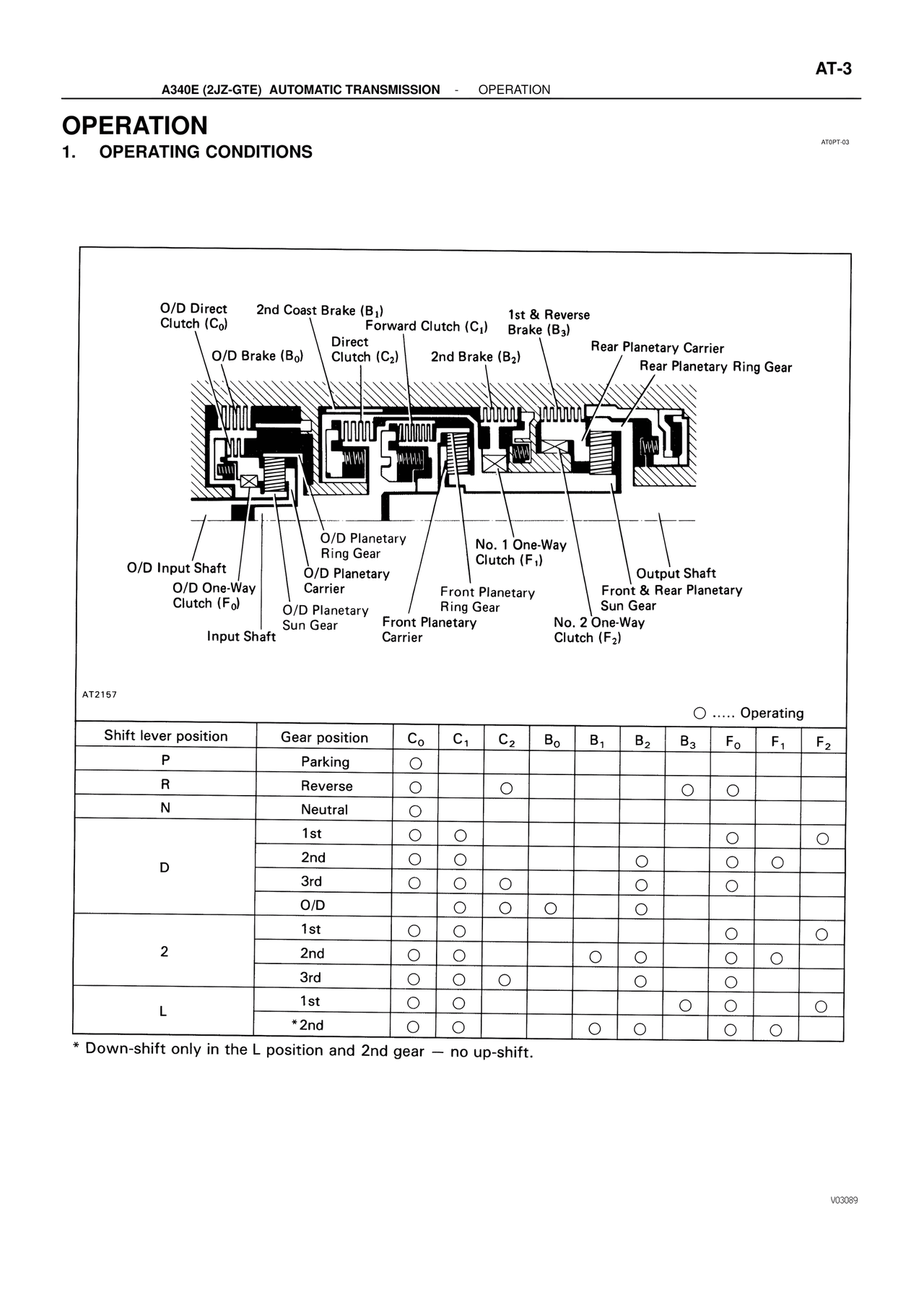

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OPERATION
OPERATION
1. OPERATING CONDITIONS
AT0PT-03
O/D Direct
Clutch (C₀)
2nd Coast Brake (B₁)
Forward Clutch (C₁)
1st & Reverse
Brake (B₃)
O/D Brake (B₀)
Direct
Clutch (C₂)
2nd Brake (B₂)
Rear Planetary Carrier
Rear Planetary Ring Gear
O/D Planetary
Ring Gear
No. 1 One-Way
Clutch (F₁)
O/D Input Shaft
O/D Planetary
Carrier
Output Shaft
O/D One-Way
Clutch (F₀)
Front & Rear Planetary
Sun Gear
O/D Planetary
Sun Gear
Front Planetary
Ring Gear
Front Planetary
Carrier
No. 2 One-Way
Clutch (F₂)
Input Shaft
AT2157
O ..... Operating
Shift lever position | Gear position | C₀ | C₁ | C₂ | B₀ | B₁ | B₂ | B₃ | F₀ | F₁ | F₂
P | Parking | ○ | | | | | | | | |
R | Reverse | ○ | | ○ | | | | ○ | ○ | |
N | Neutral | ○ | | | | | | | | |
D | 1st | ○ | ○ | | | | | | ○ | | ○
D | 2nd | ○ | ○ | | | | ○ | | ○ | ○ |
D | 3rd | ○ | ○ | ○ | | | ○ | | ○ | |
D | O/D | | ○ | ○ | ○ | | ○ | | | |
2 | 1st | ○ | ○ | | | | | | ○ | | ○
2 | 2nd | ○ | ○ | | | ○ | ○ | | ○ | ○ |
2 | 3rd | ○ | ○ | ○ | | | ○ | | ○ | |
L | 1st | ○ | ○ | | | | | ○ | ○ | | ○
L | *2nd | ○ | ○ | | | ○ | ○ | | ○ | ○ |
* Down-shift only in the L position and 2nd gear — no up-shift.
V03089
