AT-13

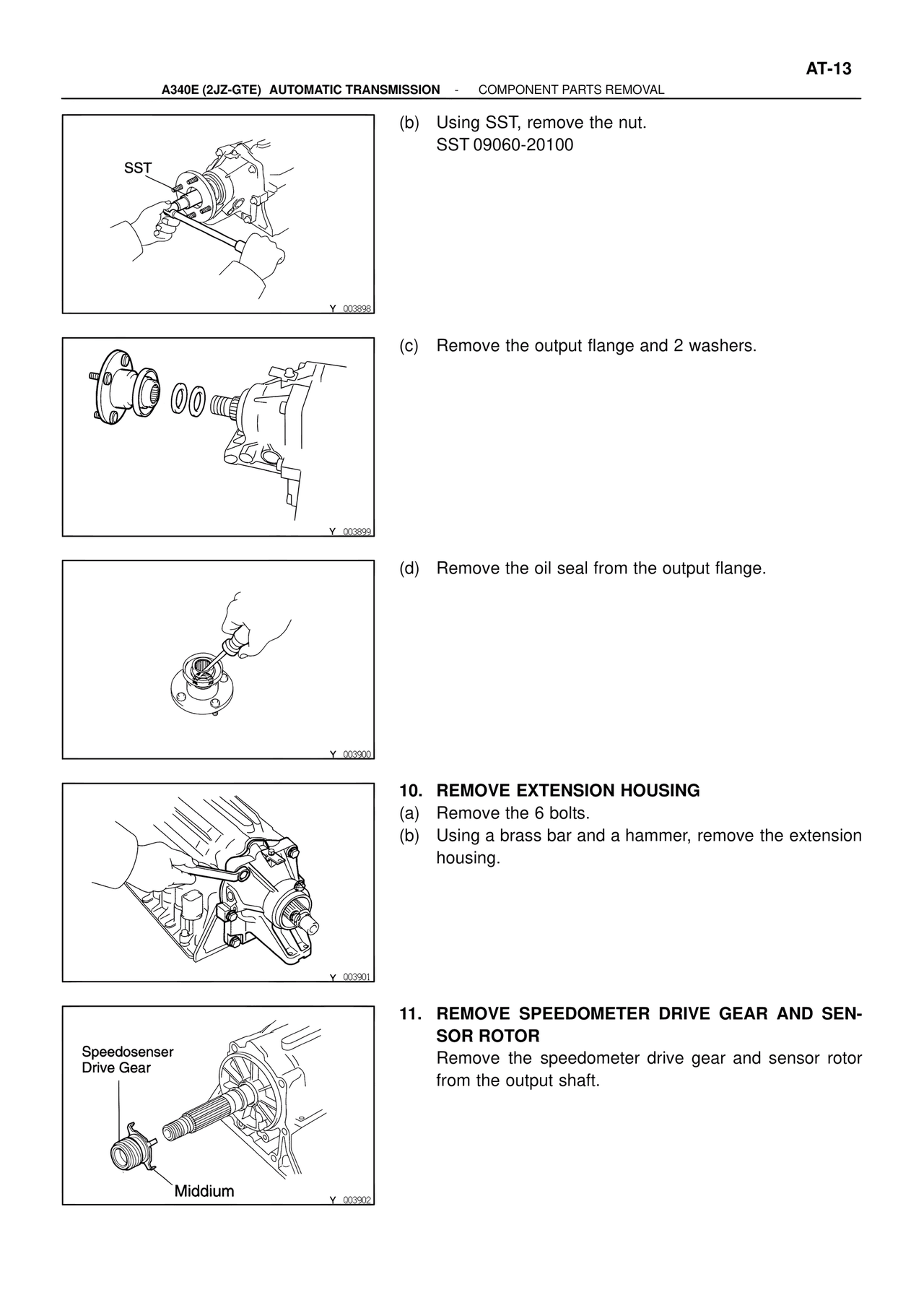

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
SST
(b) Using SST, remove the nut.
SST 09060-20100
Y 003898
(c) Remove the output flange and 2 washers.
Y 003899
(d) Remove the oil seal from the output flange.
Y 003900
10. REMOVE EXTENSION HOUSING
(a) Remove the 6 bolts.
(b) Using a brass bar and a hammer, remove the extension
housing.
Y 003901
Speedosenser
Drive Gear
Middum
Y 003902
11. REMOVE SPEEDOMETER DRIVE GEAR AND SEN-
SOR ROTOR
Remove the speedometer drive gear and sensor rotor
from the output shaft.
