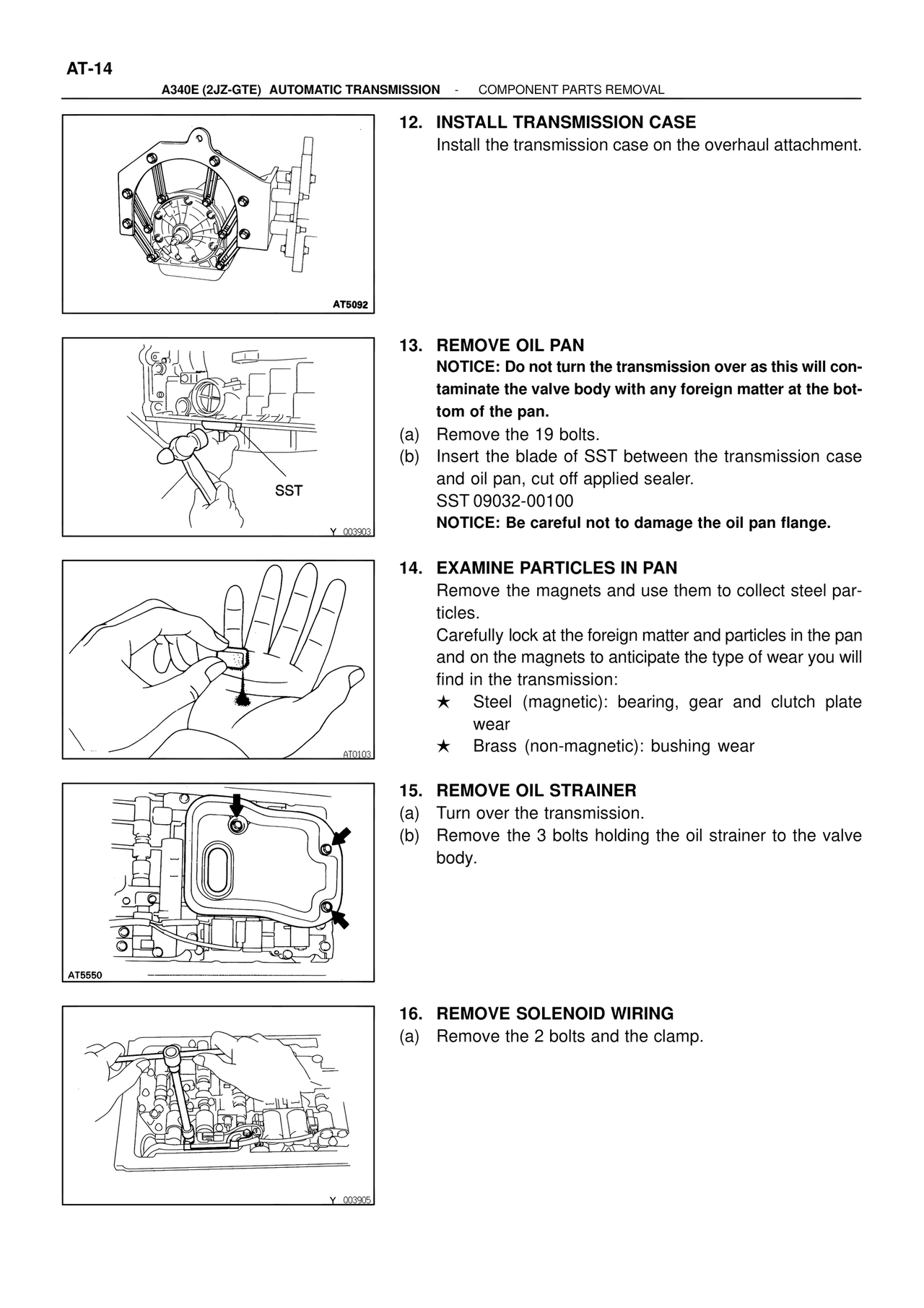

AT-14 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL AT5092 12. INSTALL TRANSMISSION CASE Install the transmission case on the overhaul attachment. SST Y 003903 13. REMOVE OIL PAN NOTICE: Do not turn the transmission over as this will contaminate the valve body with any foreign matter at the bottom of the pan. (a) Remove the 19 bolts. (b) Insert the blade of SST between the transmission case and oil pan, cut off applied sealer. SST 09032-00100 NOTICE: Be careful not to damage the oil pan flange. AT0103 14. EXAMINE PARTICLES IN PAN Remove the magnets and use them to collect steel particles. Carefully lock at the foreign matter and particles in the pan and on the magnets to anticipate the type of wear you will find in the transmission: ★ Steel (magnetic): bearing, gear and clutch plate wear ★ Brass (non-magnetic): bushing wear AT5550 15. REMOVE OIL STRAINER (a) Turn over the transmission. (b) Remove the 3 bolts holding the oil strainer to the valve body. Y 003905 16. REMOVE SOLENOID WIRING (a) Remove the 2 bolts and the clamp.
