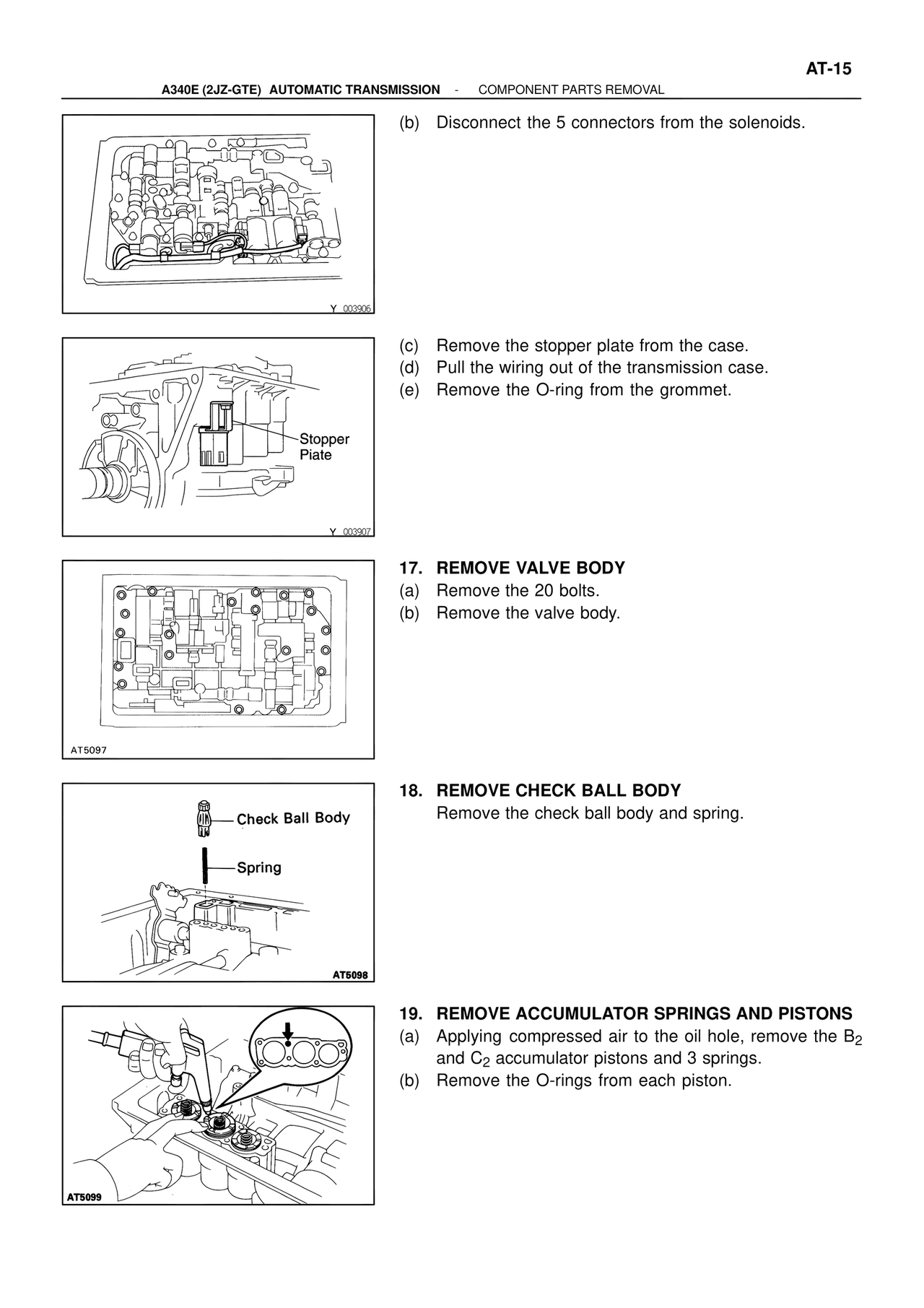

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
(b) Disconnect the 5 connectors from the solenoids.
Y 003906
(c) Remove the stopper plate from the case.
(d) Pull the wiring out of the transmission case.
(e) Remove the O-ring from the grommet.
Stopper
Plate
Y 003907
17. REMOVE VALVE BODY
(a) Remove the 20 bolts.
(b) Remove the valve body.
AT5097
18. REMOVE CHECK BALL BODY
Remove the check ball body and spring.
Check Ball Body
Spring
AT5098
19. REMOVE ACCUMULATOR SPRINGS AND PISTONS
(a) Applying compressed air to the oil hole, remove the B2
and C2 accumulator pistons and 3 springs.
(b) Remove the O-rings from each piston.
AT5099
