AT-18

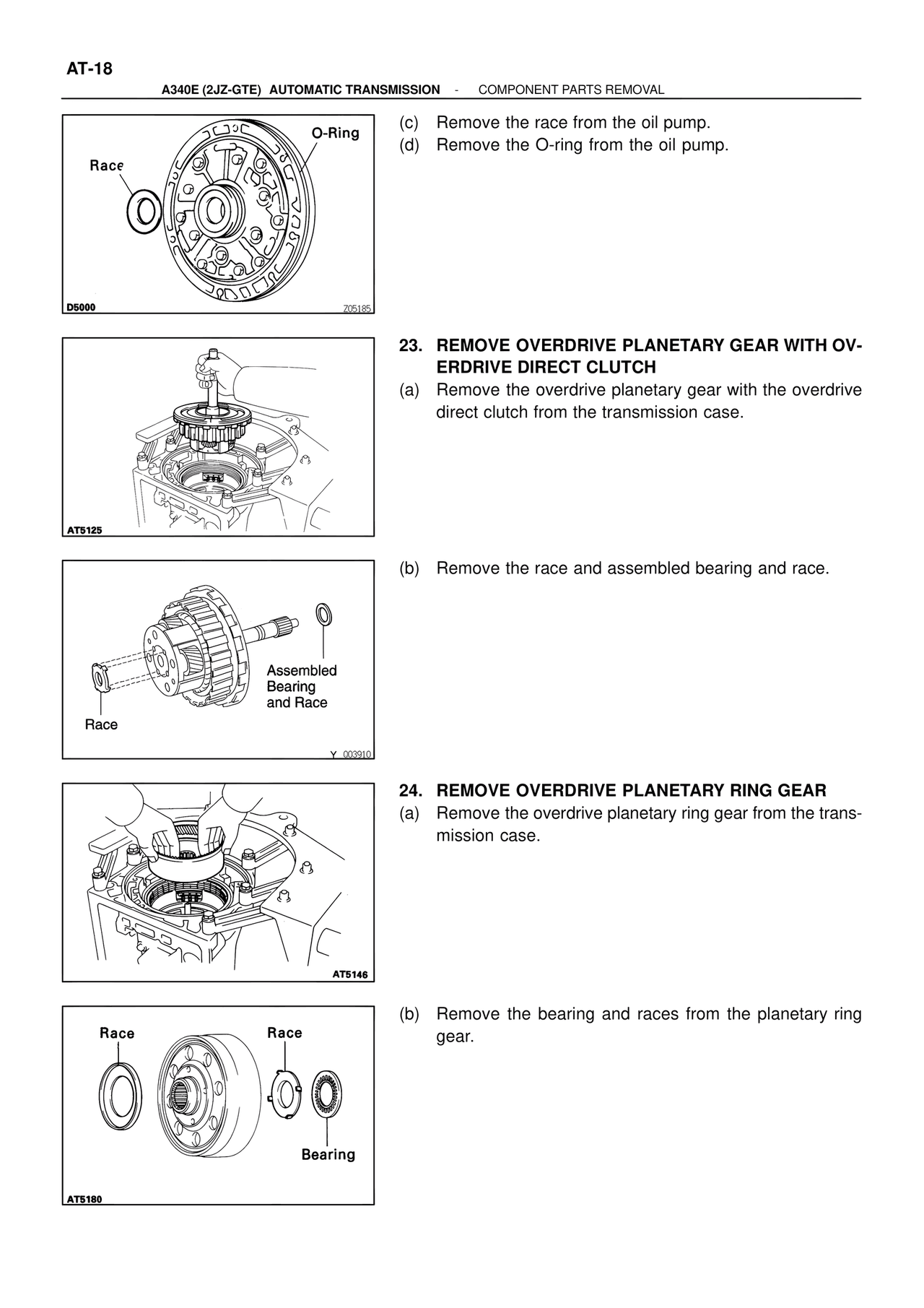

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
O-Ring
Race
D5000
Z05185
(c) Remove the race from the oil pump.
(d) Remove the O-ring from the oil pump.
AT5125
23. REMOVE OVERDRIVE PLANETARY GEAR WITH OV-
ERDRIVE DIRECT CLUTCH
(a) Remove the overdrive planetary gear with the overdrive
direct clutch from the transmission case.
Assembled
Bearing
and Race
Race
Y 003910
(b) Remove the race and assembled bearing and race.
AT5146
24. REMOVE OVERDRIVE PLANETARY RING GEAR
(a) Remove the overdrive planetary ring gear from the trans-
mission case.
Race Race
Bearing
AT5180
(b) Remove the bearing and races from the planetary ring
gear.
