AT-19

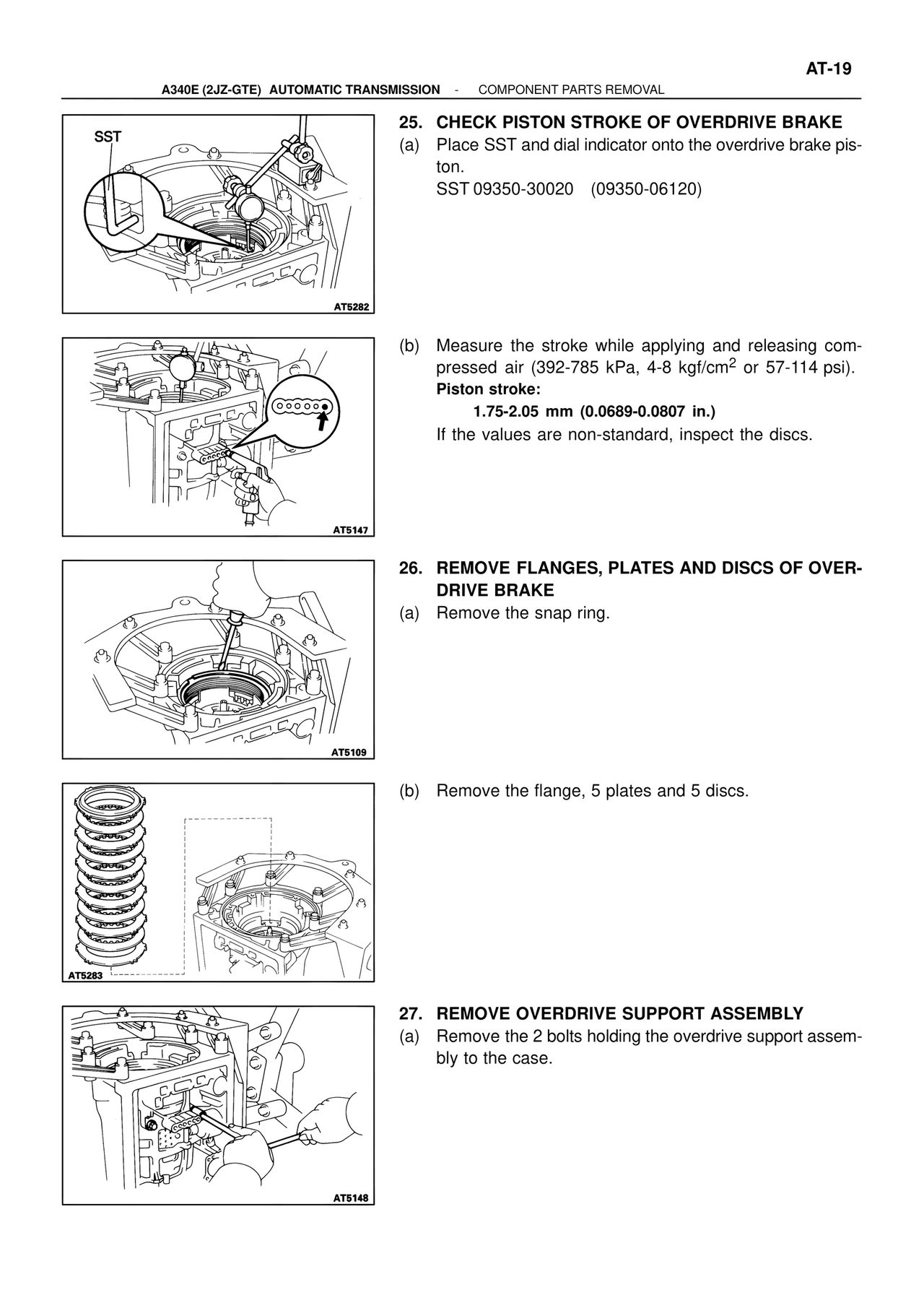

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
SST
AT5282
AT5147
AT5109
AT5283
AT5148
25. CHECK PISTON STROKE OF OVERDRIVE BRAKE
(a) Place SST and dial indicator onto the overdrive brake piston.
SST 09350-30020 (09350-06120)
(b) Measure the stroke while applying and releasing compressed air (392-785 kPa, 4-8 kgf/cm2 or 57-114 psi).
Piston stroke:
1.75-2.05 mm (0.0689-0.0807 in.)
If the values are non-standard, inspect the discs.
26. REMOVE FLANGES, PLATES AND DISCS OF OVERDRIVE BRAKE
(a) Remove the snap ring.
(b) Remove the flange, 5 plates and 5 discs.
27. REMOVE OVERDRIVE SUPPORT ASSEMBLY
(a) Remove the 2 bolts holding the overdrive support assembly to the case.
