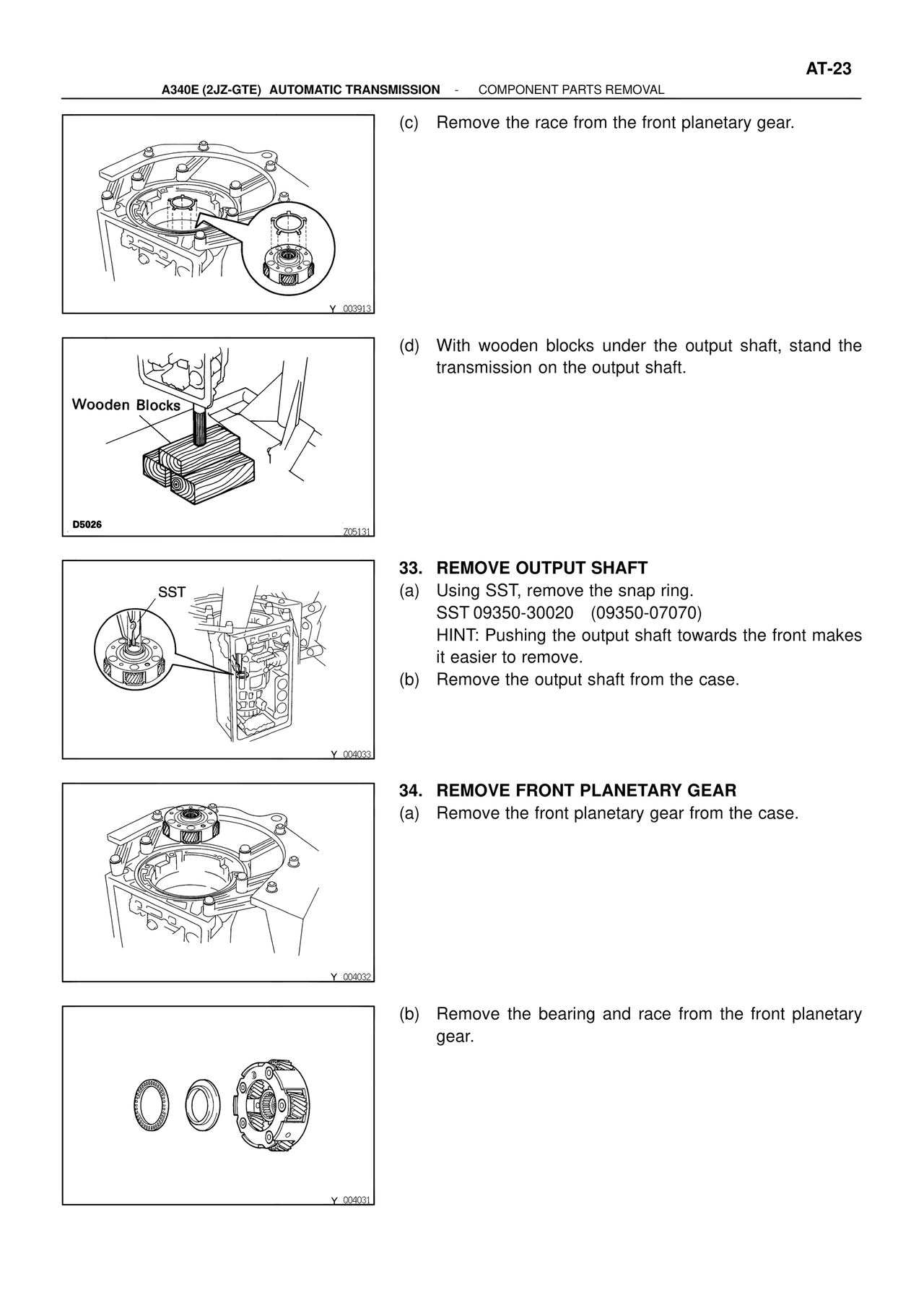

AT-23
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
(c) Remove the race from the front planetary gear.
Y 003913
Wooden Blocks
(d) With wooden blocks under the output shaft, stand the
transmission on the output shaft.
D5026
Z05131
SST
33. REMOVE OUTPUT SHAFT
(a) Using SST, remove the snap ring.
SST 09350-30020 (09350-07070)
HINT: Pushing the output shaft towards the front makes
it easier to remove.
(b) Remove the output shaft from the case.
Y 004033
34. REMOVE FRONT PLANETARY GEAR
(a) Remove the front planetary gear from the case.
Y 004032
(b) Remove the bearing and race from the front planetary
gear.
Y 004031
