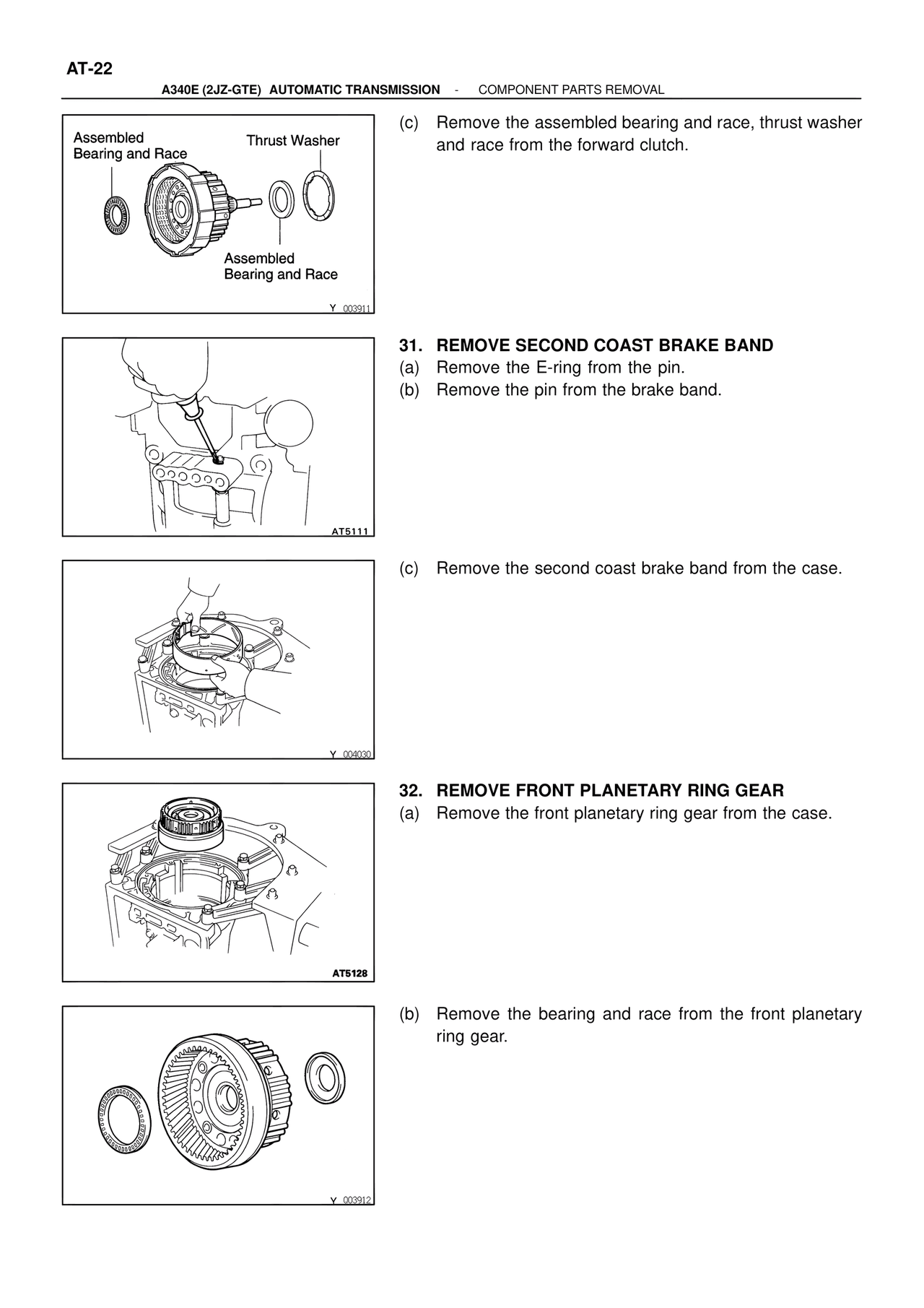

AT-22
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
Assembled
Bearing and Race
Thrust Washer
Assembled
Bearing and Race
Y 003911
(c) Remove the assembled bearing and race, thrust washer
and race from the forward clutch.
31. REMOVE SECOND COAST BRAKE BAND
(a) Remove the E-ring from the pin.
(b) Remove the pin from the brake band.
AT5111
(c) Remove the second coast brake band from the case.
Y 004030
32. REMOVE FRONT PLANETARY RING GEAR
(a) Remove the front planetary ring gear from the case.
AT5128
(b) Remove the bearing and race from the front planetary
ring gear.
Y 003912
