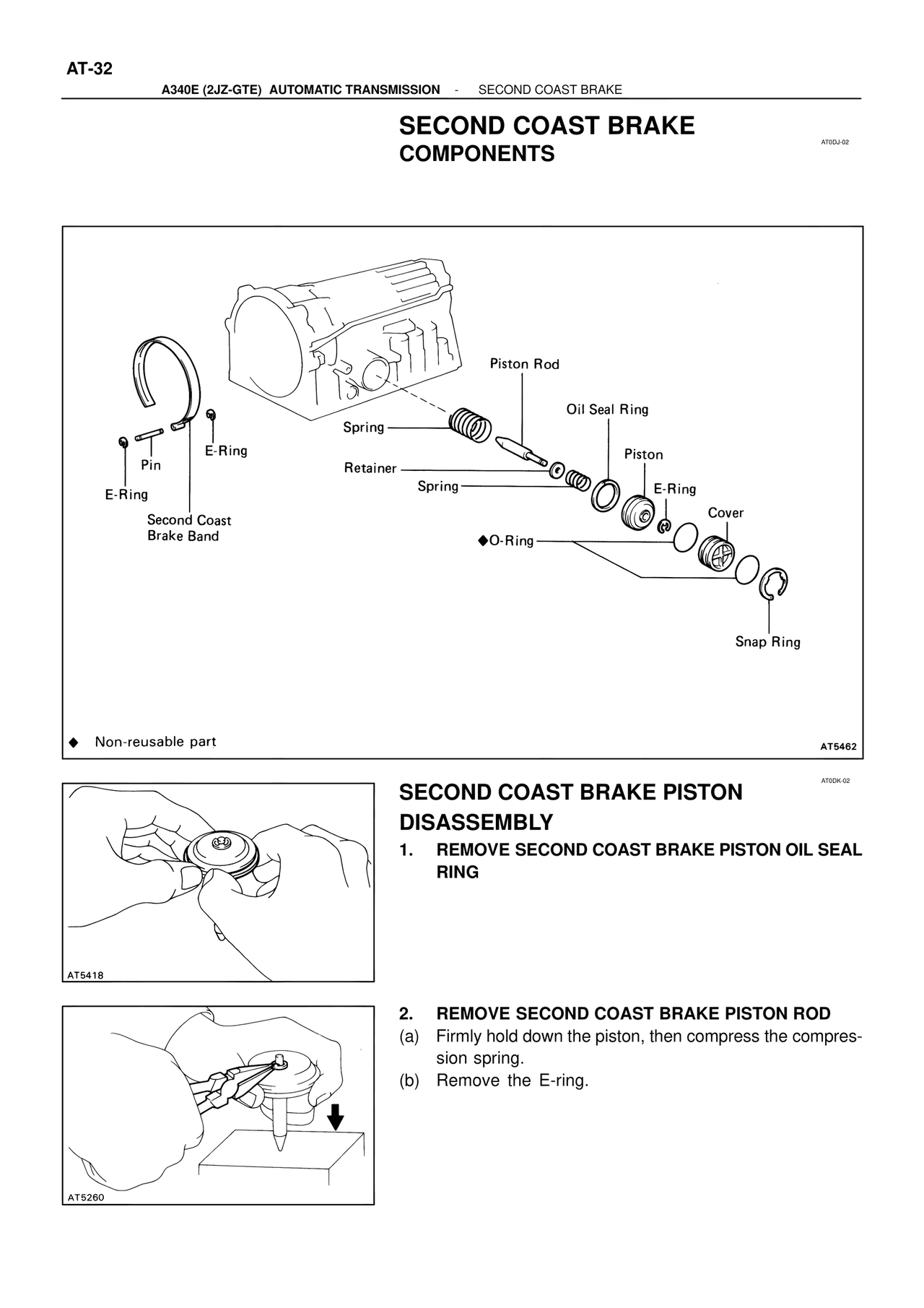

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - SECOND COAST BRAKE

SECOND COAST BRAKE
COMPONENTS
AT0DJ-02

Piston Rod
Oil Seal Ring
Spring
Piston
E-Ring
Retainer
Spring
E-Ring
Cover
Pin
E-Ring
◆O-Ring
Second Coast
Brake Band
Snap Ring

◆ Non-reusable part
AT5462

AT0DK-02
SECOND COAST BRAKE PISTON
DISSASSEMBLY
1. REMOVE SECOND COAST BRAKE PISTON OIL SEAL
RING

AT5418

2. REMOVE SECOND COAST BRAKE PISTON ROD
(a) Firmly hold down the piston, then compress the compression spring.
(b) Remove the E-ring.

AT5260
