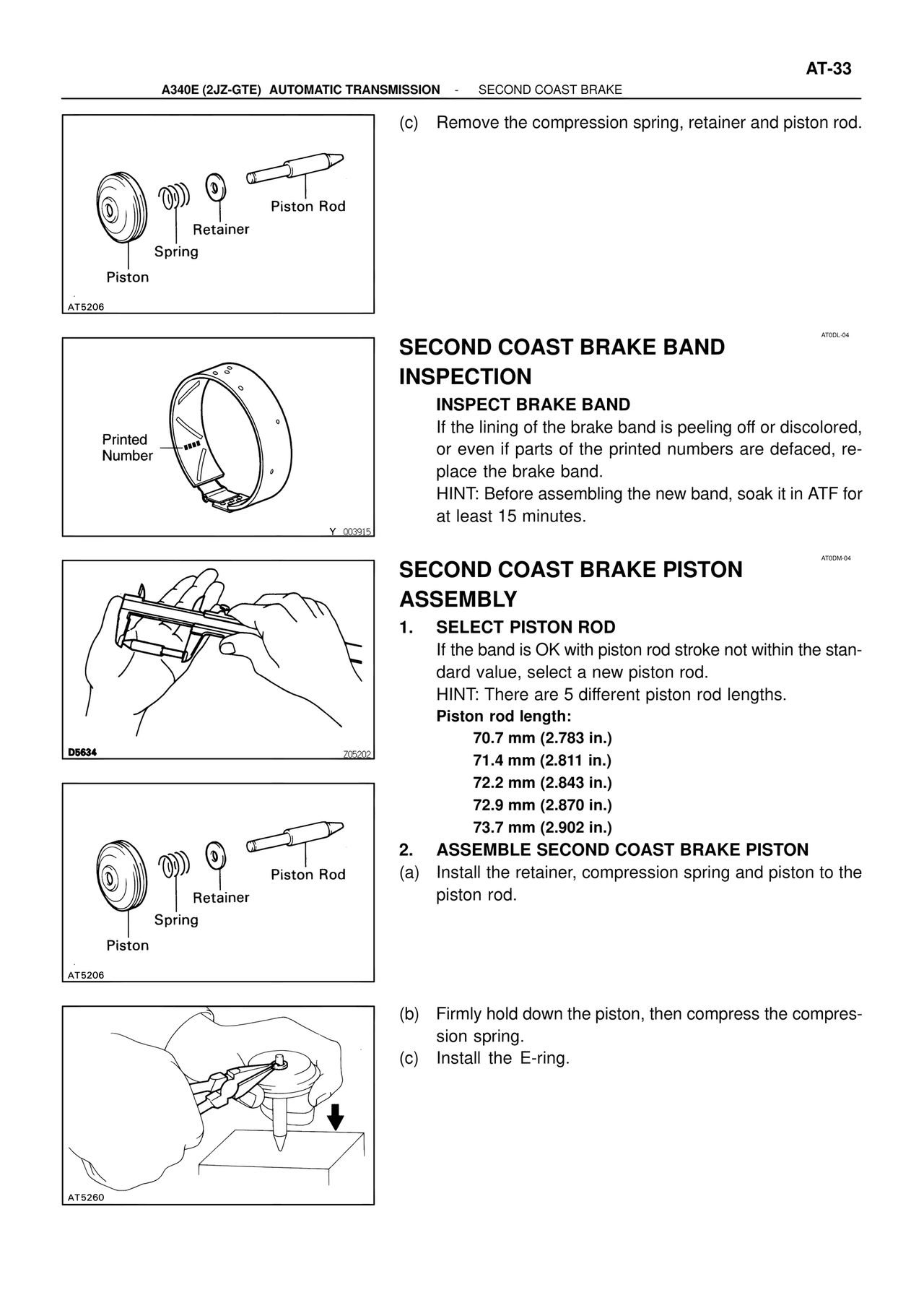

AT-33 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - SECOND COAST BRAKE (c) Remove the compression spring, retainer and piston rod. Piston Rod Retainer Spring Piston AT5206 AT0DL-04 SECOND COAST BRAKE BAND INSPECTION Printed Number Y 003915 INSPECT BRAKE BAND If the lining of the brake band is peeling off or discolored, or even if parts of the printed numbers are defaced, re- place the brake band. HINT: Before assembling the new band, soak it in ATF for at least 15 minutes. D5634 Z05202 AT0DM-04 SECOND COAST BRAKE PISTON ASSEMBLY 1. SELECT PISTON ROD If the band is OK with piston rod stroke not within the stan- dard value, select a new piston rod. HINT: There are 5 different piston rod lengths. Piston rod length: 70.7 mm (2.783 in.) 71.4 mm (2.811 in.) 72.2 mm (2.843 in.) 72.9 mm (2.870 in.) 73.7 mm (2.902 in.) Piston Rod Retainer Spring Piston AT5206 2. ASSEMBLE SECOND COAST BRAKE PISTON (a) Install the retainer, compression spring and piston to the piston rod. AT5260 (b) Firmly hold down the piston, then compress the compres- sion spring. (c) Install the E-ring.
