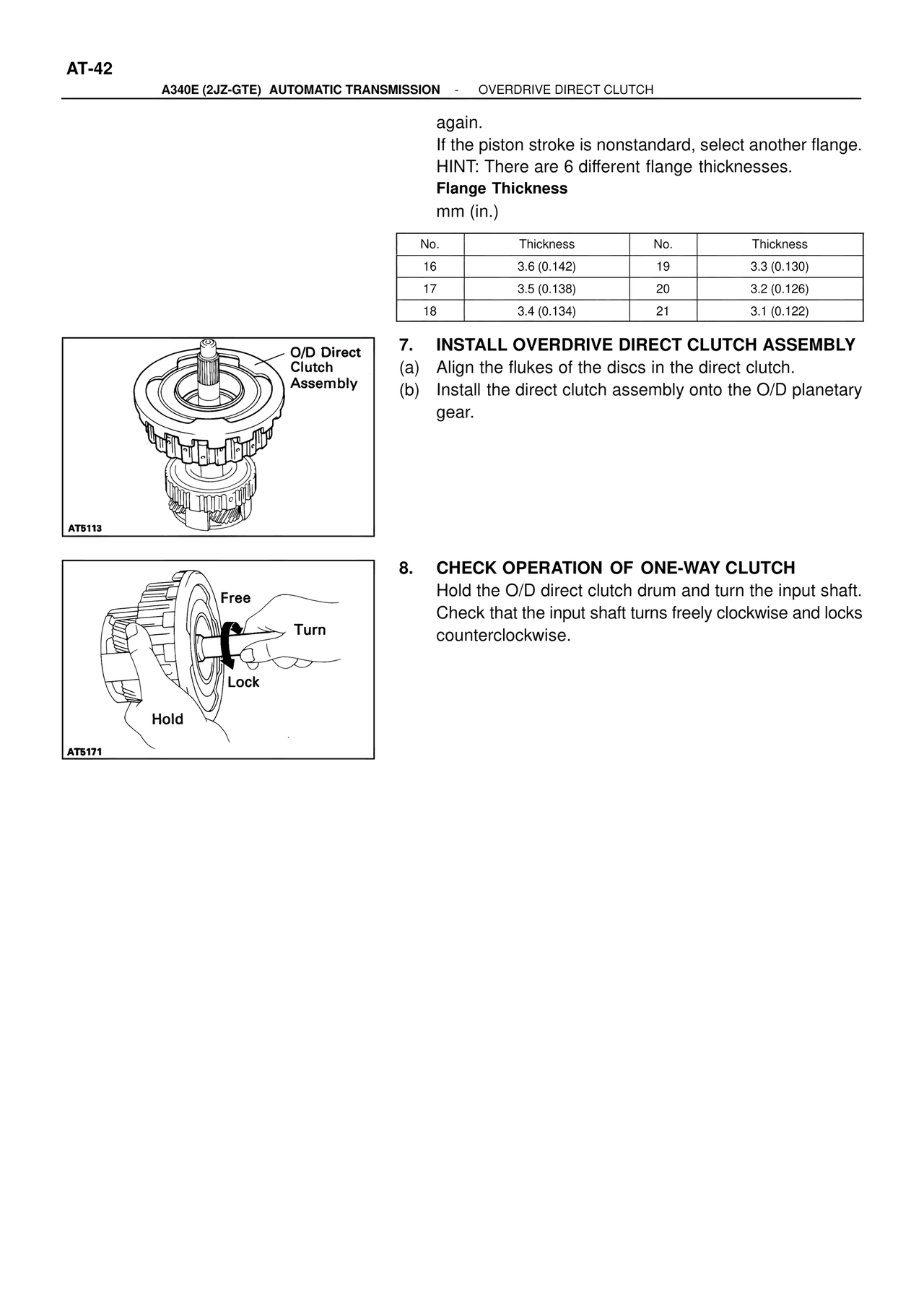

AT-42
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OVERDRIVE DIRECT CLUTCH
again.
If the piston stroke is nonstandard, select another flange.
HINT: There are 6 different flange thicknesses.
Flange Thickness
mm (in.)
No. | Thickness | No. | Thickness
16 | 3.6 (0.142) | 19 | 3.3 (0.130)
17 | 3.5 (0.138) | 20 | 3.2 (0.126)
18 | 3.4 (0.134) | 21 | 3.1 (0.122)
7. INSTALL OVERDRIVE DIRECT CLUTCH ASSEMBLY
(a) Align the flukes of the discs in the direct clutch.
(b) Install the direct clutch assembly onto the O/D planetary gear.
O/D Direct Clutch Assembly
AT5113
8. CHECK OPERATION OF ONE-WAY CLUTCH
Hold the O/D direct clutch drum and turn the input shaft. Check that the input shaft turns freely clockwise and locks counterclockwise.
Free
Turn
Lock
Hold
AT5171
