AT-43

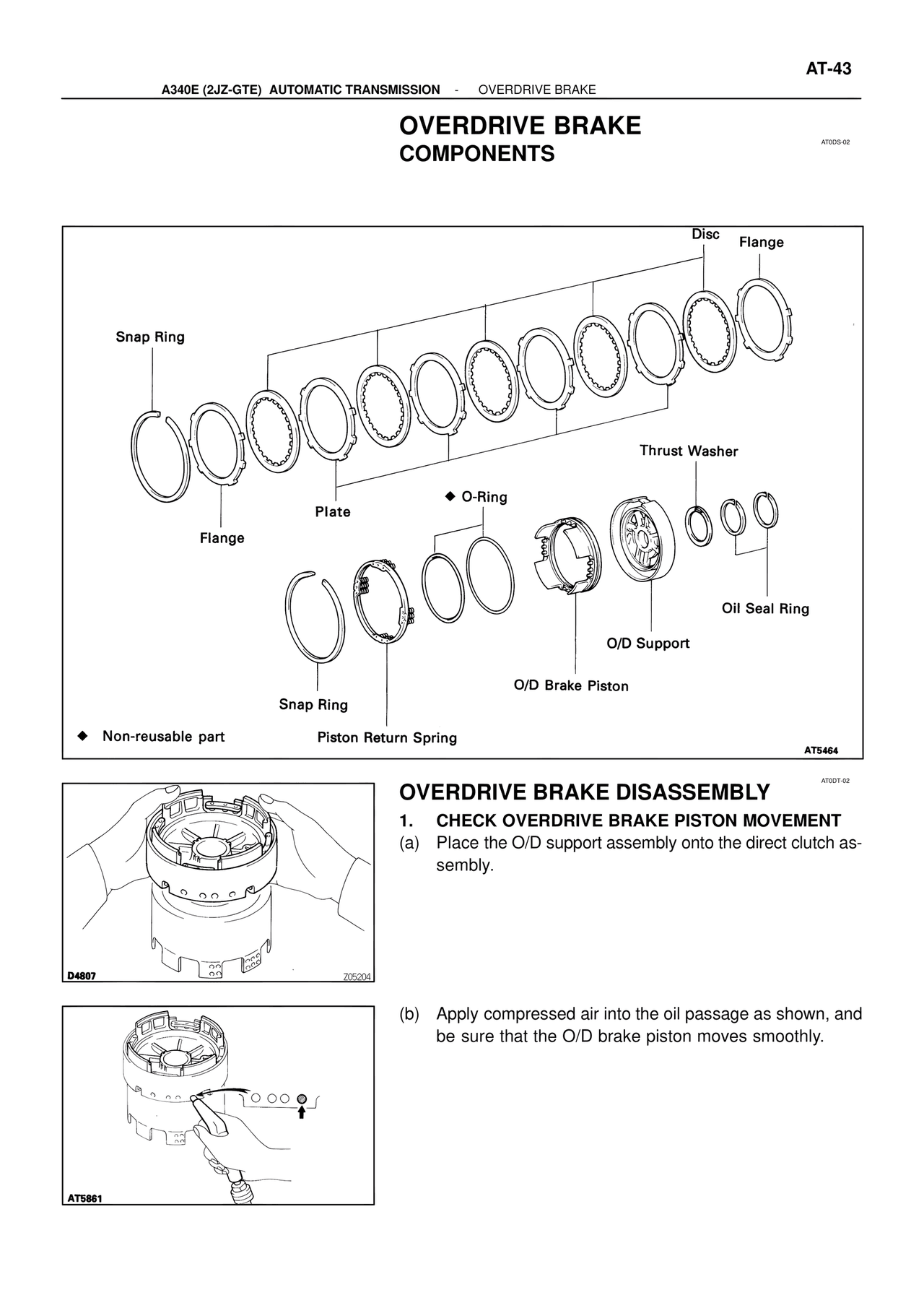

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OVERDRIVE BRAKE
OVERDRIVE BRAKE
COMPONENTS
AT0DS-02
Disc Flange
Snap Ring
Thrust Washer
◆ O-Ring
Plate
Flange
Oil Seal Ring
O/D Support
Snap Ring
O/D Brake Piston
◆ Non-reusable part
Piston Return Spring
AT5464
AT0DT-02
OVERDRIVE BRAKE DISASSEMBLY
1. CHECK OVERDRIVE BRAKE PISTON MOVEMENT
(a) Place the O/D support assembly onto the direct clutch assembly.
D4807
705204
(b) Apply compressed air into the oil passage as shown, and be sure that the O/D brake piston moves smoothly.
AT5861
