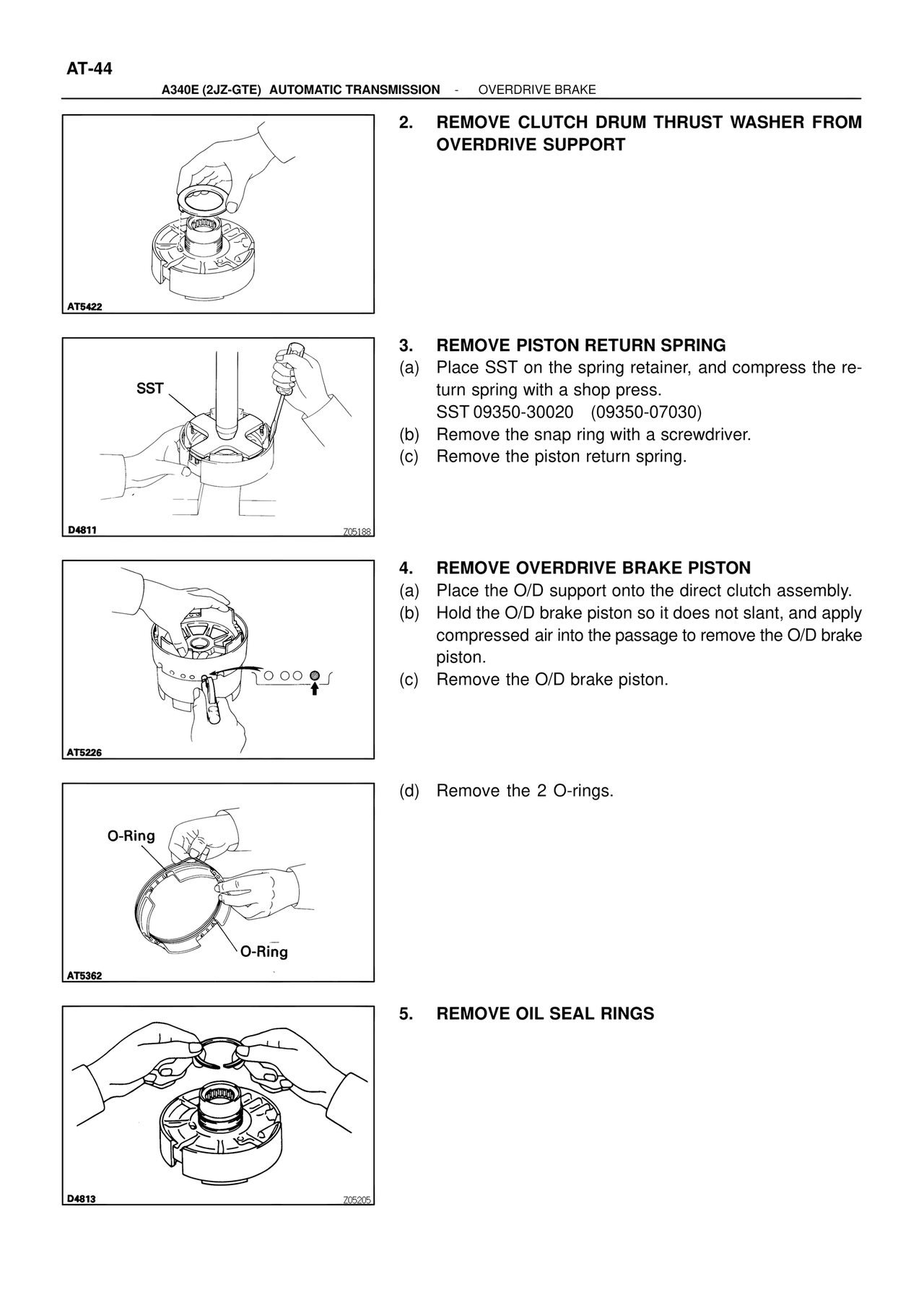

AT-44
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OVERDRIVE BRAKE
2. REMOVE CLUTCH DRUM THRUST WASHER FROM OVERDRIVE SUPPORT
AT5422
3. REMOVE PISTON RETURN SPRING
(a) Place SST on the spring retainer, and compress the return spring with a shop press.
SST 09350-30020 (09350-07030)
(b) Remove the snap ring with a screwdriver.
(c) Remove the piston return spring.
SST
D4811
4. REMOVE OVERDRIVE BRAKE PISTON
(a) Place the O/D support onto the direct clutch assembly.
(b) Hold the O/D brake piston so it does not slant, and apply compressed air into the passage to remove the O/D brake piston.
(c) Remove the O/D brake piston.
AT5226
(d) Remove the 2 O-rings.
O-Ring
O-Ring
AT5362
5. REMOVE OIL SEAL RINGS
D4813
