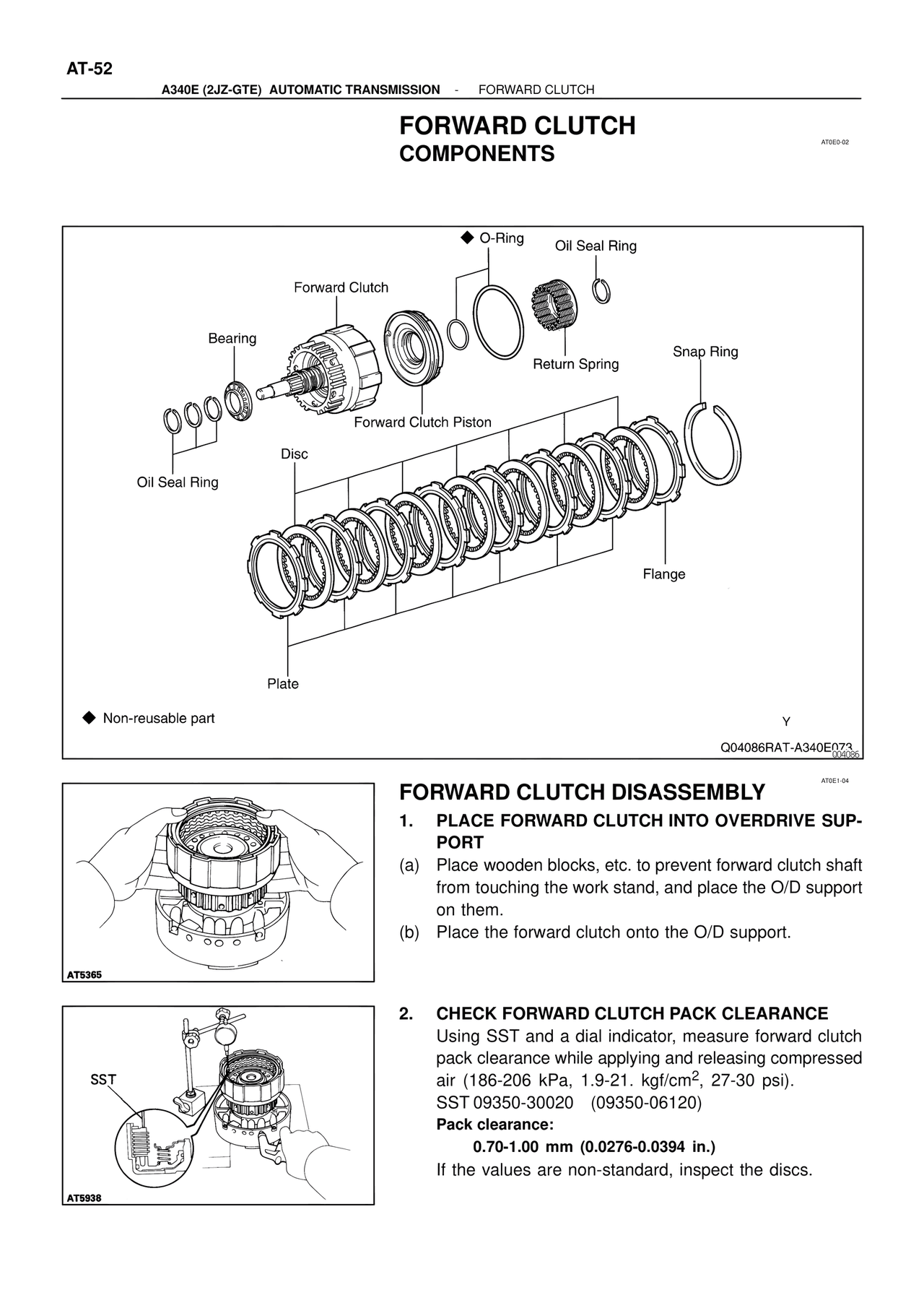

AT-52
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - FORWARD CLUTCH
FORWARD CLUTCH
COMPONENTS
ATOE0-02
◆ O-Ring
Oil Seal Ring
Forward Clutch
Bearing
Return Spring
Snap Ring
Forward Clutch Piston
Disc
Oil Seal Ring
Flange
Plate
◆ Non-reusable part
Y
Q04086RAT-A340E073
Q04086
ATOE1-04
FORWARD CLUTCH DISASSEMBLY
1. PLACE FORWARD CLUTCH INTO OVERDRIVE SUP-PORT
(a) Place wooden blocks, etc. to prevent forward clutch shaft from touching the work stand, and place the O/D support on them.
(b) Place the forward clutch onto the O/D support.
AT5365
2. CHECK FORWARD CLUTCH PACK CLEARANCE
Using SST and a dial indicator, measure forward clutch pack clearance while applying and releasing compressed air (186-206 kPa, 1.9-21. kgf/cm², 27-30 psi).
SST 09350-30020 (09350-06120)
Pack clearance:
0.70-1.00 mm (0.0276-0.0394 in.)
If the values are non-standard, inspect the discs.
SST
AT5938
