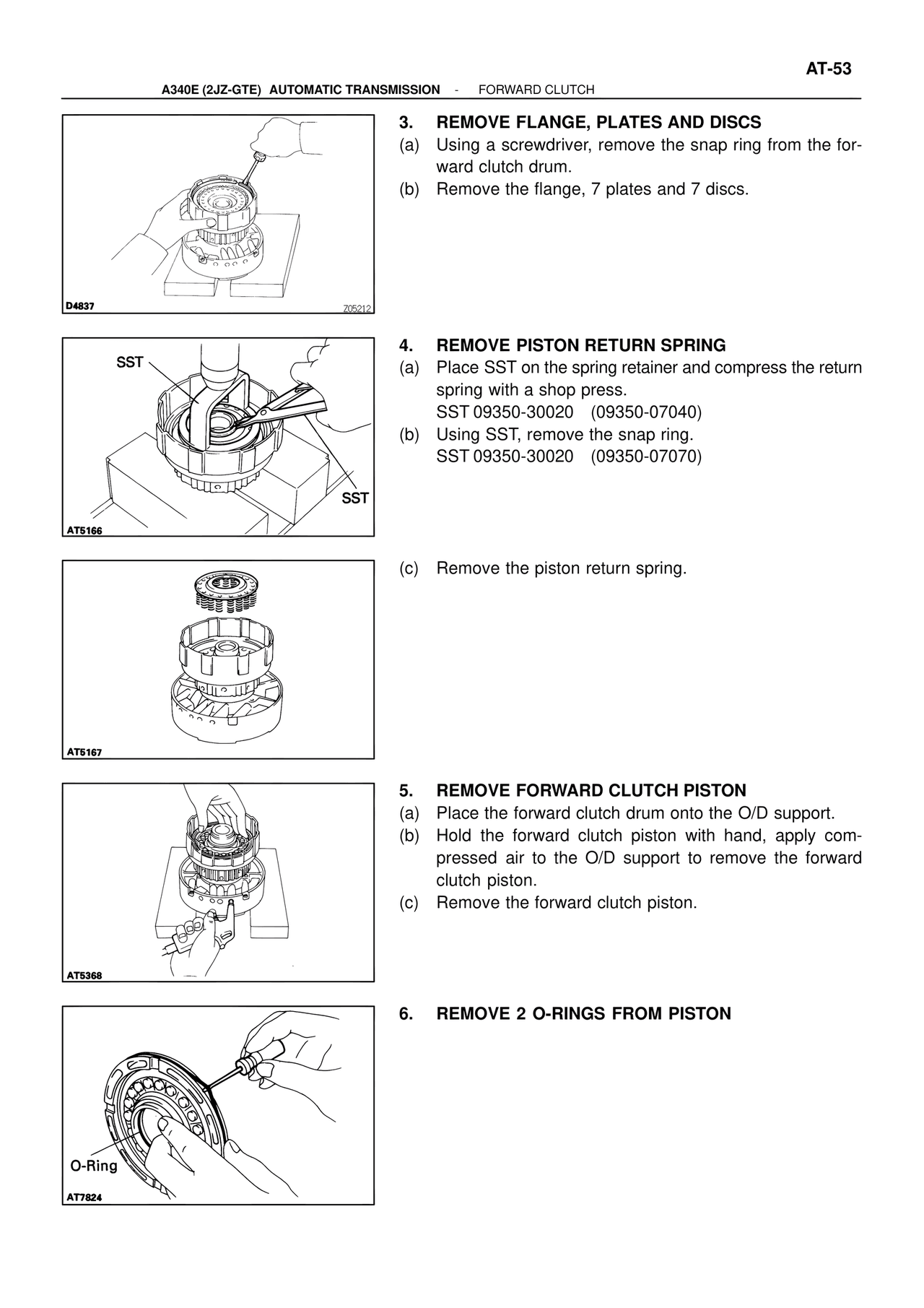

AT-53
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - FORWARD CLUTCH
D4837
3. REMOVE FLANGE, PLATES AND DISCS
(a) Using a screwdriver, remove the snap ring from the forward clutch drum.
(b) Remove the flange, 7 plates and 7 discs.
SST
SST
AT5166
4. REMOVE PISTON RETURN SPRING
(a) Place SST on the spring retainer and compress the return spring with a shop press.
SST 09350-30020 (09350-07040)
(b) Using SST, remove the snap ring.
SST 09350-30020 (09350-07070)
AT5167
(c) Remove the piston return spring.
AT5368
5. REMOVE FORWARD CLUTCH PISTON
(a) Place the forward clutch drum onto the O/D support.
(b) Hold the forward clutch piston with hand, apply compressed air to the O/D support to remove the forward clutch piston.
(c) Remove the forward clutch piston.
O-Ring
AT7824
6. REMOVE 2 O-RINGS FROM PISTON
