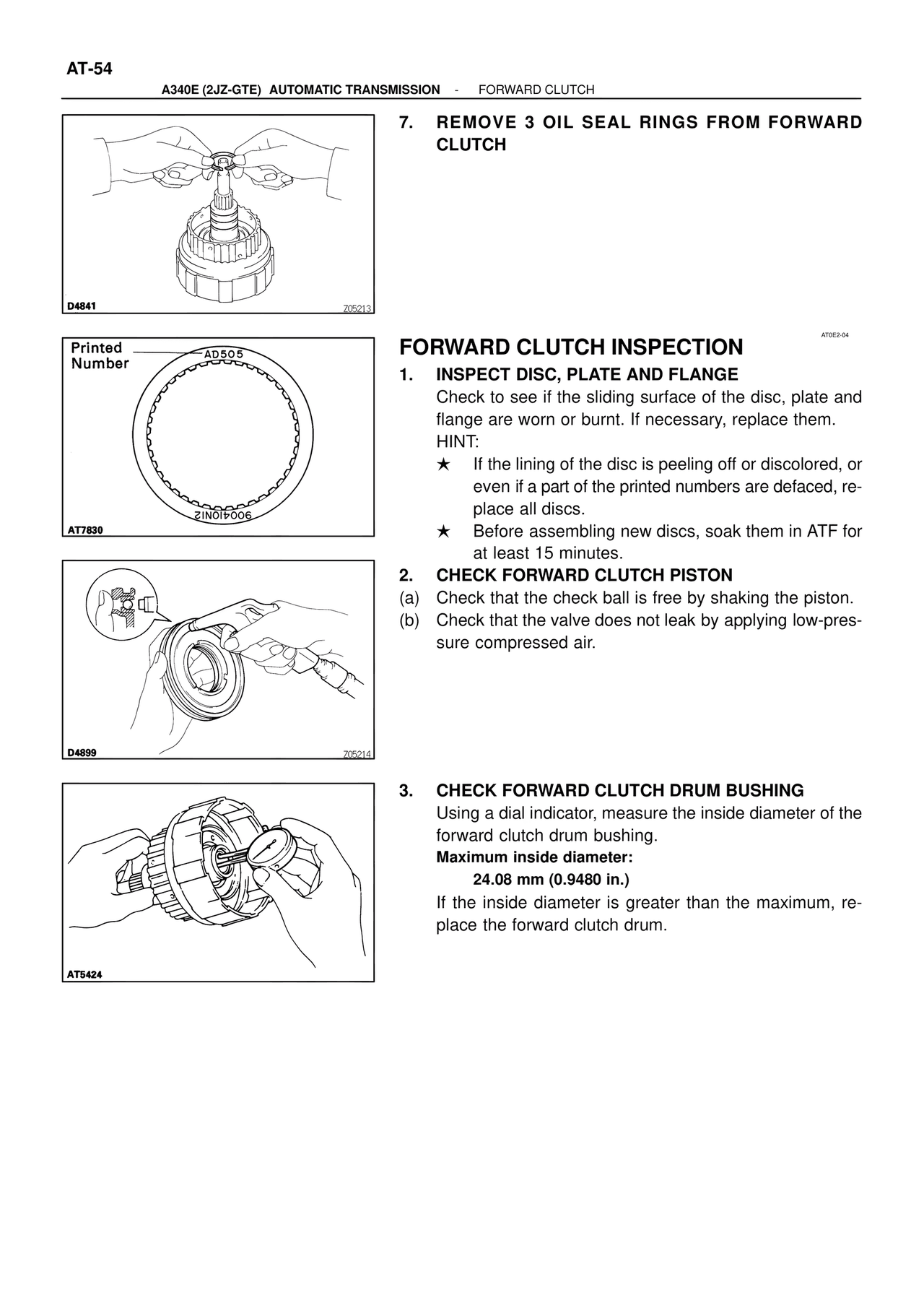

AT-54
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - FORWARD CLUTCH

7. REMOVE 3 OIL SEAL RINGS FROM FORWARD CLUTCH

D4841                                                    Z05213

Printed
Number        AD505

                    2INO19006

AT7830

D4899                                                    Z05214

AT5424

FORWARD CLUTCH INSPECTION
                                                         AT0E2-04
1. INSPECT DISC, PLATE AND FLANGE
Check to see if the sliding surface of the disc, plate and
flange are worn or burnt. If necessary, replace them.
HINT:
★ If the lining of the disc is peeling off or discolored, or
   even if a part of the printed numbers are defaced, re-
   place all discs.
★ Before assembling new discs, soak them in ATF for
   at least 15 minutes.

2. CHECK FORWARD CLUTCH PISTON
(a) Check that the check ball is free by shaking the piston.
(b) Check that the valve does not leak by applying low-pres-
    sure compressed air.

3. CHECK FORWARD CLUTCH DRUM BUSHING
Using a dial indicator, measure the inside diameter of the
forward clutch drum bushing.
Maximum inside diameter:
    24.08 mm (0.9480 in.)
If the inside diameter is greater than the maximum, re-
place the forward clutch drum.
