AT-56
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - FORWARD CLUTCH
Flange
D
D P
D P
D P
D P
D P
D P
D
P
Q04089 Y Z08959
D4849 Z05215
SST
AT5938

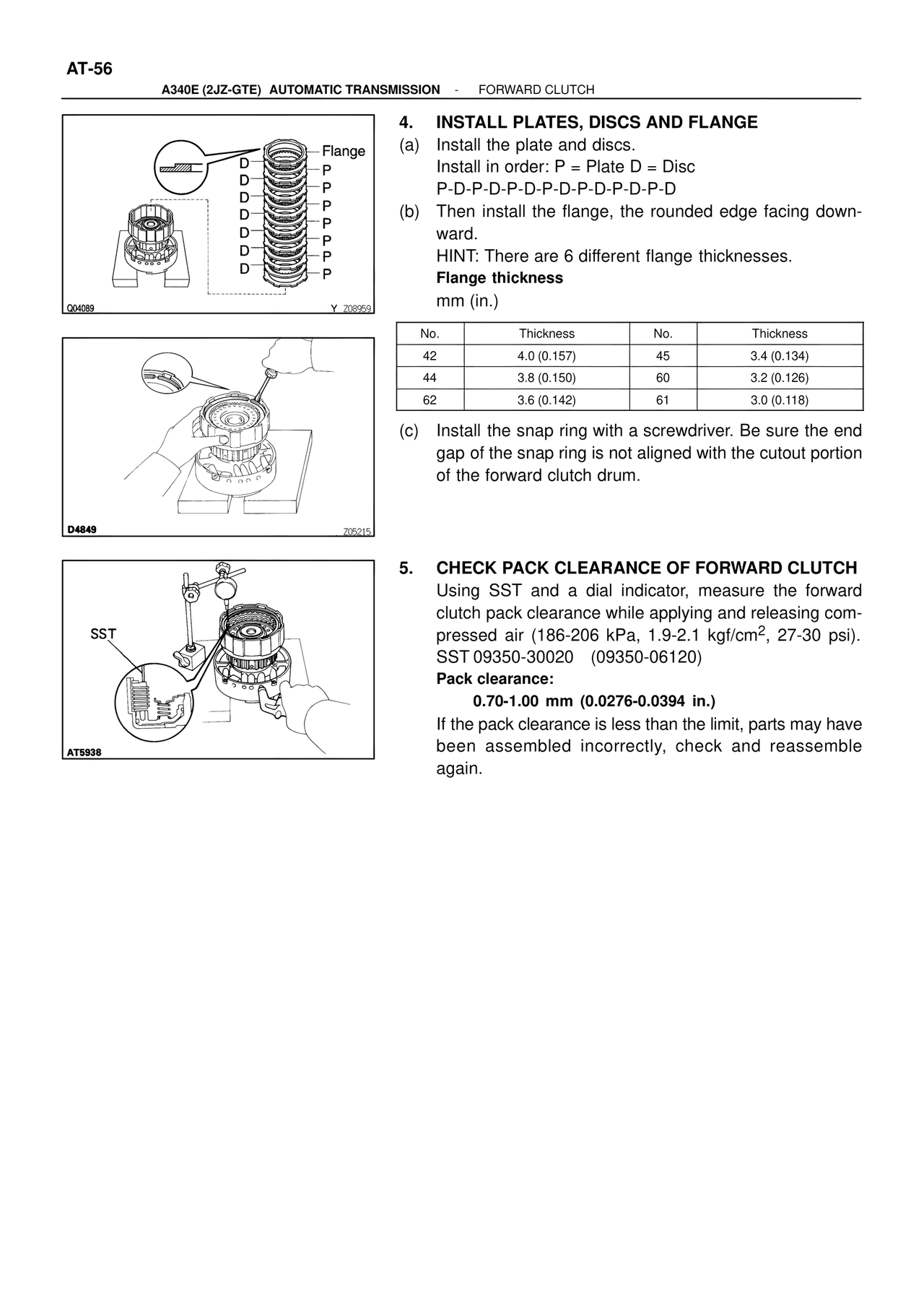

4. INSTALL PLATES, DISCS AND FLANGE
(a) Install the plate and discs.
Install in order: P = Plate D = Disc
P-D-P-D-P-D-P-D-P-D-P-D-P-D
(b) Then install the flange, the rounded edge facing downward.
HINT: There are 6 different flange thicknesses.
Flange thickness
mm (in.)
No. Thickness No. Thickness
42 4.0 (0.157) 45 3.4 (0.134)
44 3.8 (0.150) 60 3.2 (0.126)
62 3.6 (0.142) 61 3.0 (0.118)
(c) Install the snap ring with a screwdriver. Be sure the end gap of the snap ring is not aligned with the cutout portion of the forward clutch drum.
5. CHECK PACK CLEARANCE OF FORWARD CLUTCH
Using SST and a dial indicator, measure the forward clutch pack clearance while applying and releasing compressed air (186-206 kPa, 1.9-2.1 kgf/cm2, 27-30 psi).
SST 09350-30020 (09350-06120)
Pack clearance:
0.70-1.00 mm (0.0276-0.0394 in.)
If the pack clearance is less than the limit, parts may have been assembled incorrectly, check and reassemble again.
