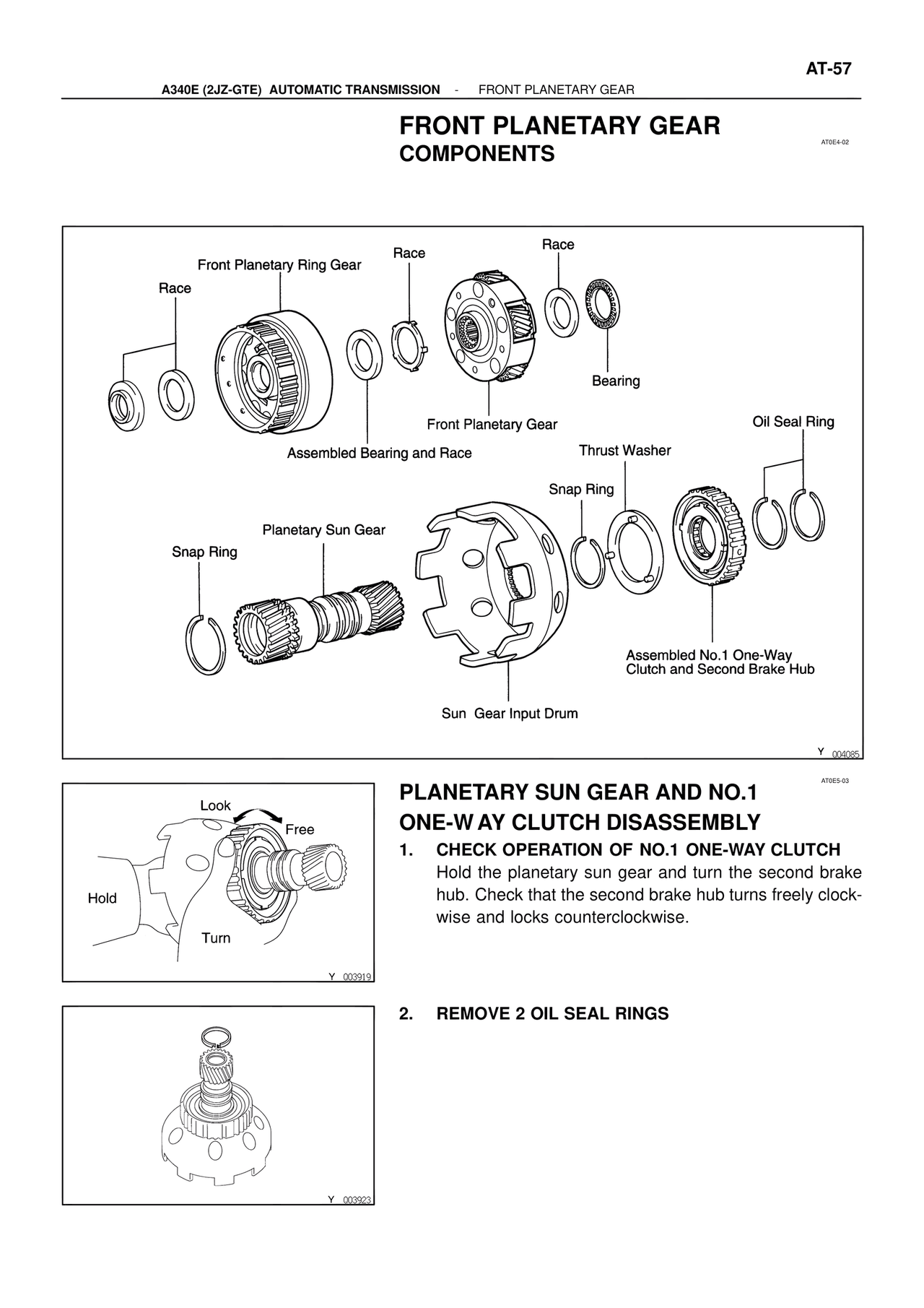

AT-57
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - FRONT PLANETARY GEAR
FRONT PLANETARY GEAR
COMPONENTS
AT0E4-02
Front Planetary Ring Gear
Race
Race
Race
Assembled Bearing and Race
Bearing
Front Planetary Gear
Oil Seal Ring
Thrust Washer
Snap Ring
Planetary Sun Gear
Snap Ring
Assembled No.1 One-Way
Clutch and Second Brake Hub
Sun Gear Input Drum
Y 004085
AT0E5-03
PLANETARY SUN GEAR AND NO.1
ONE-WAY CLUTCH DISASSEMBLY
1. CHECK OPERATION OF NO.1 ONE-WAY CLUTCH
Hold the planetary sun gear and turn the second brake
hub. Check that the second brake hub turns freely clock-
wise and locks counterclockwise.
Look
Free
Hold
Turn
Y 003919
2. REMOVE 2 OIL SEAL RINGS
Y 003923
