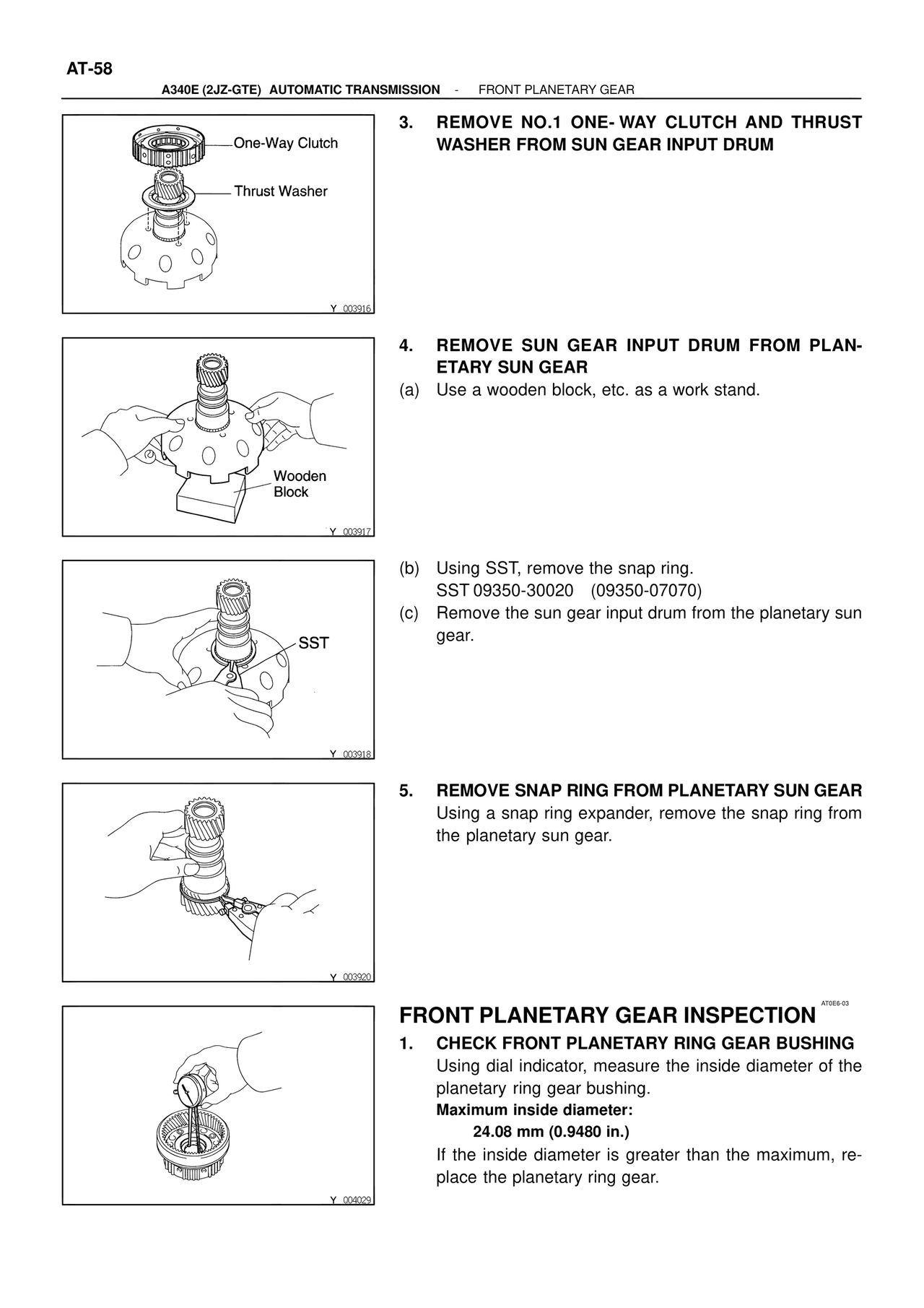

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - FRONT PLANETARY GEAR
One-Way Clutch
Thrust Washer
Y 003916
3. REMOVE NO.1 ONE-WAY CLUTCH AND THRUST WASHER FROM SUN GEAR INPUT DRUM
Wooden Block
Y 003917
4. REMOVE SUN GEAR INPUT DRUM FROM PLANETARY SUN GEAR
(a) Use a wooden block, etc. as a work stand.
SST
Y 003918
(b) Using SST, remove the snap ring.
SST 09350-30020 (09350-07070)
(c) Remove the sun gear input drum from the planetary sun gear.
Y 003920
5. REMOVE SNAP RING FROM PLANETARY SUN GEAR
Using a snap ring expander, remove the snap ring from the planetary sun gear.
Y 004029
AT0E6-03
FRONT PLANETARY GEAR INSPECTION
1. CHECK FRONT PLANETARY RING GEAR BUSHING
Using dial indicator, measure the inside diameter of the planetary ring gear bushing.
Maximum inside diameter:
24.08 mm (0.9480 in.)
If the inside diameter is greater than the maximum, replace the planetary ring gear.
