AT2–113
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING

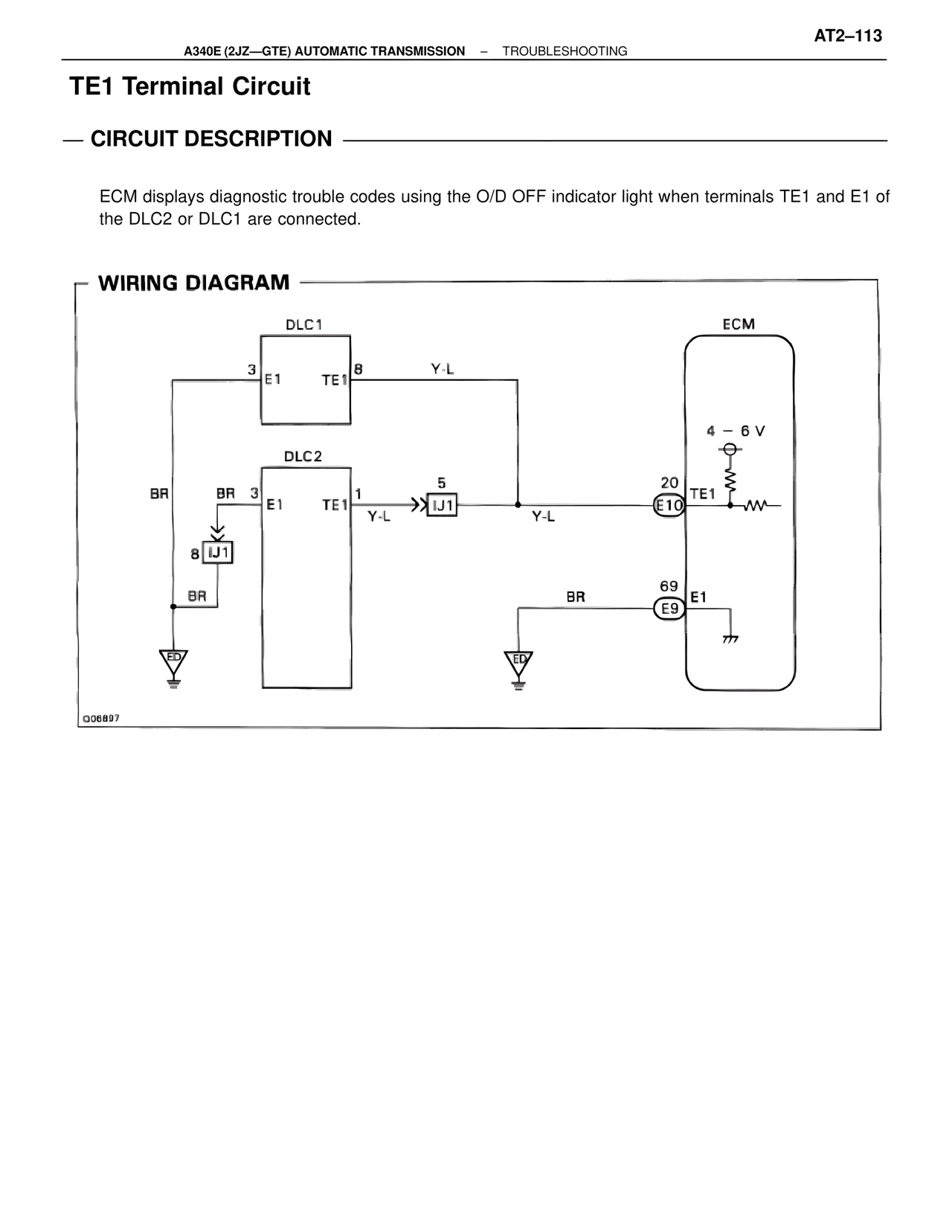

TE1 Terminal Circuit
— CIRCUIT DESCRIPTION —
ECM displays diagnostic trouble codes using the O/D OFF indicator light when terminals TE1 and E1 of the DLC2 or DLC1 are connected.
— WIRING DIAGRAM —
DLC1
3
E1 TE1 8 Y-L
DLC2
BR BR 3
E1 TE1 1
Y-L
8 IJ1
BR
5
IJ1 Y-L
BR
ECM
4 – 6 V
20
TE1 E10
69
E1 E9
BR
Q06897
