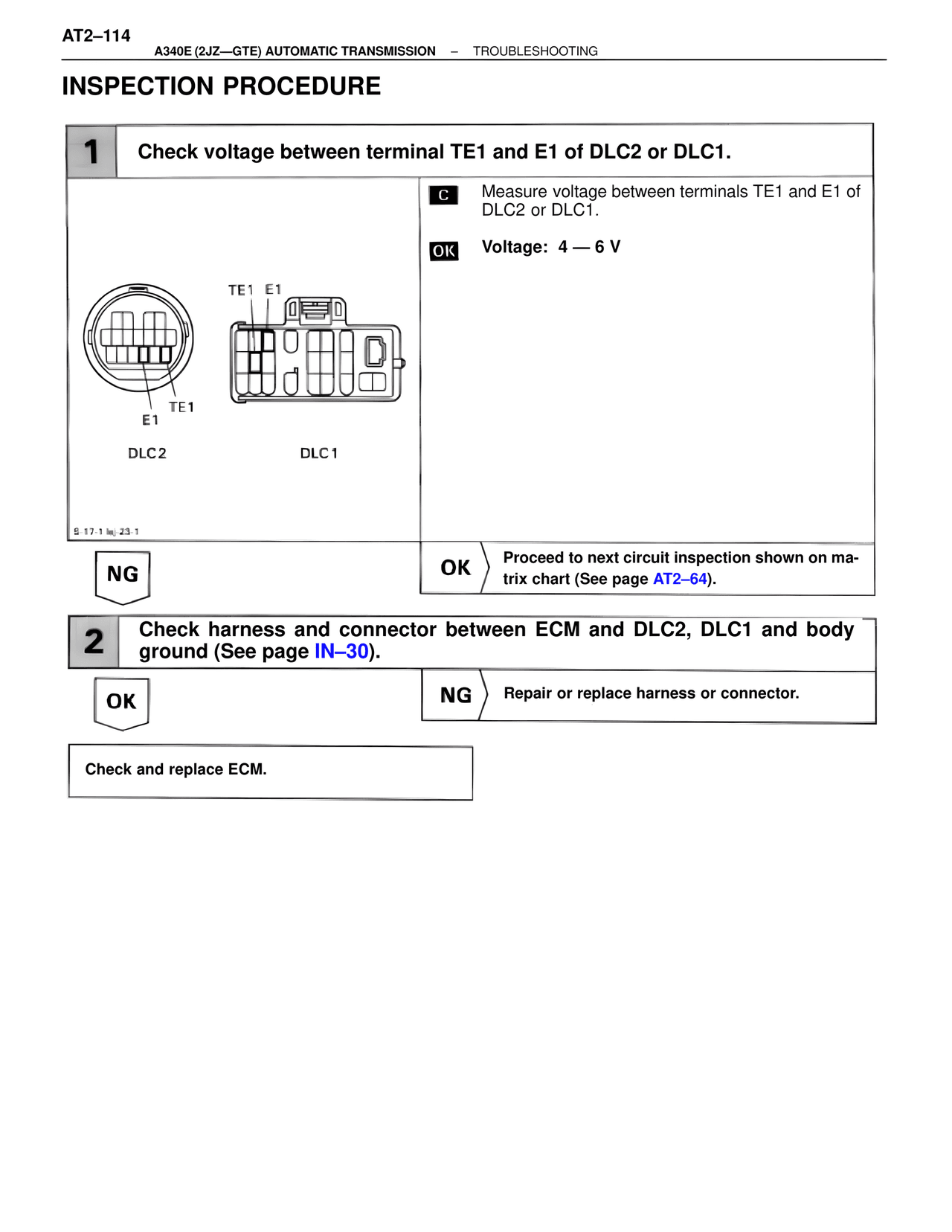

AT2–114
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
INSPECTION PROCEDURE
1 Check voltage between terminal TE1 and E1 of DLC2 or DLC1.
C Measure voltage between terminals TE1 and E1 of DLC2 or DLC1.
OK Voltage: 4 — 6 V
TE1 E1
DLC2 DLC1
S-17-1 laj-23-1
NG
OK Proceed to next circuit inspection shown on matrix chart (See page AT2–64).
2 Check harness and connector between ECM and DLC2, DLC1 and body ground (See page IN–30).
OK
NG Repair or replace harness or connector.
Check and replace ECM.
