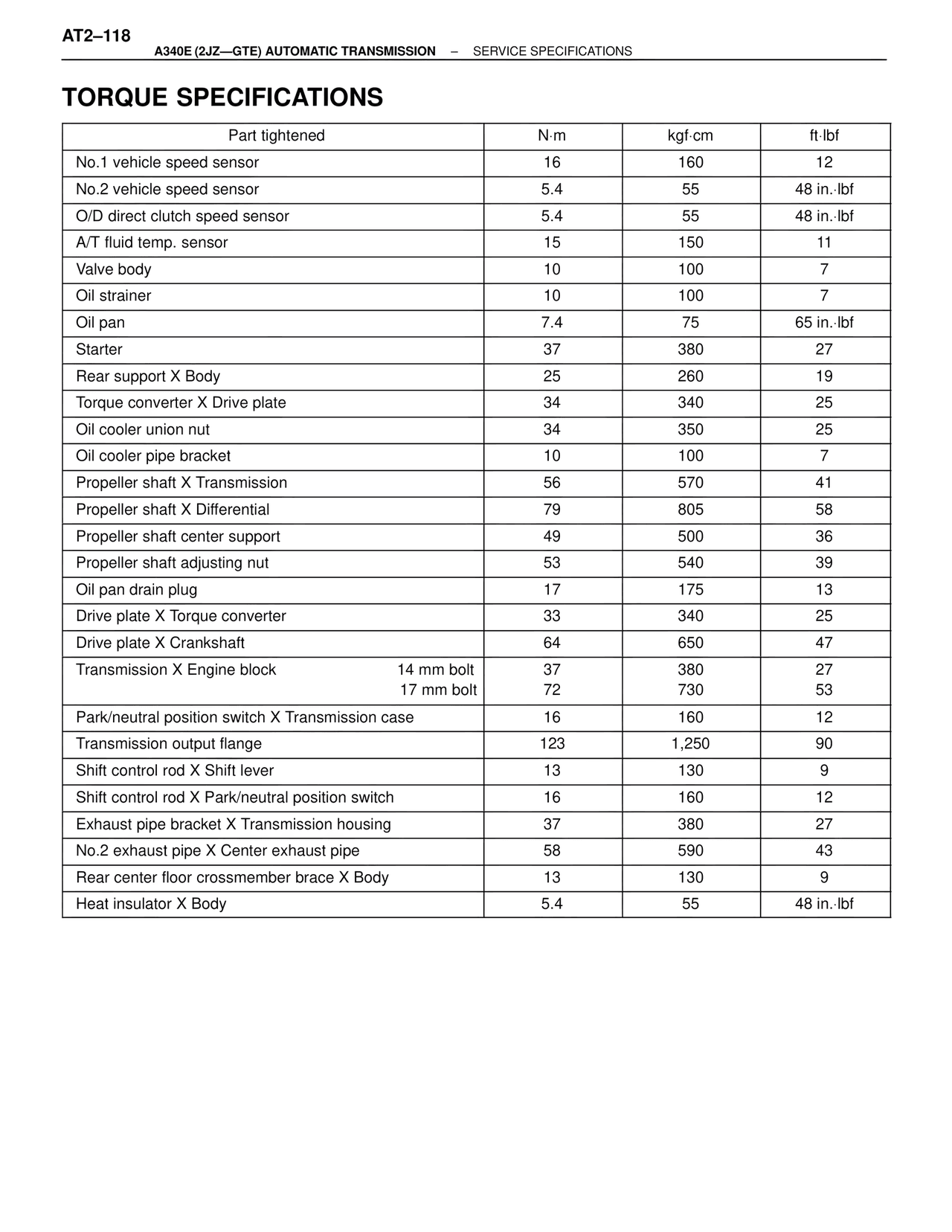

AT2–118
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – SERVICE SPECIFICATIONS
TORQUE SPECIFICATIONS
Part tightened N·m kgf·cm ft·lbf
No.1 vehicle speed sensor 16 160 12
No.2 vehicle speed sensor 5.4 55 48 in.·lbf
O/D direct clutch speed sensor 5.4 55 48 in.·lbf
A/T fluid temp. sensor 15 150 11
Valve body 10 100 7
Oil strainer 10 100 7
Oil pan 7.4 75 65 in.·lbf
Starter 37 380 27
Rear support X Body 25 260 19
Torque converter X Drive plate 34 340 25
Oil cooler union nut 34 350 25
Oil cooler pipe bracket 10 100 7
Propeller shaft X Transmission 56 570 41
Propeller shaft X Differential 79 805 58
Propeller shaft center support 49 500 36
Propeller shaft adjusting nut 53 540 39
Oil pan drain plug 17 175 13
Drive plate X Torque converter 33 340 25
Drive plate X Crankshaft 64 650 47
Transmission X Engine block 14 mm bolt 37 380 27
17 mm bolt 72 730 53
Park/neutral position switch X Transmission case 16 160 12
Transmission output flange 123 1,250 90
Shift control rod X Shift lever 13 130 9
Shift control rod X Park/neutral position switch 16 160 12
Exhaust pipe bracket X Transmission housing 37 380 27
No.2 exhaust pipe X Center exhaust pipe 58 590 43
Rear center floor crossmember brace X Body 13 130 9
Heat insulator X Body 5.4 55 48 in.·lbf
