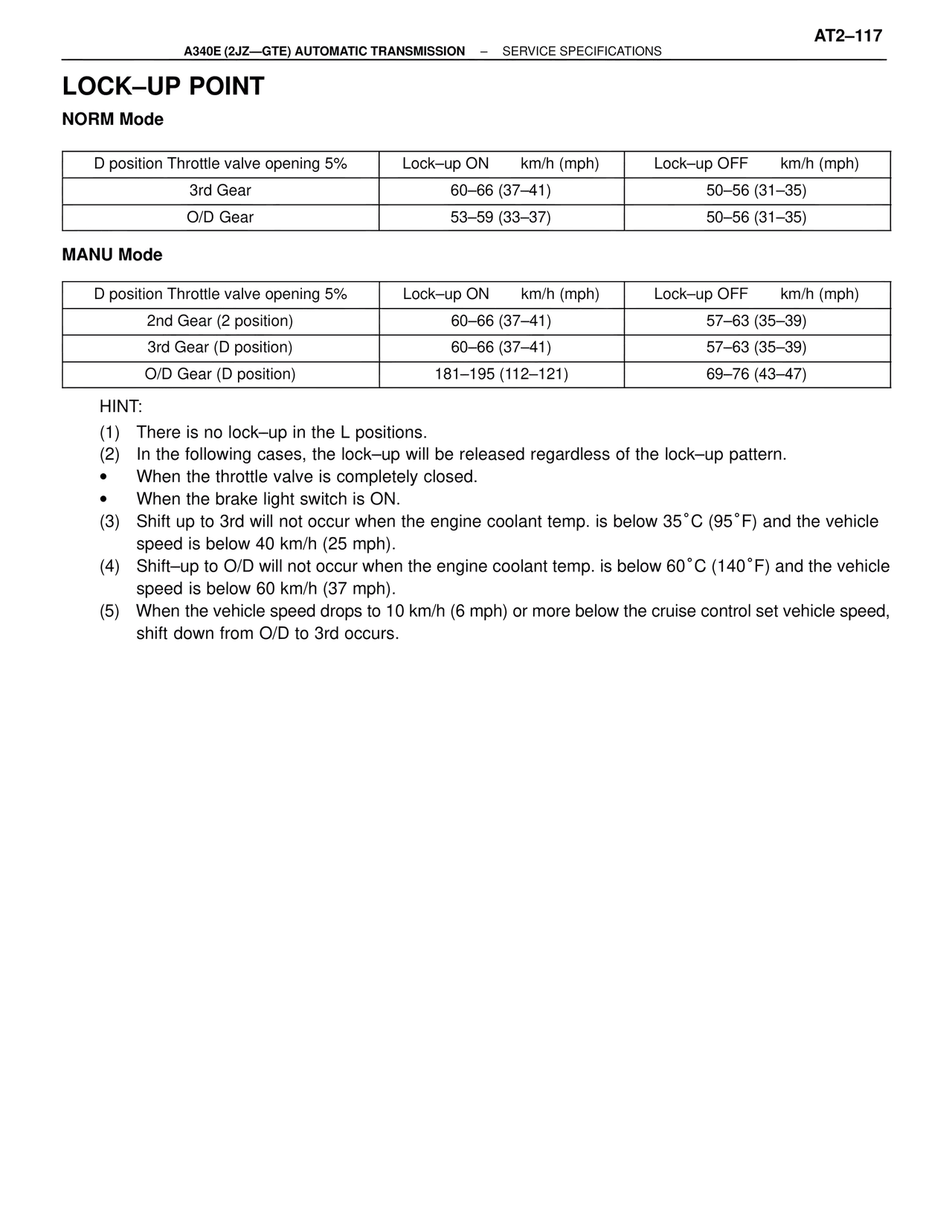

LOCK–UP POINT
NORM Mode
D position Throttle valve opening 5% Lock–up ON km/h (mph) Lock–up OFF km/h (mph)
3rd Gear 60–66 (37–41) 50–56 (31–35)
O/D Gear 53–59 (33–37) 50–56 (31–35)
MANU Mode
D position Throttle valve opening 5% Lock–up ON km/h (mph) Lock–up OFF km/h (mph)
2nd Gear (2 position) 60–66 (37–41) 57–63 (35–39)
3rd Gear (D position) 60–66 (37–41) 57–63 (35–39)
O/D Gear (D position) 181–195 (112–121) 69–76 (43–47)
HINT:
(1) There is no lock–up in the L positions.
(2) In the following cases, the lock–up will be released regardless of the lock–up pattern.
• When the throttle valve is completely closed.
• When the brake light switch is ON.
(3) Shift up to 3rd will not occur when the engine coolant temp. is below 35°C (95°F) and the vehicle speed is below 40 km/h (25 mph).
(4) Shift–up to O/D will not occur when the engine coolant temp. is below 60°C (140°F) and the vehicle speed is below 60 km/h (37 mph).
(5) When the vehicle speed drops to 10 km/h (6 mph) or more below the cruise control set vehicle speed, shift down from O/D to 3rd occurs.
