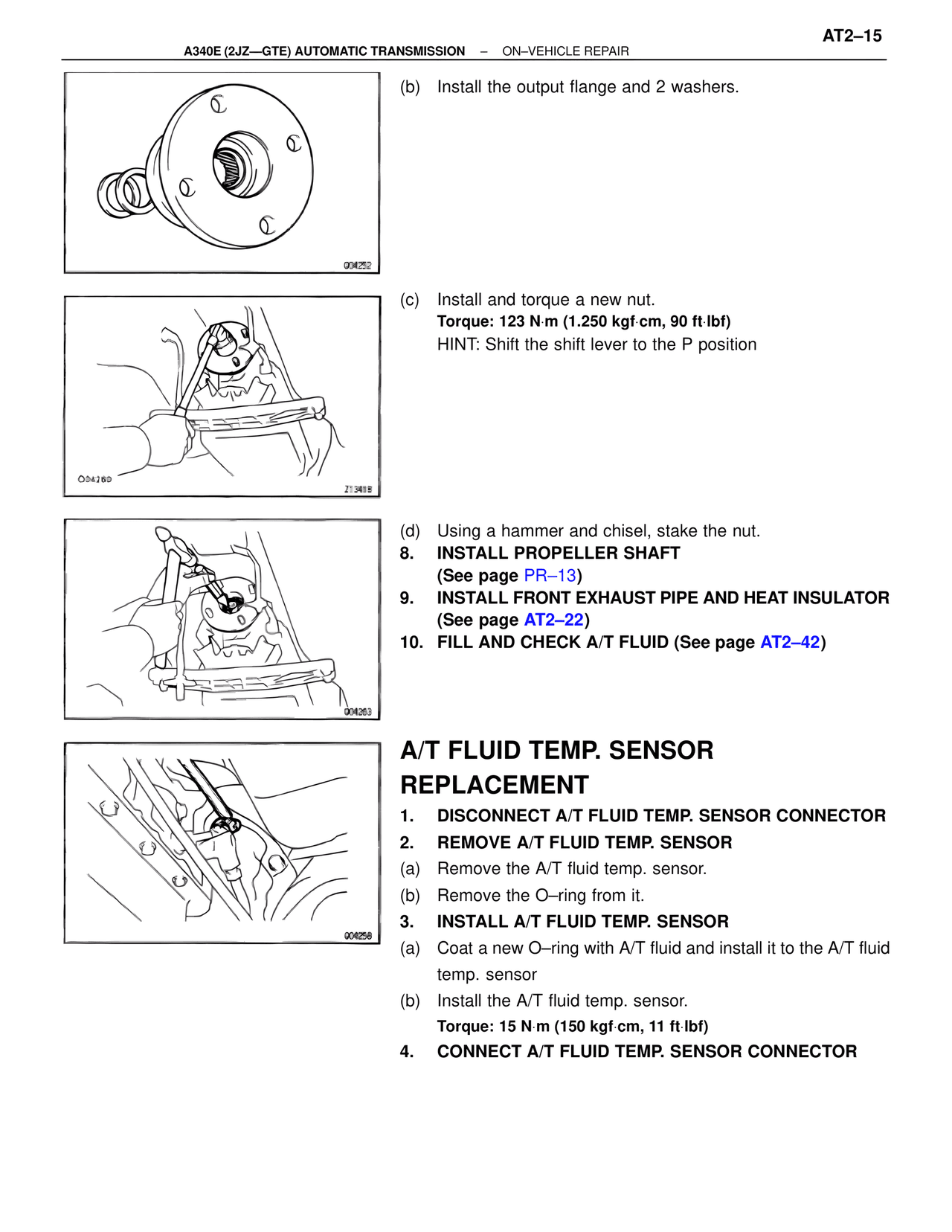

ATTE/A340 Automatic Trans (GTE) — A/T Fluid Temp. Sensor Replacement, page 15

AT2–15
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR

(b) Install the output flange and 2 washers.

(c) Install and torque a new nut.
Torque: 123 N·m (1,250 kgf·cm, 90 ft·lbf)
HINT: Shift the shift lever to the P position

(d) Using a hammer and chisel, stake the nut.
8. INSTALL PROPELLER SHAFT
(See page PR–13)
9. INSTALL FRONT EXHAUST PIPE AND HEAT INSULATOR
(See page AT2–22)
10. FILL AND CHECK A/T FLUID (See page AT2–42)

A/T FLUID TEMP. SENSOR
REPLACEMENT

1. DISCONNECT A/T FLUID TEMP. SENSOR CONNECTOR
2. REMOVE A/T FLUID TEMP. SENSOR
(a) Remove the A/T fluid temp. sensor.
(b) Remove the O–ring from it.
3. INSTALL A/T FLUID TEMP. SENSOR
(a) Coat a new O–ring with A/T fluid and install it to the A/T fluid
temp. sensor
(b) Install the A/T fluid temp. sensor.
Torque: 15 N·m (150 kgf·cm, 11 ft·lbf)
4. CONNECT A/T FLUID TEMP. SENSOR CONNECTOR
