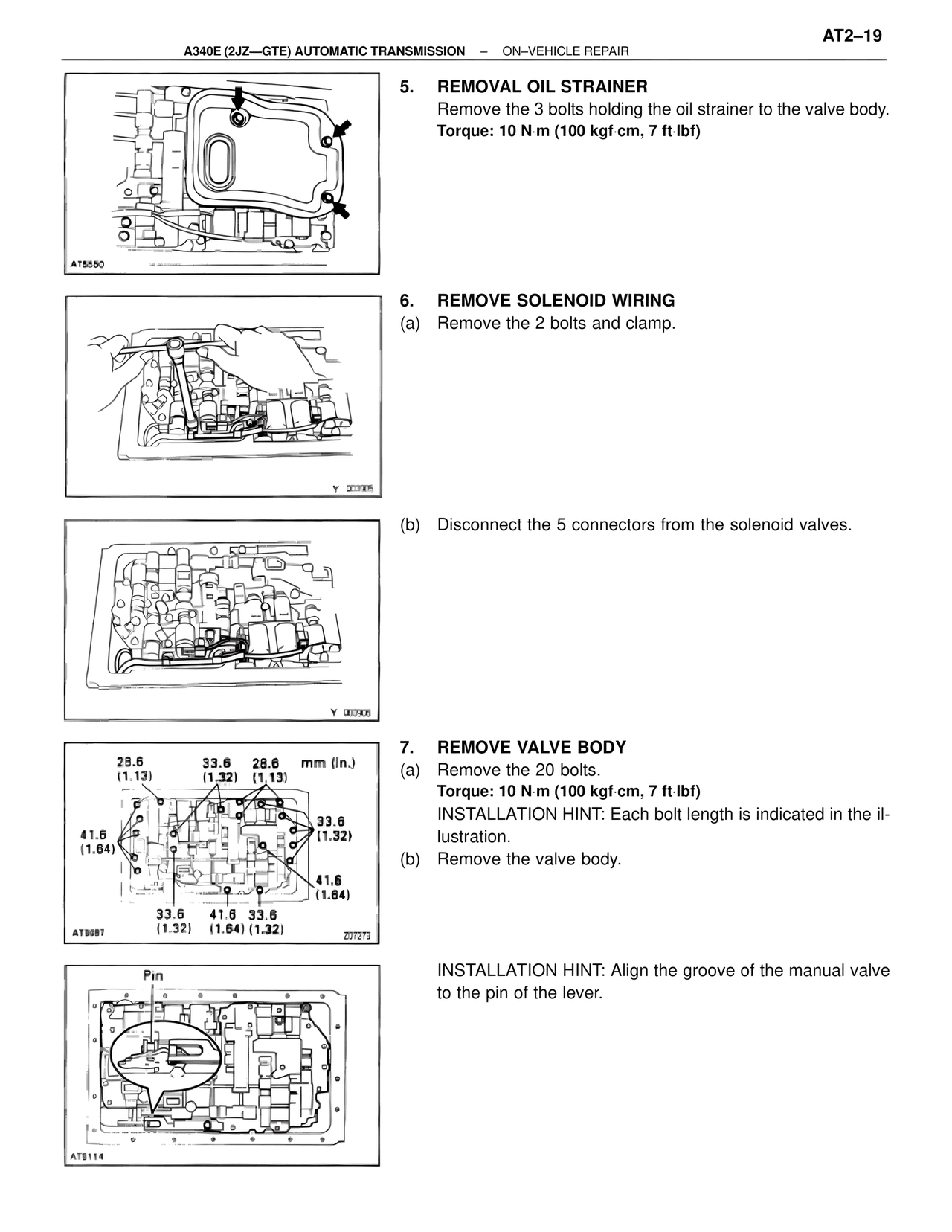

AT2–19
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR
5. REMOVAL OIL STRAINER
Remove the 3 bolts holding the oil strainer to the valve body.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
AT5550
6. REMOVE SOLENOID WIRING
(a) Remove the 2 bolts and clamp.
Y 003905
(b) Disconnect the 5 connectors from the solenoid valves.
Y 003906
7. REMOVE VALVE BODY
(a) Remove the 20 bolts.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
INSTALLATION HINT: Each bolt length is indicated in the illustration.
(b) Remove the valve body.
28.6 33.6 28.6 mm (in.)
(1.13) (1.32) (1.13)
33.6
(1.32)
41.6
(1.64)
41.6
(1.64)
33.6 41.6 33.6
(1.32) (1.64) (1.32)
AT5097 207273
INSTALLATION HINT: Align the groove of the manual valve to the pin of the lever.
Pin
AT5114
