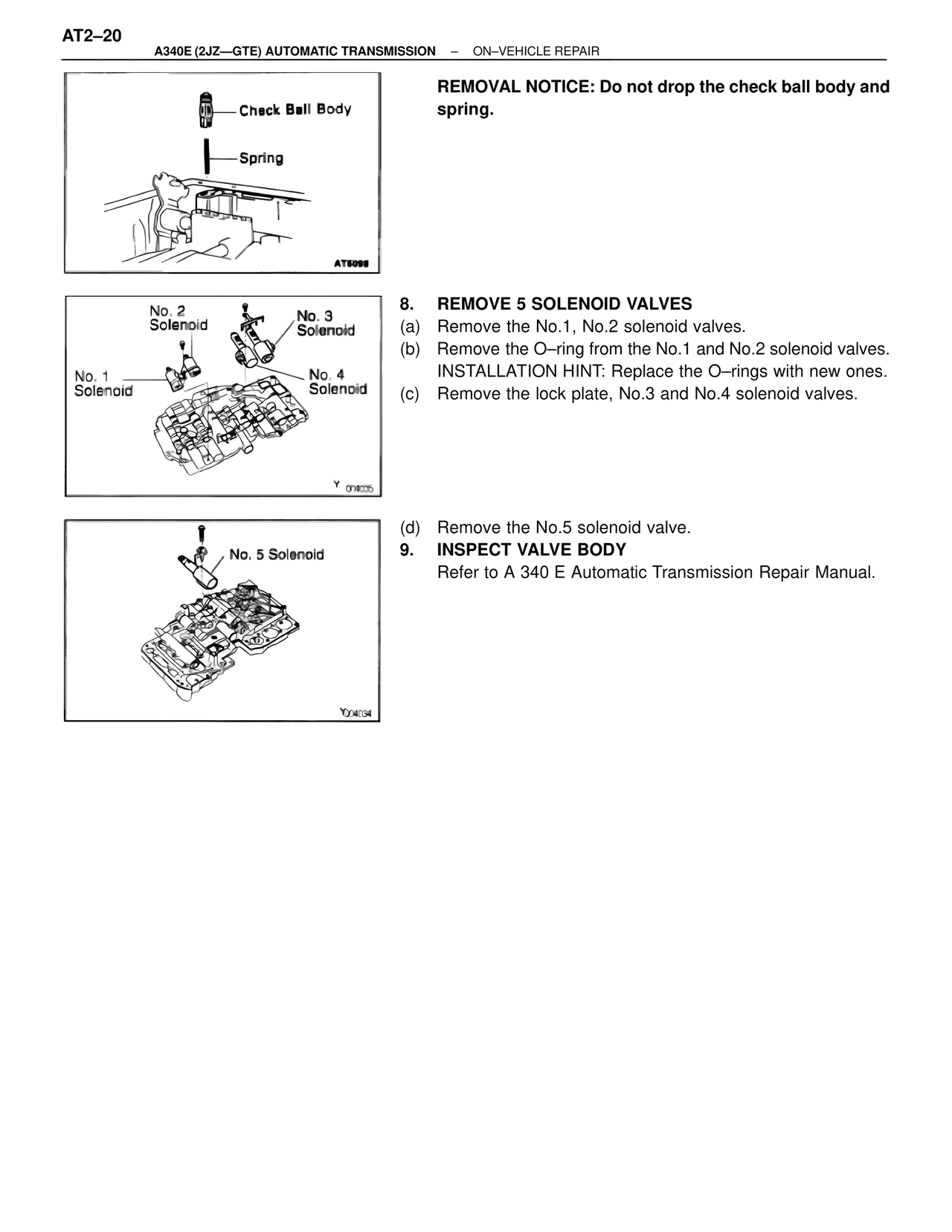

AT2–20
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR
Check Ball Body
Spring
AT6098
REMOVAL NOTICE: Do not drop the check ball body and spring.
No. 2
Solenoid
No. 3
Solenoid
No. 1
Solenoid
No. 4
Solenoid
Y 0n8025
8. REMOVE 5 SOLENOID VALVES
(a) Remove the No.1, No.2 solenoid valves.
(b) Remove the O–ring from the No.1 and No.2 solenoid valves.
INSTALLATION HINT: Replace the O–rings with new ones.
(c) Remove the lock plate, No.3 and No.4 solenoid valves.
No. 5 Solenoid
Y004034
(d) Remove the No.5 solenoid valve.
9. INSPECT VALVE BODY
Refer to A 340 E Automatic Transmission Repair Manual.
