AT2–21

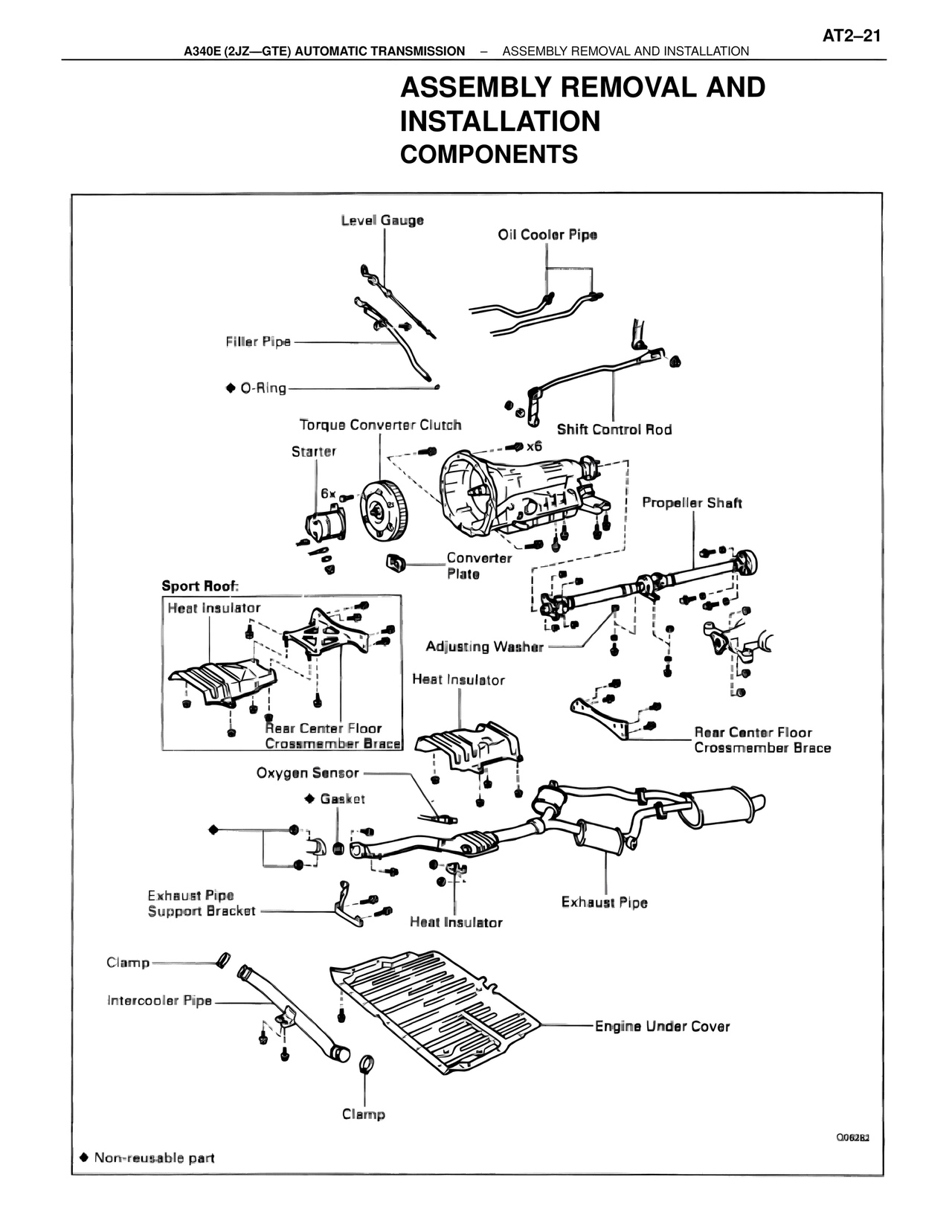

A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION

ASSEMBLY REMOVAL AND
INSTALLATION
COMPONENTS

Level Gauge
Oil Cooler Pipe
Filler Pipe
◆ O-Ring
Shift Control Rod
Torque Converter Clutch
Starter
→ x6
6x ←
Converter
Plate
Propeller Shaft
Sport Roof:
Heat Insulator
Adjusting Washer
Heat Insulator
Rear Center Floor
Crossmember Brace
Rear Center Floor
Crossmember Brace
Oxygen Sensor
◆ Gasket
Exhaust Pipe
Support Bracket
Exhaust Pipe
Heat Insulator
Clamp
Intercooler Pipe
Engine Under Cover
Clamp

O06282

◆ Non-reusable part
