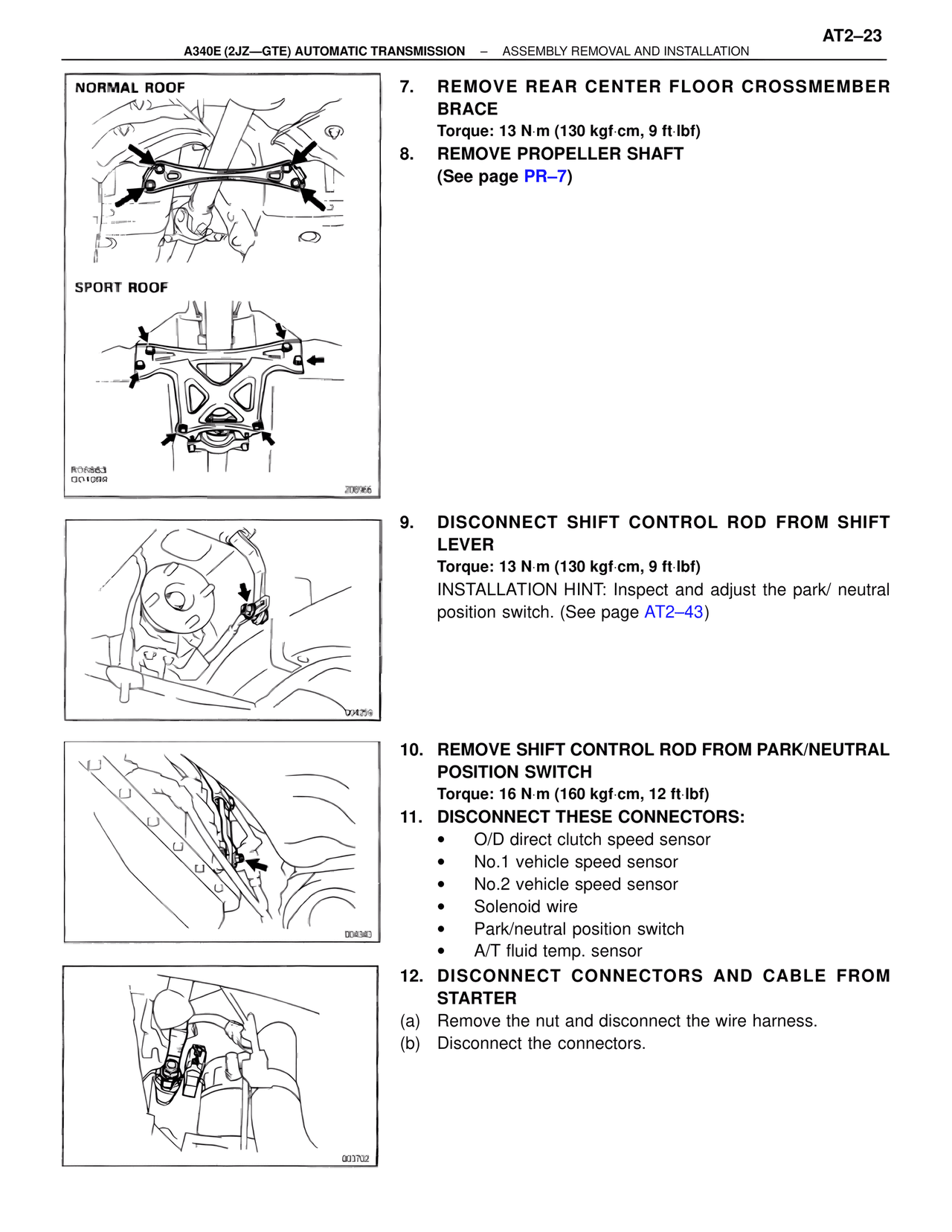

AT2–23
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION
NORMAL ROOF
SPORT ROOF
R06883
OO1098
20966
7. REMOVE REAR CENTER FLOOR CROSSMEMBER BRACE
Torque: 13 N·m (130 kgf·cm, 9 ft·lbf)
8. REMOVE PROPELLER SHAFT
(See page PR–7)
004259
9. DISCONNECT SHIFT CONTROL ROD FROM SHIFT LEVER
Torque: 13 N·m (130 kgf·cm, 9 ft·lbf)
INSTALLATION HINT: Inspect and adjust the park/ neutral position switch. (See page AT2–43)
004343
10. REMOVE SHIFT CONTROL ROD FROM PARK/NEUTRAL POSITION SWITCH
Torque: 16 N·m (160 kgf·cm, 12 ft·lbf)
11. DISCONNECT THESE CONNECTORS:
• O/D direct clutch speed sensor
• No.1 vehicle speed sensor
• No.2 vehicle speed sensor
• Solenoid wire
• Park/neutral position switch
• A/T fluid temp. sensor
003702
12. DISCONNECT CONNECTORS AND CABLE FROM STARTER
(a) Remove the nut and disconnect the wire harness.
(b) Disconnect the connectors.
