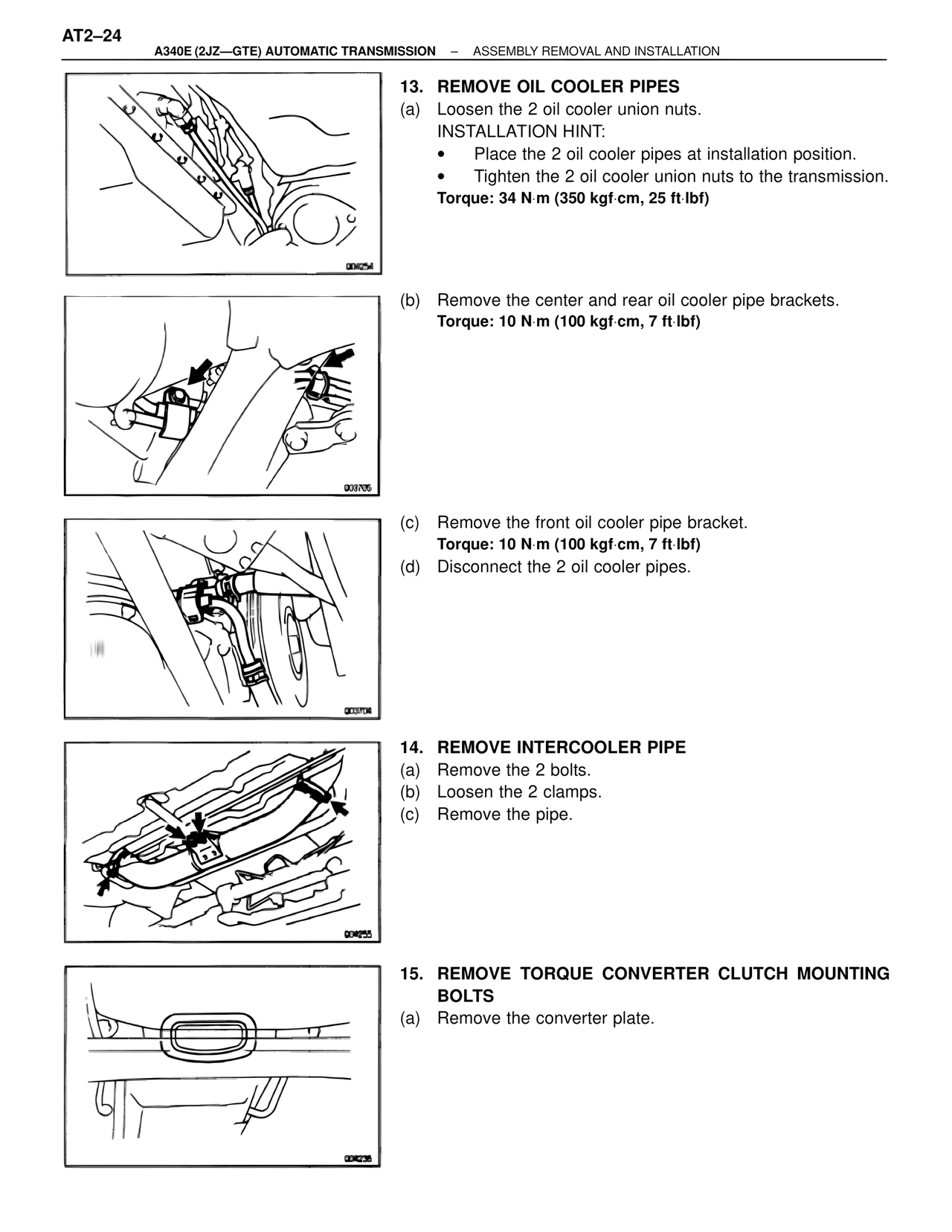

AT2–24
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION
13. REMOVE OIL COOLER PIPES
(a) Loosen the 2 oil cooler union nuts.
INSTALLATION HINT:
• Place the 2 oil cooler pipes at installation position.
• Tighten the 2 oil cooler union nuts to the transmission.
Torque: 34 N·m (350 kgf·cm, 25 ft·lbf)
(b) Remove the center and rear oil cooler pipe brackets.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
(c) Remove the front oil cooler pipe bracket.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
(d) Disconnect the 2 oil cooler pipes.
14. REMOVE INTERCOOLER PIPE
(a) Remove the 2 bolts.
(b) Loosen the 2 clamps.
(c) Remove the pipe.
15. REMOVE TORQUE CONVERTER CLUTCH MOUNTING BOLTS
(a) Remove the converter plate.
Q00254
Q03705
Q03706
Q04255
Q04236
