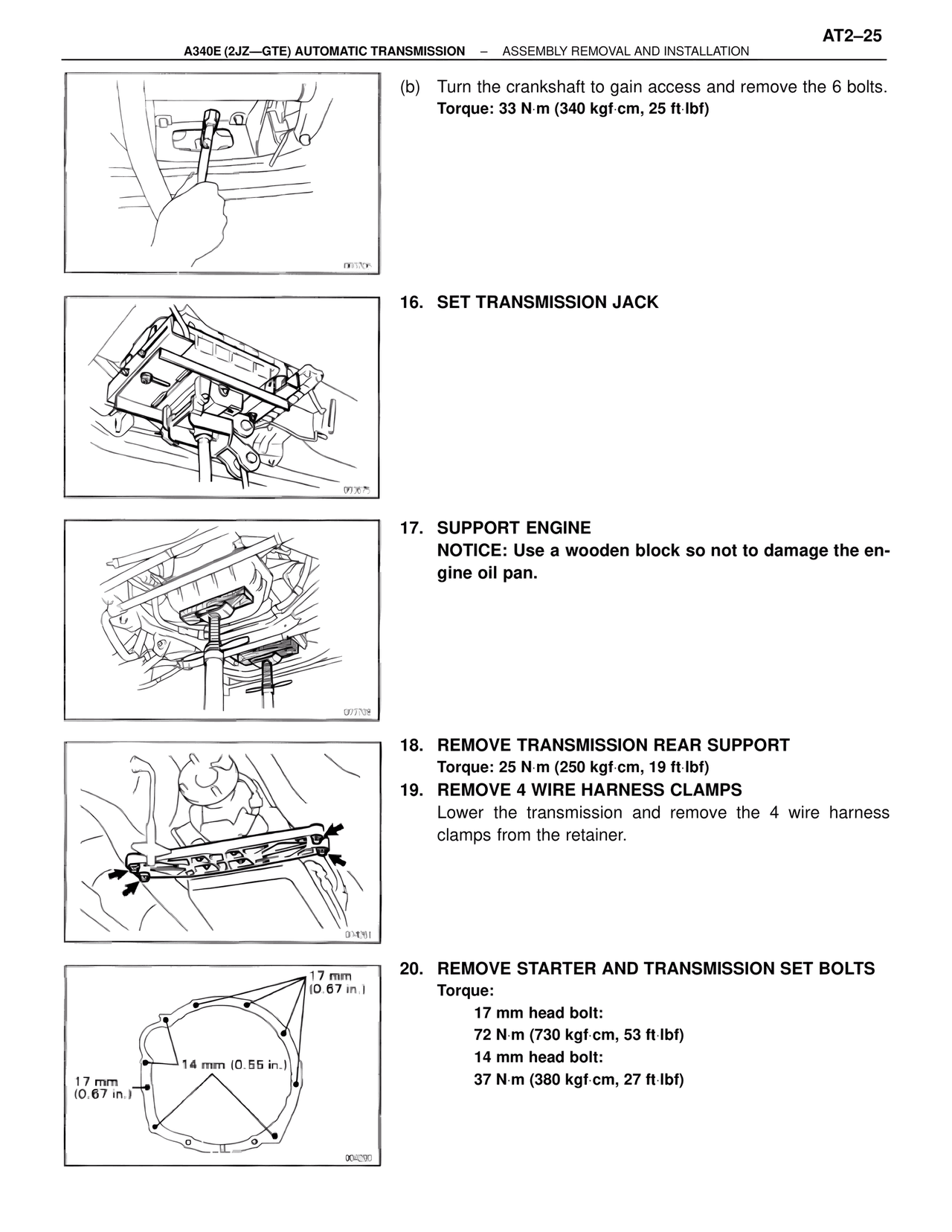

AT2–25
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION
(b) Turn the crankshaft to gain access and remove the 6 bolts.
Torque: 33 N·m (340 kgf·cm, 25 ft·lbf)
16. SET TRANSMISSION JACK
17. SUPPORT ENGINE
NOTICE: Use a wooden block so not to damage the engine oil pan.
18. REMOVE TRANSMISSION REAR SUPPORT
Torque: 25 N·m (250 kgf·cm, 19 ft·lbf)
19. REMOVE 4 WIRE HARNESS CLAMPS
Lower the transmission and remove the 4 wire harness clamps from the retainer.
20. REMOVE STARTER AND TRANSMISSION SET BOLTS
Torque:
17 mm head bolt:
72 N·m (730 kgf·cm, 53 ft·lbf)
14 mm head bolt:
37 N·m (380 kgf·cm, 27 ft·lbf)
17 mm (0.67 in.)
14 mm (0.55 in.)
17 mm (0.67 in.)
