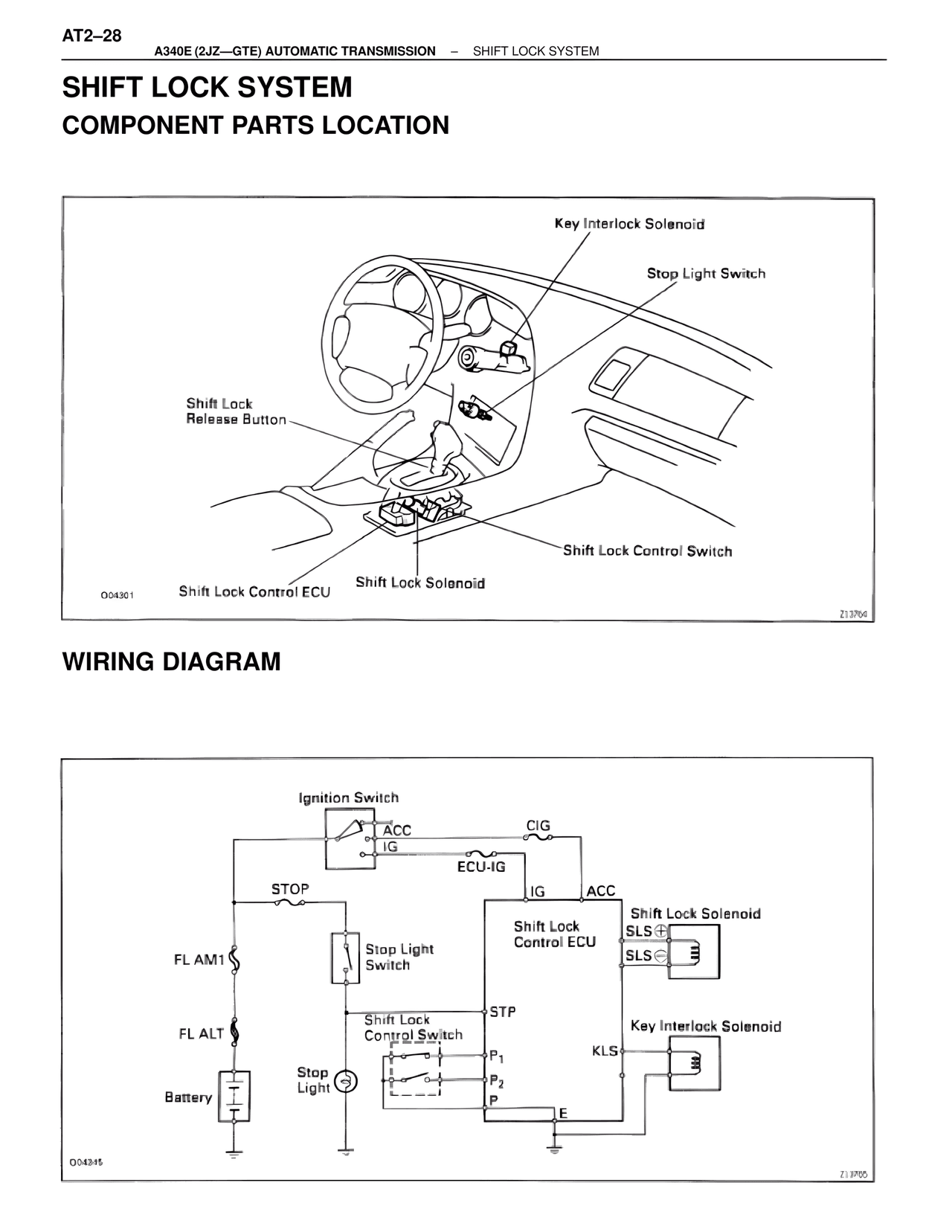

ATTE/A340 Automatic Trans (GTE) — Shift Lock System Component Parts Location, page 28

AT2–28
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – SHIFT LOCK SYSTEM

SHIFT LOCK SYSTEM
COMPONENT PARTS LOCATION

Key Interlock Solenoid
Stop Light Switch
Shift Lock
Release Button
Shift Lock Control Switch
O04301
Shift Lock Control ECU
Shift Lock Solenoid
Z13756

WIRING DIAGRAM

Ignition Switch
ACC
CIG
IG
ECU-IG
STOP
IG
ACC
Shift Lock Solenoid
Shift Lock
SLS+
FL AM1
Stop Light
Control ECU
SLS-
Switch
Shift Lock
STP
Key Interlock Solenoid
FL ALT
Control Switch
P1
KLS+
Battery
Stop
P2
Light
P
E
O04345
Z13755
