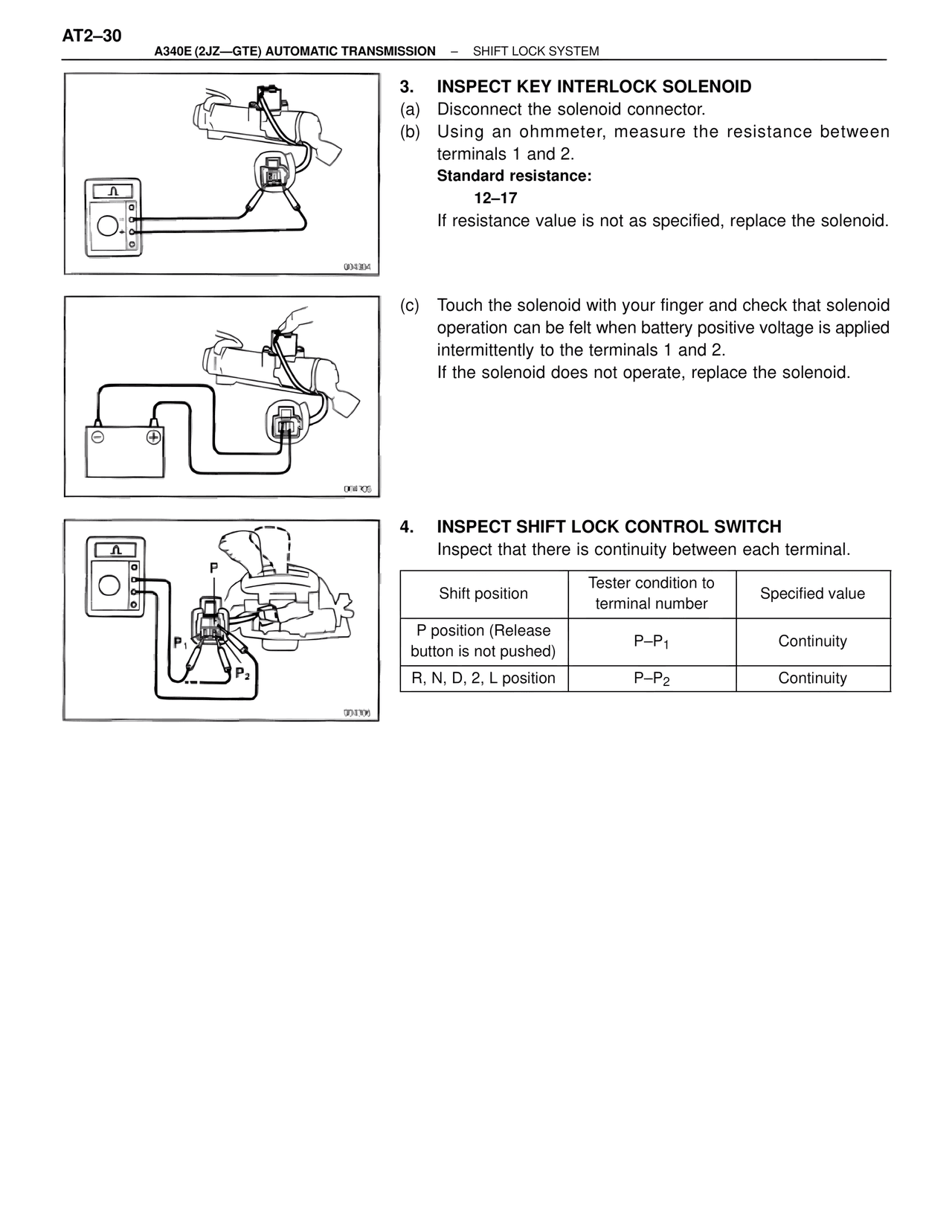

AT2–30
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – SHIFT LOCK SYSTEM
3. INSPECT KEY INTERLOCK SOLENOID
(a) Disconnect the solenoid connector.
(b) Using an ohmmeter, measure the resistance between
terminals 1 and 2.
Standard resistance:
12–17
If resistance value is not as specified, replace the solenoid.
(c) Touch the solenoid with your finger and check that solenoid
operation can be felt when battery positive voltage is applied
intermittently to the terminals 1 and 2.
If the solenoid does not operate, replace the solenoid.
4. INSPECT SHIFT LOCK CONTROL SWITCH
Inspect that there is continuity between each terminal.
Shift position | Tester condition to terminal number | Specified value
P position (Release button is not pushed) | P–P1 | Continuity
R, N, D, 2, L position | P–P2 | Continuity
004304
004305
004306
