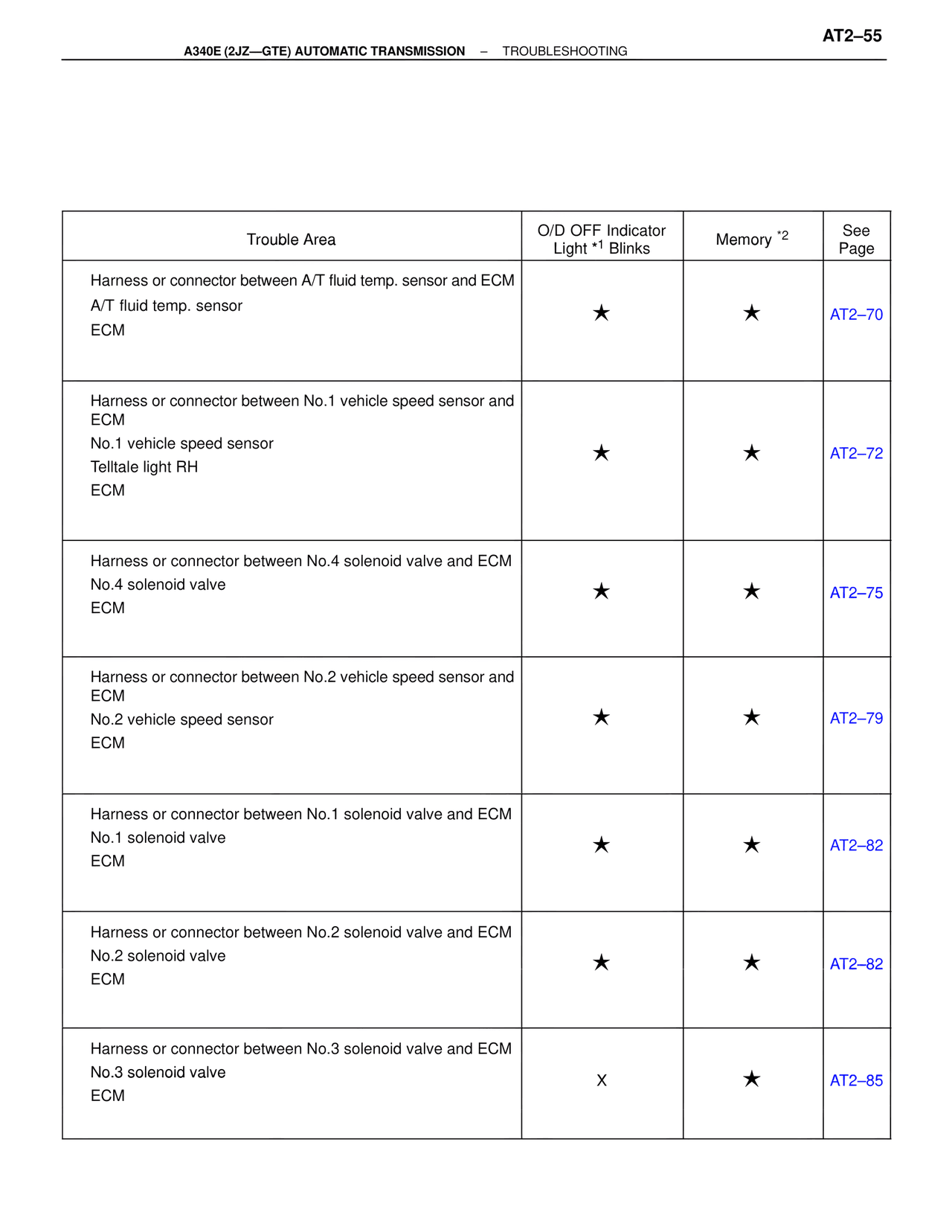

AT2–55
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
Trouble Area | O/D OFF Indicator Light *1 Blinks | Memory *2 | See Page
Harness or connector between A/T fluid temp. sensor and ECM
A/T fluid temp. sensor
ECM
★ | ★ | AT2–70
Harness or connector between No.1 vehicle speed sensor and ECM
No.1 vehicle speed sensor
Telltale light RH
ECM
★ | ★ | AT2–72
Harness or connector between No.4 solenoid valve and ECM
No.4 solenoid valve
ECM
★ | ★ | AT2–75
Harness or connector between No.2 vehicle speed sensor and ECM
No.2 vehicle speed sensor
ECM
★ | ★ | AT2–79
Harness or connector between No.1 solenoid valve and ECM
No.1 solenoid valve
ECM
★ | ★ | AT2–82
Harness or connector between No.2 solenoid valve and ECM
No.2 solenoid valve
ECM
★ | ★ | AT2–82
Harness or connector between No.3 solenoid valve and ECM
No.3 solenoid valve
ECM
X | ★ | AT2–85
