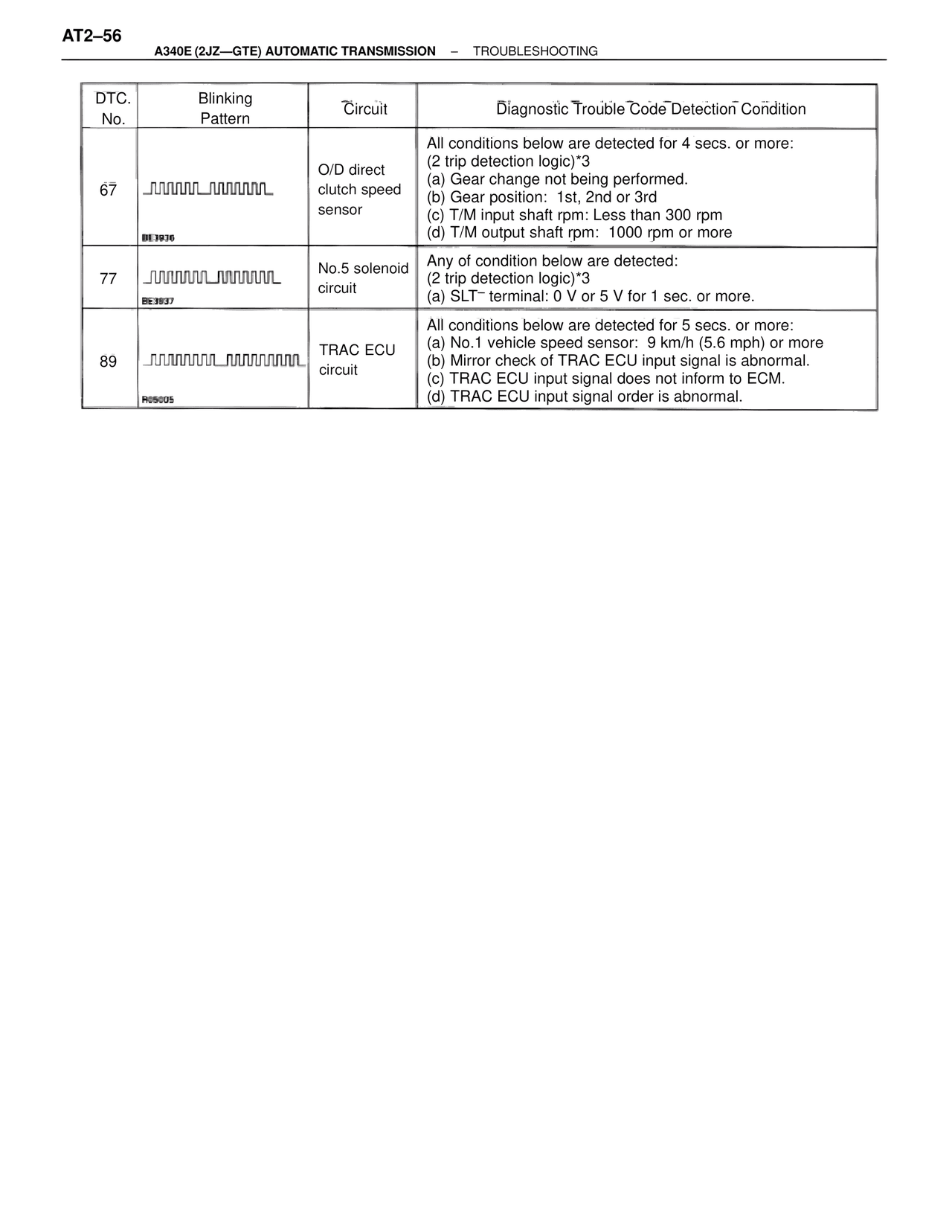

AT2–56
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
DTC. No. | Blinking Pattern | Circuit | Diagnostic Trouble Code Detection Condition
67 | BE3936 | O/D direct clutch speed sensor | All conditions below are detected for 4 secs. or more:
(2 trip detection logic)*3
(a) Gear change not being performed.
(b) Gear position: 1st, 2nd or 3rd
(c) T/M input shaft rpm: Less than 300 rpm
(d) T/M output shaft rpm: 1000 rpm or more
77 | BE3937 | No.5 solenoid circuit | Any of condition below are detected:
(2 trip detection logic)*3
(a) SLT⁻ terminal: 0 V or 5 V for 1 sec. or more.
89 | R05005 | TRAC ECU circuit | All conditions below are detected for 5 secs. or more:
(a) No.1 vehicle speed sensor: 9 km/h (5.6 mph) or more
(b) Mirror check of TRAC ECU input signal is abnormal.
(c) TRAC ECU input signal does not inform to ECM.
(d) TRAC ECU input signal order is abnormal.
