AT2–57

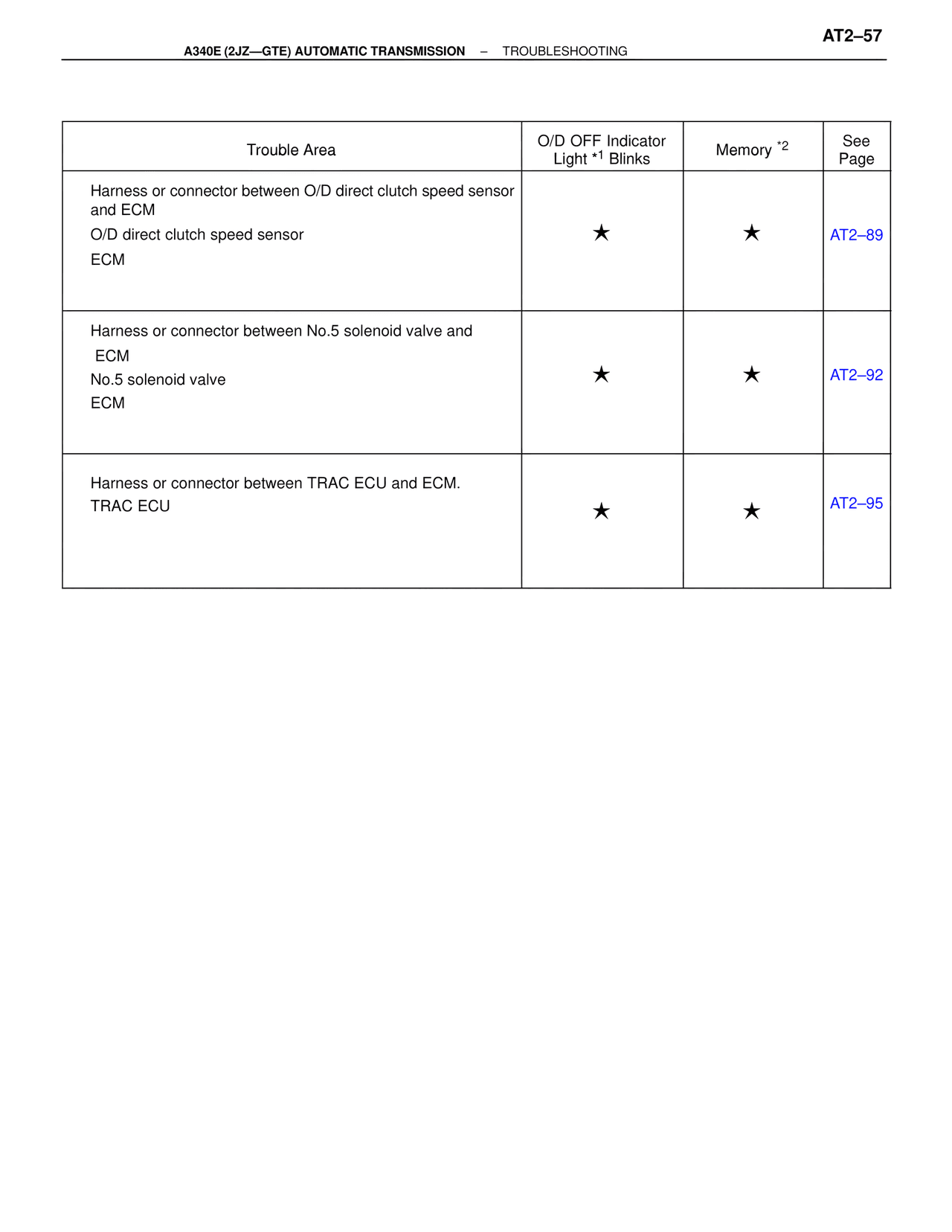

A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
Trouble Area | O/D OFF Indicator Light *1 Blinks | Memory *2 | See Page
Harness or connector between O/D direct clutch speed sensor and ECM
O/D direct clutch speed sensor
ECM
★ | ★ | AT2–89
Harness or connector between No.5 solenoid valve and ECM
No.5 solenoid valve
ECM
★ | ★ | AT2–92
Harness or connector between TRAC ECU and ECM.
TRAC ECU
★ | ★ | AT2–95
