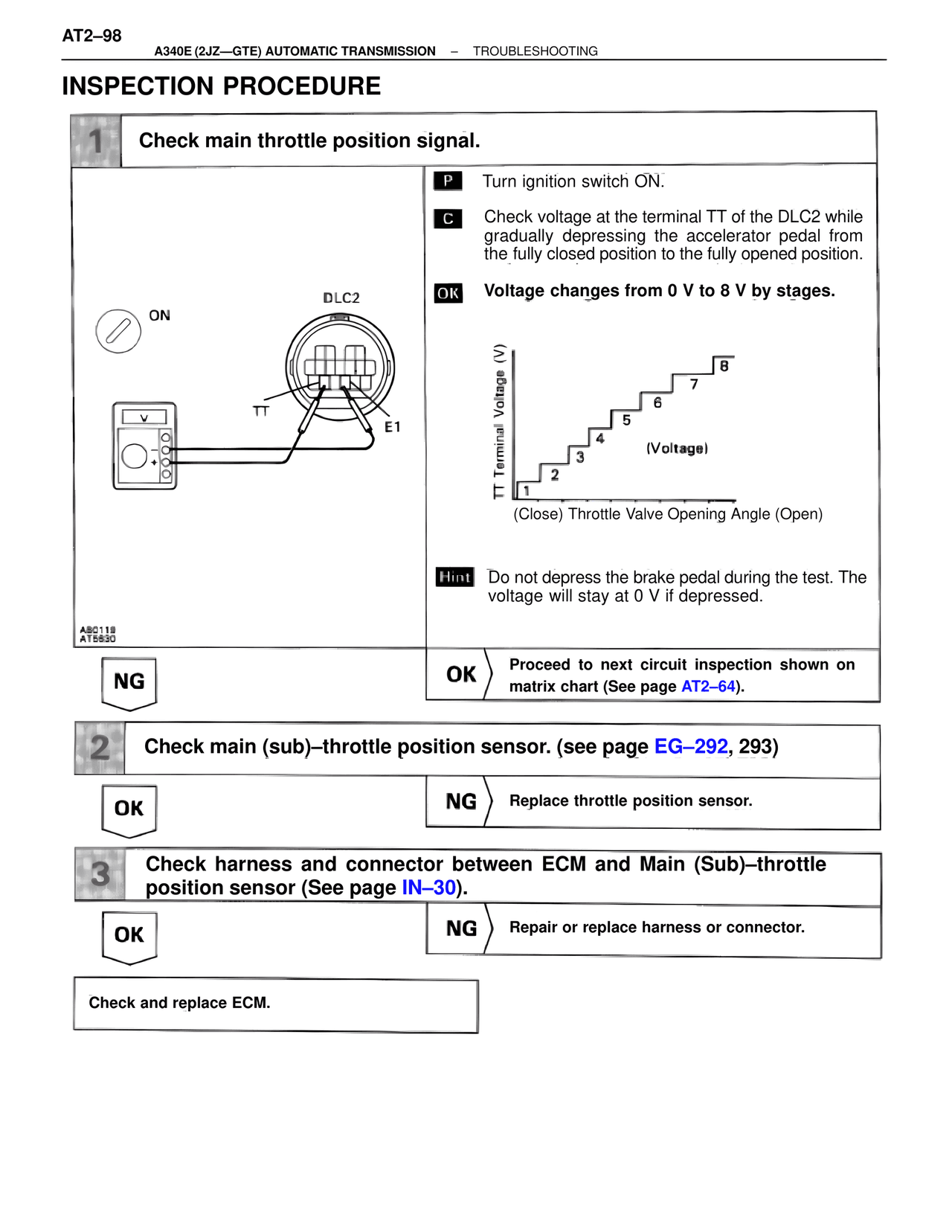

AT2–98
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
INSPECTION PROCEDURE
1 Check main throttle position signal.
P Turn ignition switch ON.
C Check voltage at the terminal TT of the DLC2 while
gradually depressing the accelerator pedal from
the fully closed position to the fully opened position.
OK Voltage changes from 0 V to 8 V by stages.
T Terminal Voltage (V)
8
7
6
5
4
3
2
1
(Voltage)
(Close) Throttle Valve Opening Angle (Open)
Hint Do not depress the brake pedal during the test. The
voltage will stay at 0 V if depressed.
ON
DLC2
TT
E1
A80119
AT5830
NG
OK Proceed to next circuit inspection shown on
matrix chart (See page AT2–64).
2 Check main (sub)–throttle position sensor. (see page EG–292, 293)
OK
NG Replace throttle position sensor.
3 Check harness and connector between ECM and Main (Sub)–throttle
position sensor (See page IN–30).
OK
NG Repair or replace harness or connector.
Check and replace ECM.
