A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING

Kick–down Switch Circuit

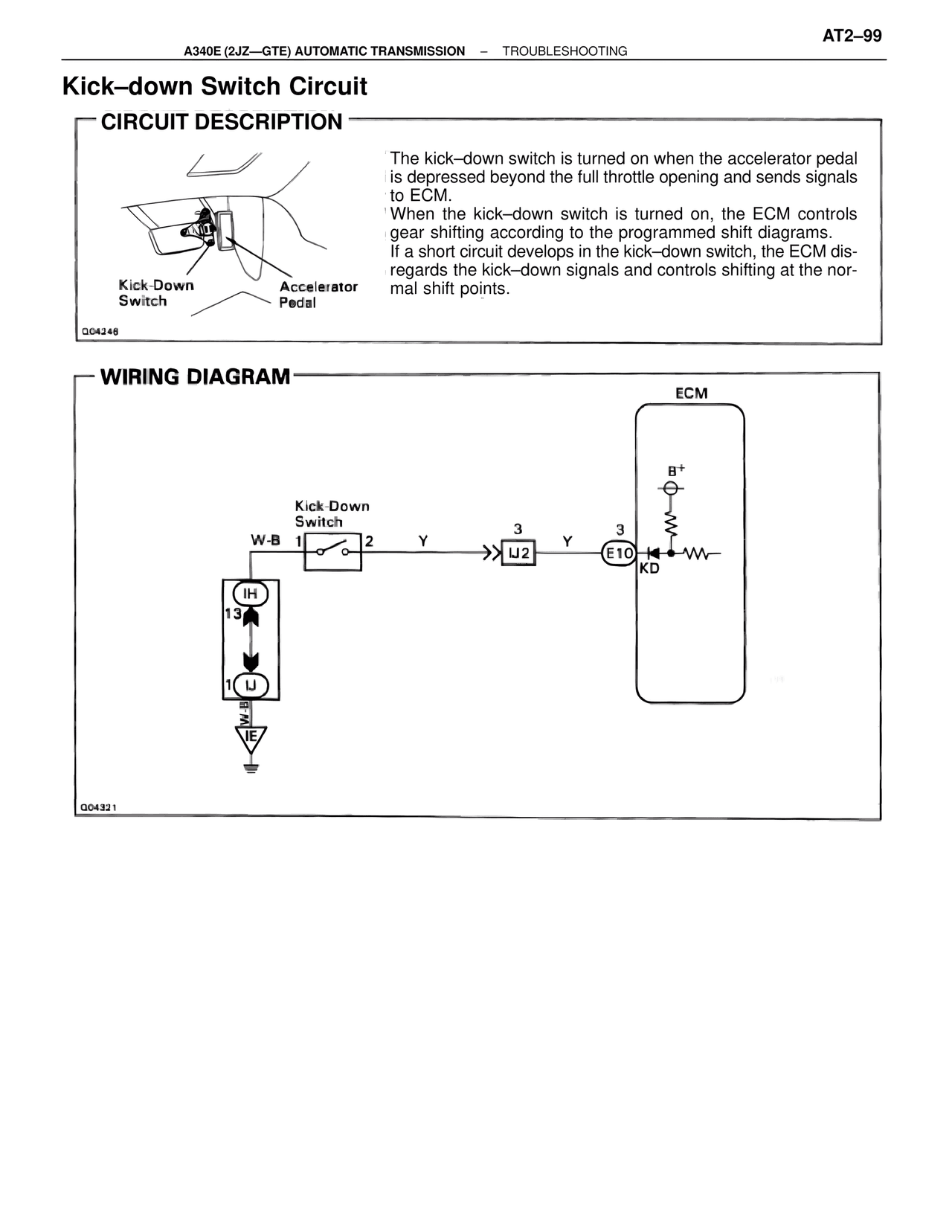

CIRCUIT DESCRIPTION

Kick-Down
Switch

Accelerator
Pedal

Q04248

The kick–down switch is turned on when the accelerator pedal
is depressed beyond the full throttle opening and sends signals
to ECM.
When the kick–down switch is turned on, the ECM controls
gear shifting according to the programmed shift diagrams.
If a short circuit develops in the kick–down switch, the ECM dis-
regards the kick–down signals and controls shifting at the nor-
mal shift points.

WIRING DIAGRAM

ECM

B+

Kick-Down
Switch

W-B  1        2    Y      3        Y      3
              IJ2       E10
                              KD

IH
13

1  IJ
W-B
IE

Q04321
