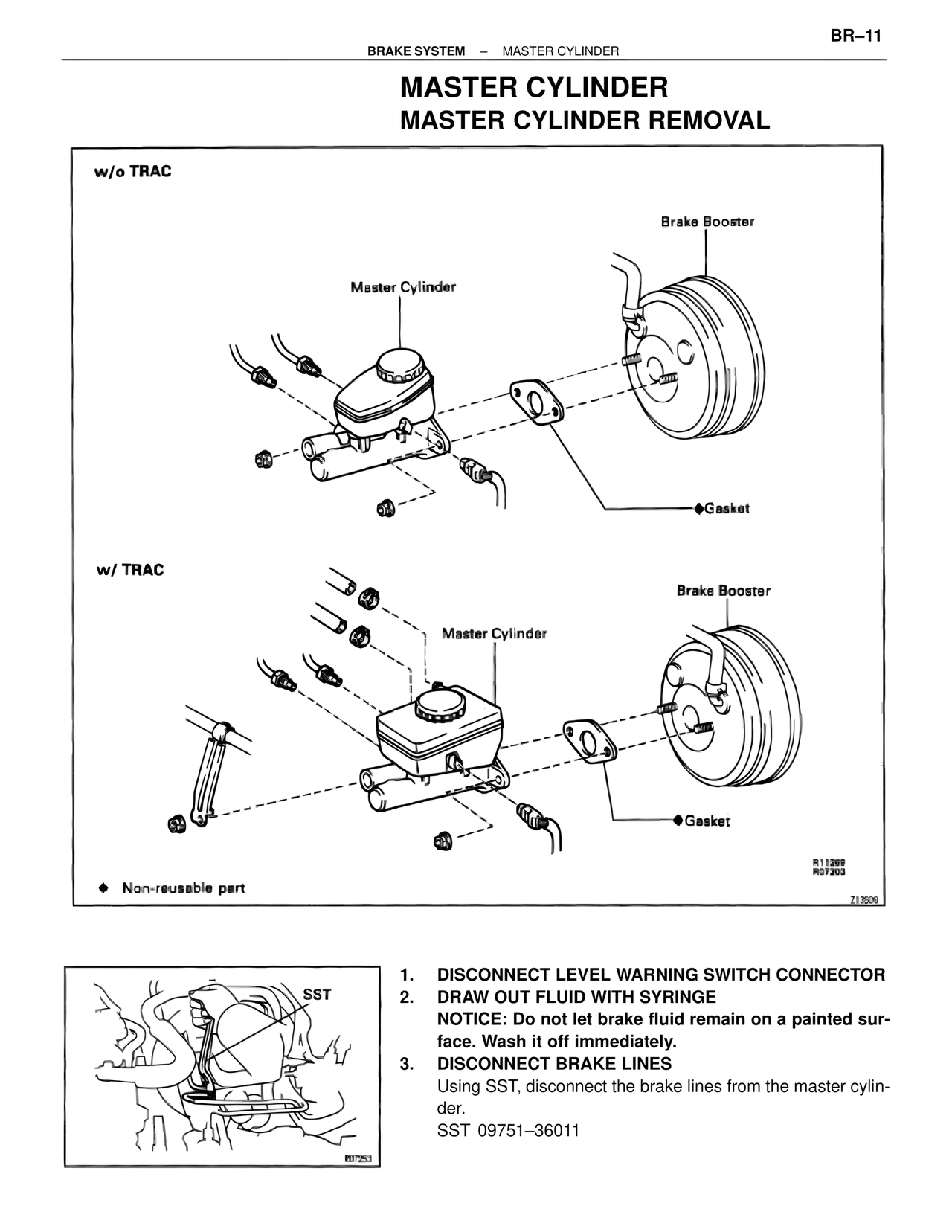

BRAKE SYSTEM – MASTER CYLINDER

MASTER CYLINDER
MASTER CYLINDER REMOVAL

w/o TRAC

Brake Booster

Master Cylinder

♦Gasket

w/ TRAC

Brake Booster

Master Cylinder

♦Gasket

R11269
R07203

Z13509

♦ Non-reusable part

SST

R07253

1. DISCONNECT LEVEL WARNING SWITCH CONNECTOR
2. DRAW OUT FLUID WITH SYRINGE
NOTICE: Do not let brake fluid remain on a painted sur-
face. Wash it off immediately.
3. DISCONNECT BRAKE LINES
Using SST, disconnect the brake lines from the master cylin-
der.
SST 09751–36011
