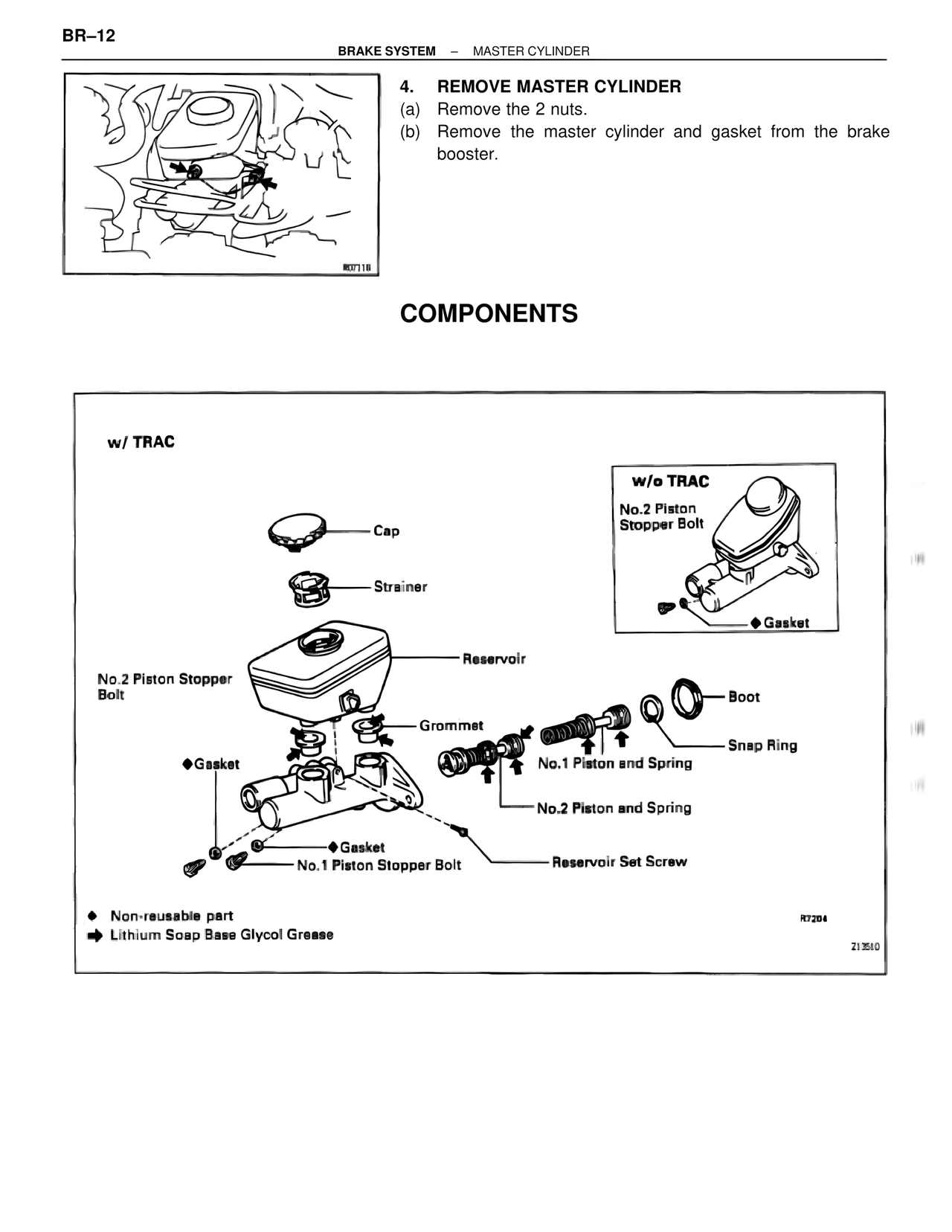

BR–12
BRAKE SYSTEM – MASTER CYLINDER
4. REMOVE MASTER CYLINDER
(a) Remove the 2 nuts.
(b) Remove the master cylinder and gasket from the brake booster.
COMPONENTS
w/ TRAC
Cap
Strainer
Reservoir
No.2 Piston Stopper Bolt
Grommet
♦Gasket
♦Gasket
No.1 Piston Stopper Bolt
Reservoir Set Screw
No.2 Piston and Spring
No.1 Piston and Spring
Snap Ring
Boot
w/o TRAC
No.2 Piston Stopper Bolt
♦Gasket
♦ Non-reusable part
➡ Lithium Soap Base Glycol Grease
R7204
Z13560
