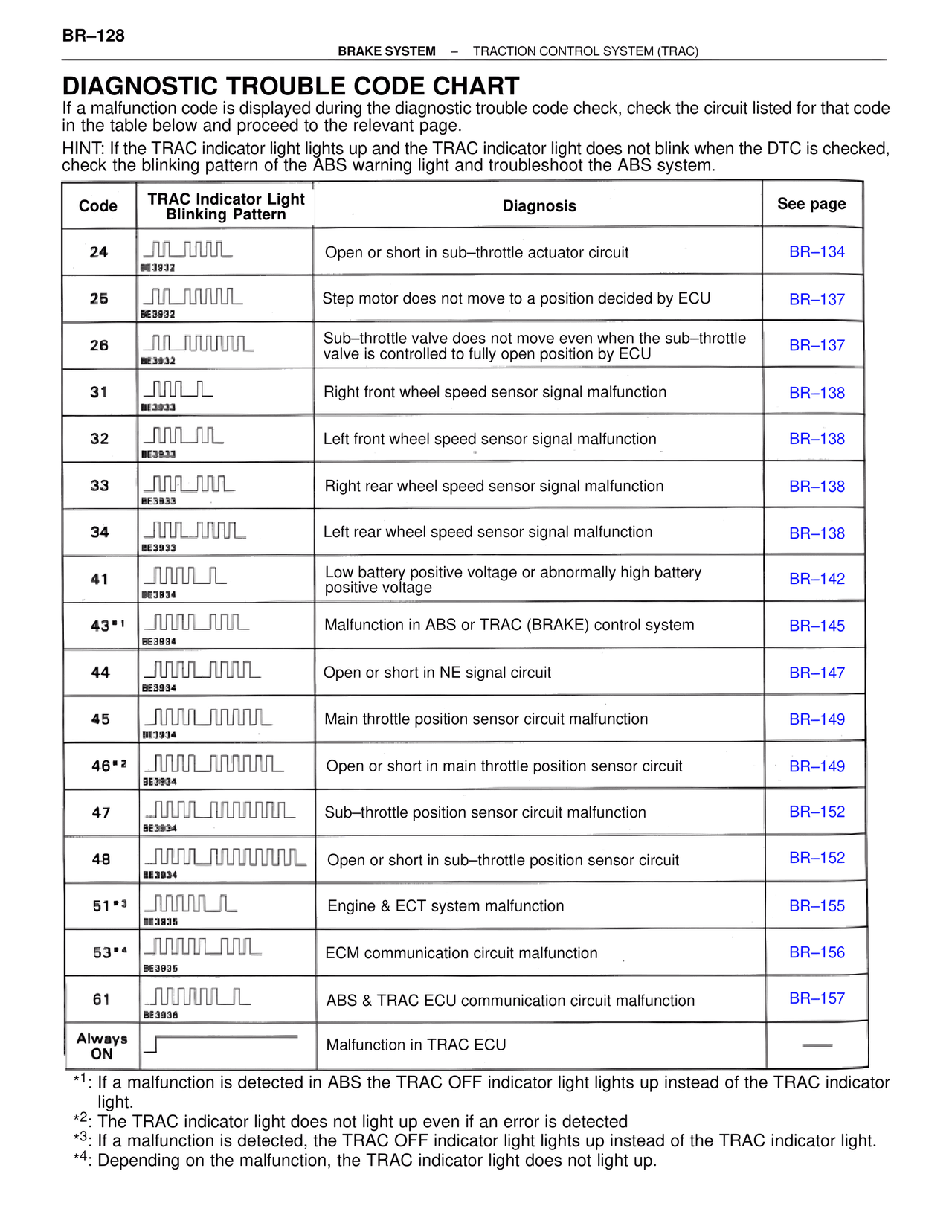

BRAKE SYSTEM – TRACTION CONTROL SYSTEM (TRAC)
DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the diagnostic trouble code check, check the circuit listed for that code in the table below and proceed to the relevant page.
HINT: If the TRAC indicator light lights up and the TRAC indicator light does not blink when the DTC is checked, check the blinking pattern of the ABS warning light and troubleshoot the ABS system.
Code | TRAC Indicator Light Blinking Pattern | Diagnosis | See page
24 | BE3932 | Open or short in sub–throttle actuator circuit | BR–134
25 | BE3932 | Step motor does not move to a position decided by ECU | BR–137
26 | BE3932 | Sub–throttle valve does not move even when the sub–throttle valve is controlled to fully open position by ECU | BR–137
31 | BE3933 | Right front wheel speed sensor signal malfunction | BR–138
32 | BE3933 | Left front wheel speed sensor signal malfunction | BR–138
33 | BE3933 | Right rear wheel speed sensor signal malfunction | BR–138
34 | BE3933 | Left rear wheel speed sensor signal malfunction | BR–138
41 | BE3934 | Low battery positive voltage or abnormally high battery positive voltage | BR–142
43*1 | BE3934 | Malfunction in ABS or TRAC (BRAKE) control system | BR–145
44 | BE3934 | Open or short in NE signal circuit | BR–147
45 | BE3934 | Main throttle position sensor circuit malfunction | BR–149
46*2 | BE3934 | Open or short in main throttle position sensor circuit | BR–149
47 | BE3934 | Sub–throttle position sensor circuit malfunction | BR–152
48 | BE3934 | Open or short in sub–throttle position sensor circuit | BR–152
51*3 | BE3935 | Engine & ECT system malfunction | BR–155
53*4 | BE3935 | ECM communication circuit malfunction | BR–156
61 | BE3936 | ABS & TRAC ECU communication circuit malfunction | BR–157
Always ON | | Malfunction in TRAC ECU | —
*1: If a malfunction is detected in ABS the TRAC OFF indicator light lights up instead of the TRAC indicator light.
*2: The TRAC indicator light does not light up even if an error is detected
*3: If a malfunction is detected, the TRAC OFF indicator light lights up instead of the TRAC indicator light.
*4: Depending on the malfunction, the TRAC indicator light does not light up.
