BR–144
BRAKE SYSTEM – TRACTION CONTROL SYSTEM (TRAC)

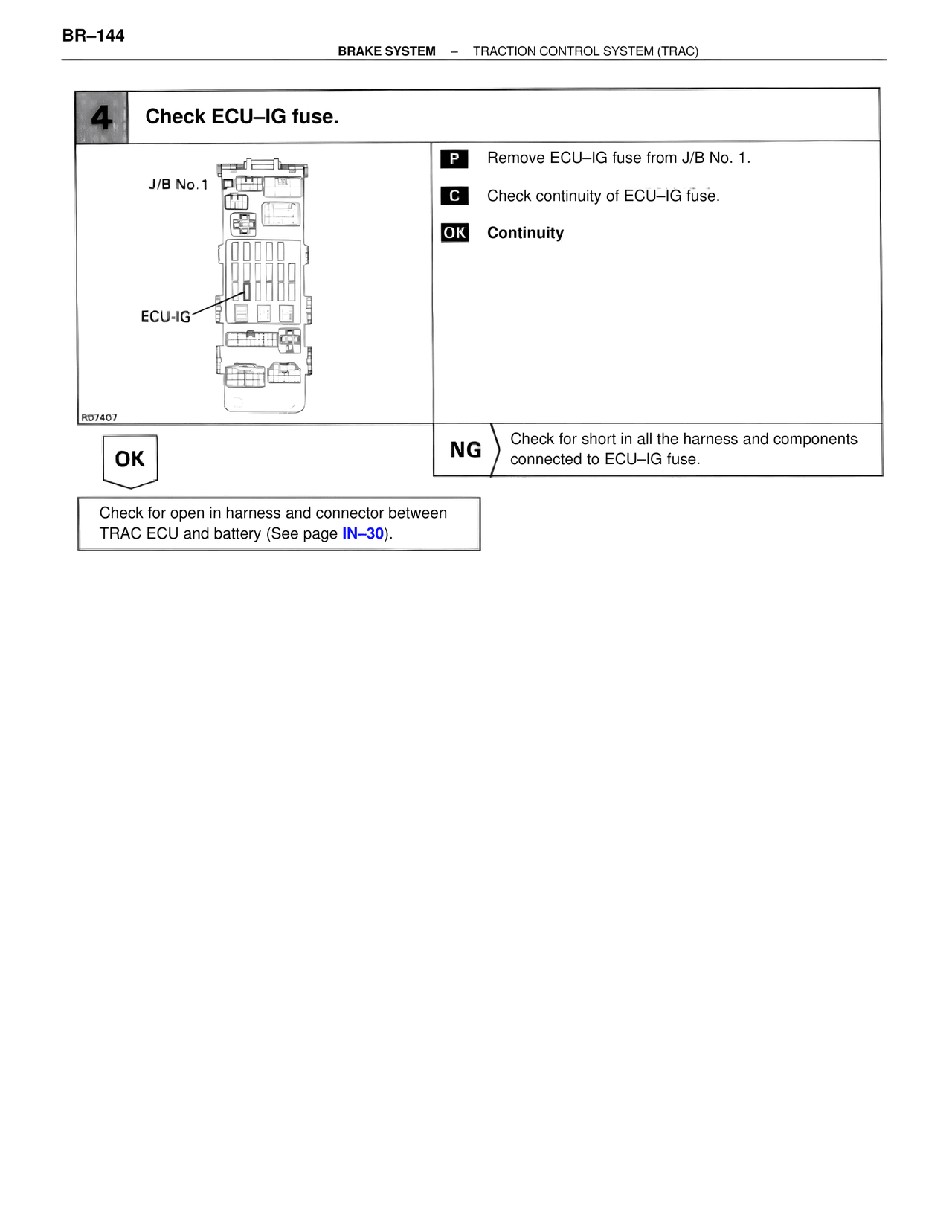

4    Check ECU–IG fuse.

J/B No.1

ECU-IG

R07407

P    Remove ECU–IG fuse from J/B No. 1.

C    Check continuity of ECU–IG fuse.

OK   Continuity

OK

NG    Check for short in all the harness and components
      connected to ECU–IG fuse.

Check for open in harness and connector between
TRAC ECU and battery (See page IN–30).
